Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

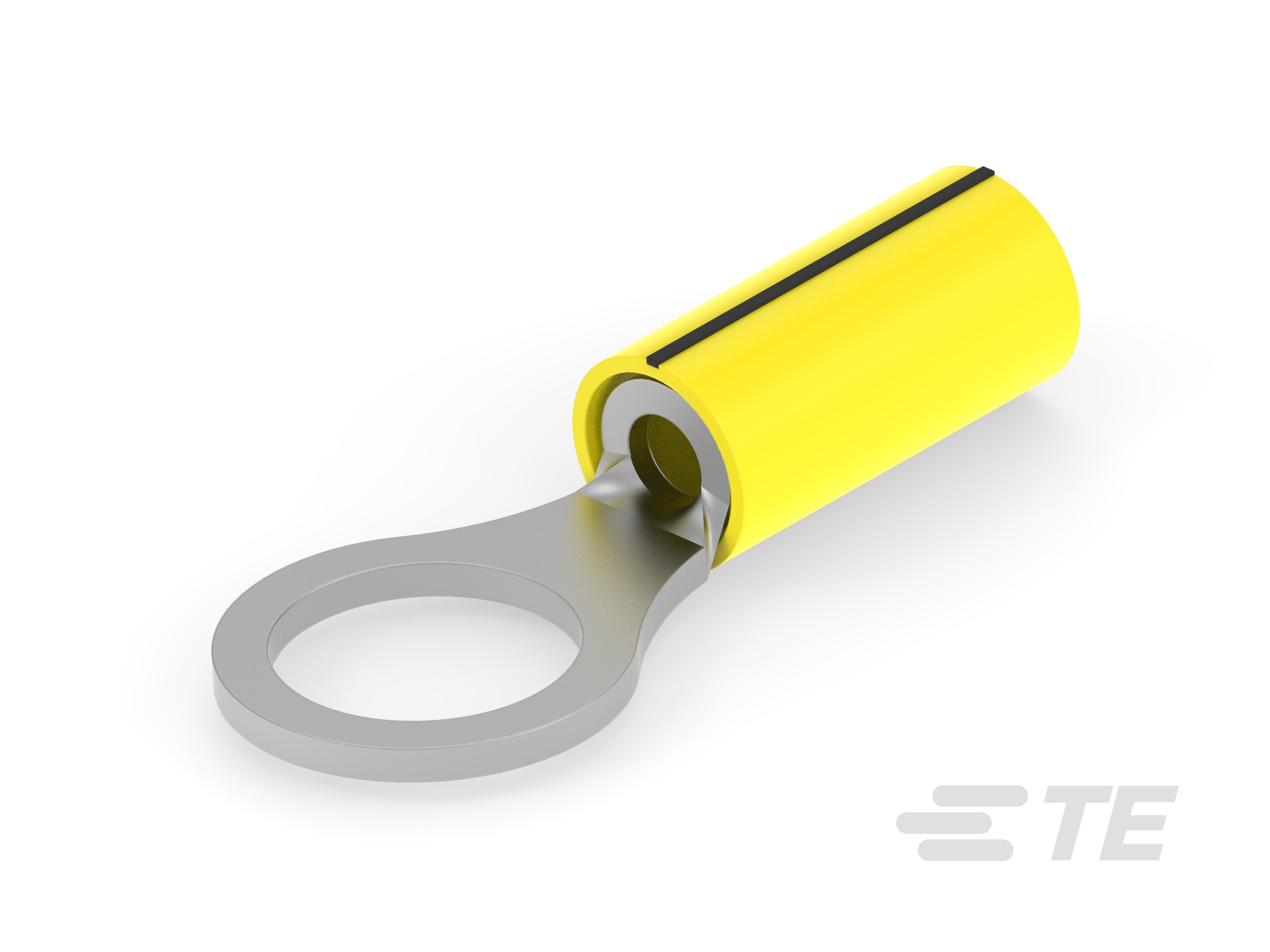

• Ring Terminal Product Type : Closed Ring Tongue Terminal

• Stud Size : 3/8

• Sealable : No

• Wire Insulation Support Retention Type : Insulation Support

• Terminal Features : Heavy Duty

• Wire Size (AWG): 16 – 14

• Wire Size (mm²): 1.3 – 2

• Wire Size (CMA): 2050 – 5180

• Stud Diameter : 9.91 mm [ .39 in ]

• Tongue Thickness : .79 mm [ .031 in ]

• Product Length : 32.9 mm [ 1.296 in ]

• Compatible Insulation Diameter (Max) : 5.84 mm [ .23 in ]

• Compatible Insulation Diameter Range : 3.81 – 5.84 mm [ .15 – .23 in ]

• Barrel Type : Closed

• Terminal Orientation : Straight

• Terminal Plating Material : Tin

• Insulation Option : Partially Insulated

• Operating Temperature Range : 105 °C [ 221 °F ]

• Compatible With Wire Base Material : Copper

• Compatible With Wire Plating Material : Tin

• Packaging Method : Tape Mounted

• Packaging Quantity : 2500

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Number of Holes : 1

• Voltage Rating (V): 300

• Stripe Color : Black

• Insulation Sleeve Color : Yellow

• Product Weight (g): 4.889

• Wire Insulation Support : With
