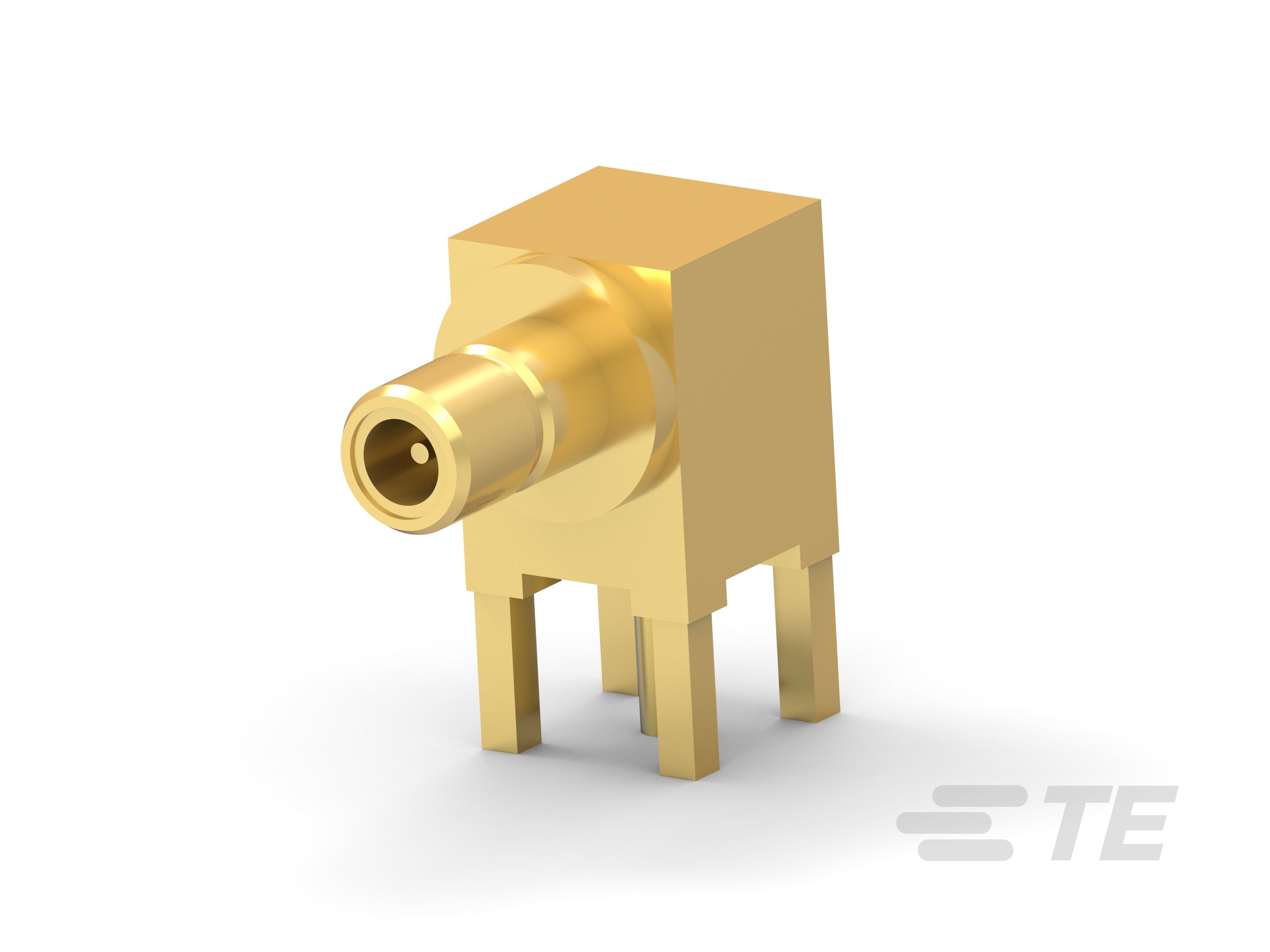

• Connector Product Type : Connector Assembly

• Connector Shape : Rectangular

• RF Interface : SMB

• RF Connector Style : Jack

• Connector System : Cable-to-Board

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• PCB Mount Orientation : Right Angle

• Number of Positions : 1

• Number of Coaxial Contacts : 1

• Impedance (Ω): 50, 75

• Body Material : Brass

• Body Plating Material : Nickel

• RF Connector Center Contact Underplating Material : Nickel

• RF Connector Center Contact Plating Material : Gold (Au)

• RF Connector Center Contact Material : Beryllium Copper

• Termination Post & Tail Length : 3.94 mm [ .155 in ]

• Termination Method to PCB : Through Hole - Solder

• RF Connector Coupling Mechanism : Quick Connect/Disconnect

• Connector Mounting Type : Board Mount

• RF Contact Captivation Method : Mechanical

• Detent : Without

• Profile Height from PCB : 6.99 mm [ .275 in ]

• RF Connector Mated Outer Diameter (Approximate) : 4.75 mm [ .187 in ]

• Operating Temperature Range : -65 – 165 °C [ -85 – 329 °F ]

• Operating Frequency (GHz): 4

• Packaging Method : Bag
