Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

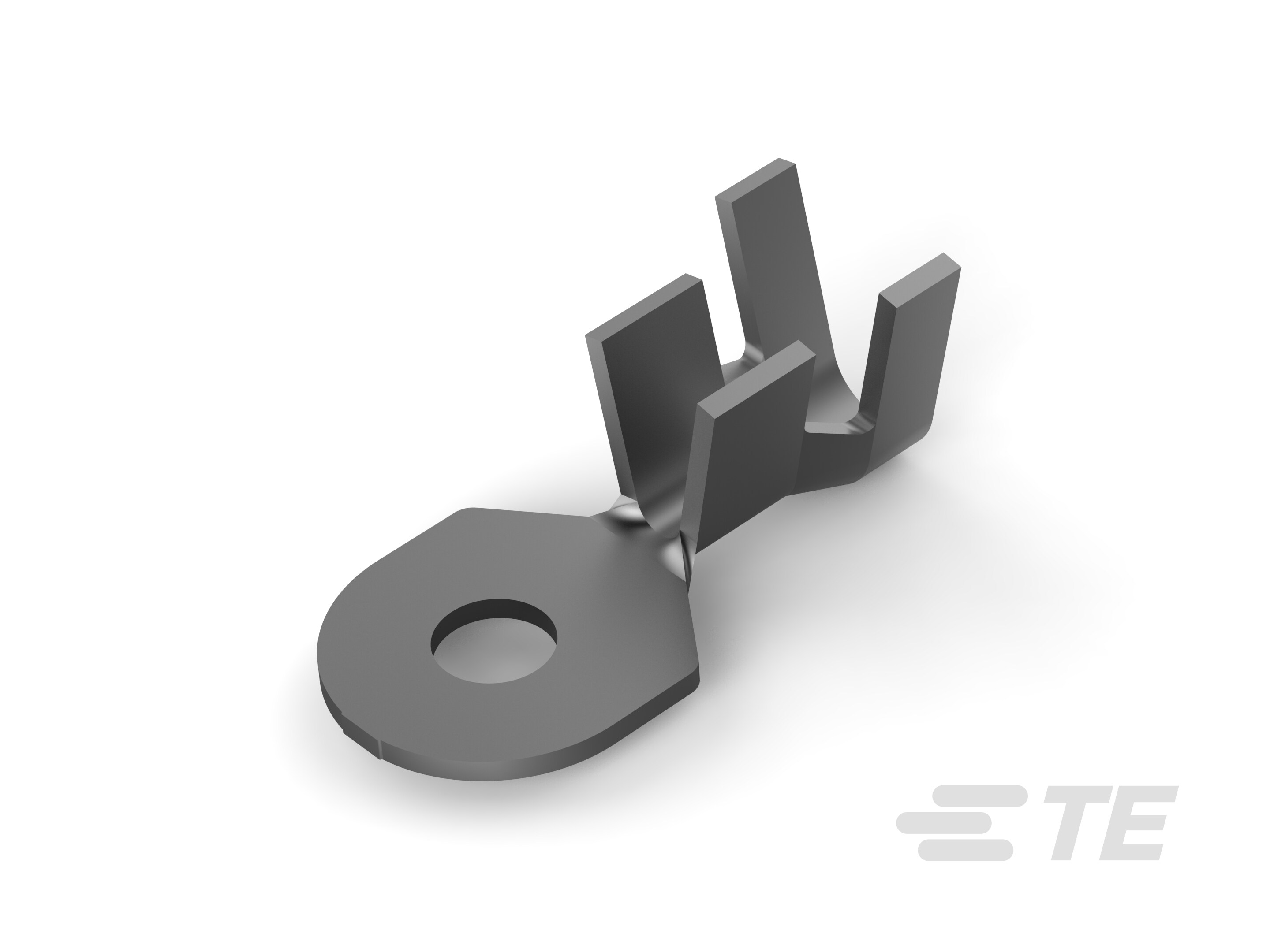

• Shape Description : D Shaped

• Ring Terminal Product Type : Closed Ring Tongue Terminal

• Stud Size : 10

• Sealable : No

• Compatible With Discrete Wire Type : Stranded

• Wire Insulation Support Retention Type : Insulation Support

• Number of Holes : 1

• Product Weight (g): 4.304

• Contact Base Material : Copper

• Barrel Type : Open

• Terminal Orientation : Straight

• Terminal Plating Material : Tin

• Contact Underplating Material : Nickel

• Wire Insulation Support : With

• Compatible Insulation Diameter (Min) (in): .22

• Wire Size (AWG): 10 – 8

• Wire Size (mm²): 5 – 8

• Wire Size (CMA): 10382 – 16507

• Stud Diameter : 5 mm [ .19 in ]

• Tongue Thickness : 1.27 mm [ .05 in ]

• Product Length : 28.19 mm [ 1.11 in ]

• Barrel Inside Diameter (mm): 3.55, 4.57

• Barrel Inside Diameter (in): .13, .27

• Compatible Insulation Diameter (Max) : 8 mm [ .315 in ]

• Compatible Insulation Diameter Range : 5.59 – 8 mm [ .22 – .315 in ]

• Insulation Option : Uninsulated

• Operating Temperature Range : -40 – 110 °C [ -40 – 230 °F ]

• Compatible With Wire Base Material : Copper

• Government Qualified Terminal : No
