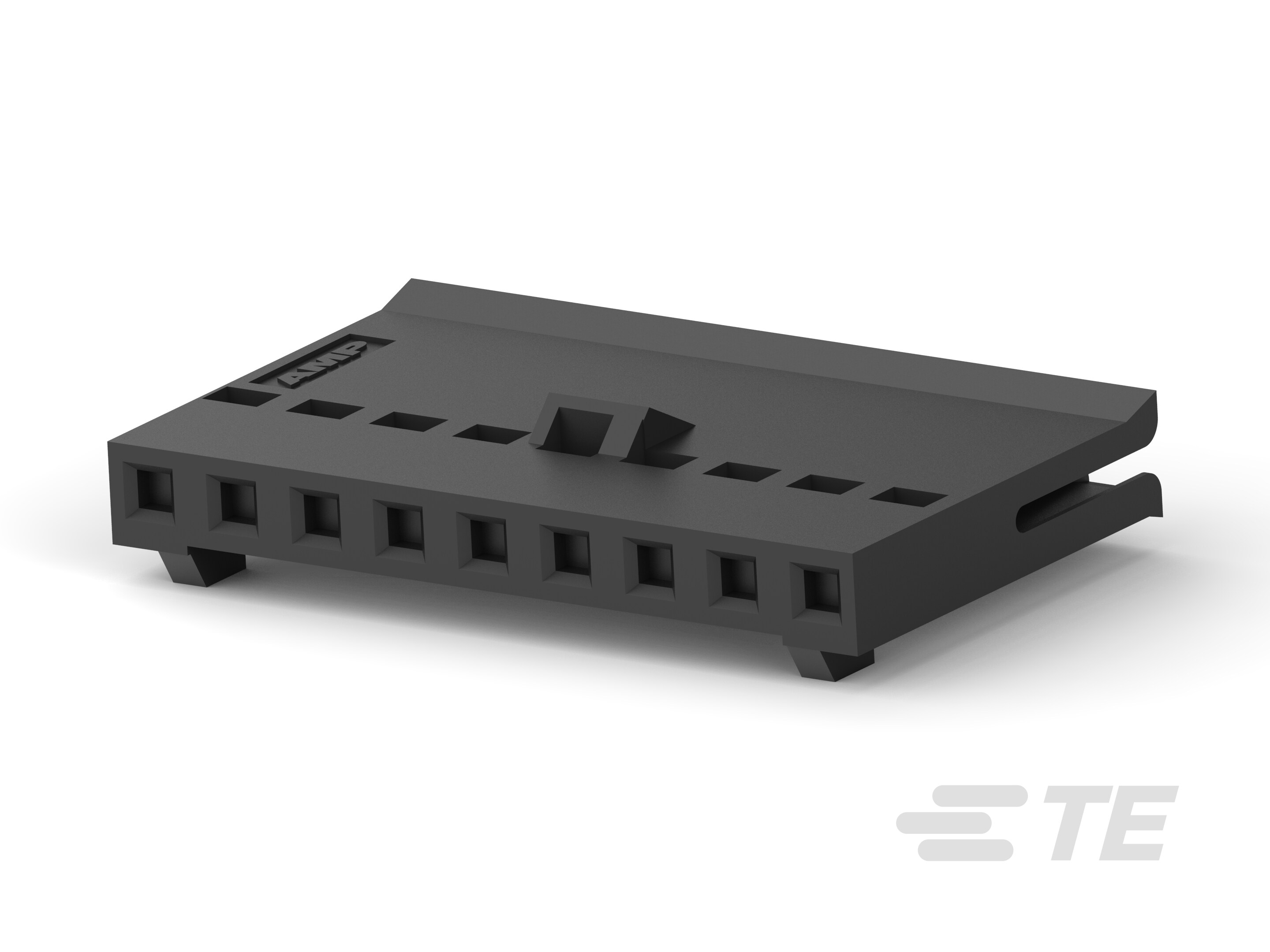

487769-7
Housing, Wire-to-Board, 9 Position, 2.54 mm [.1 in] Centerline, 1 Row, Socket, Package, Normal, Straight, Black, FFC Connectors
487769-7
Housing, Wire-to-Board, 9 Position, 2.54 mm [.1 in] Centerline, 1 Row, Socket, Package, Normal, Straight, Black, FFC Connectors
- TE Internal #: 487769-7
- TE Internal Description: 009 HOUSING FFC RCPT 100CL SR
- All 2.54mm FFC Connectors Receptacle Housing (143)
-
FFC Connector Product Type : Housing
-
Connector System : Wire-to-Board
-
Number of Positions : 9
-
Centerline (Pitch) : 2.54 mm [ .1 in ]
-
Number of Rows : 1
Documents
Product Drawings
- HOUSING, RECEPTACLE, DETENT, POLARIZED, FFC ENG_CD_487769_S.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_487769-7_W.pdf 3D
- Customer View Model ENG_CVM_CVM_487769-7_W.2d_dxf.zip English
- ENG_CVM_CVM_487769-7_W.3d_igs.zip English
- ENG_CVM_CVM_487769-7_W.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-16015_P.pdf English
- Product Specification ENG_SS_108-9024_L.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-7916_O.pdf English
- S_408-7916_O.tif English
