Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

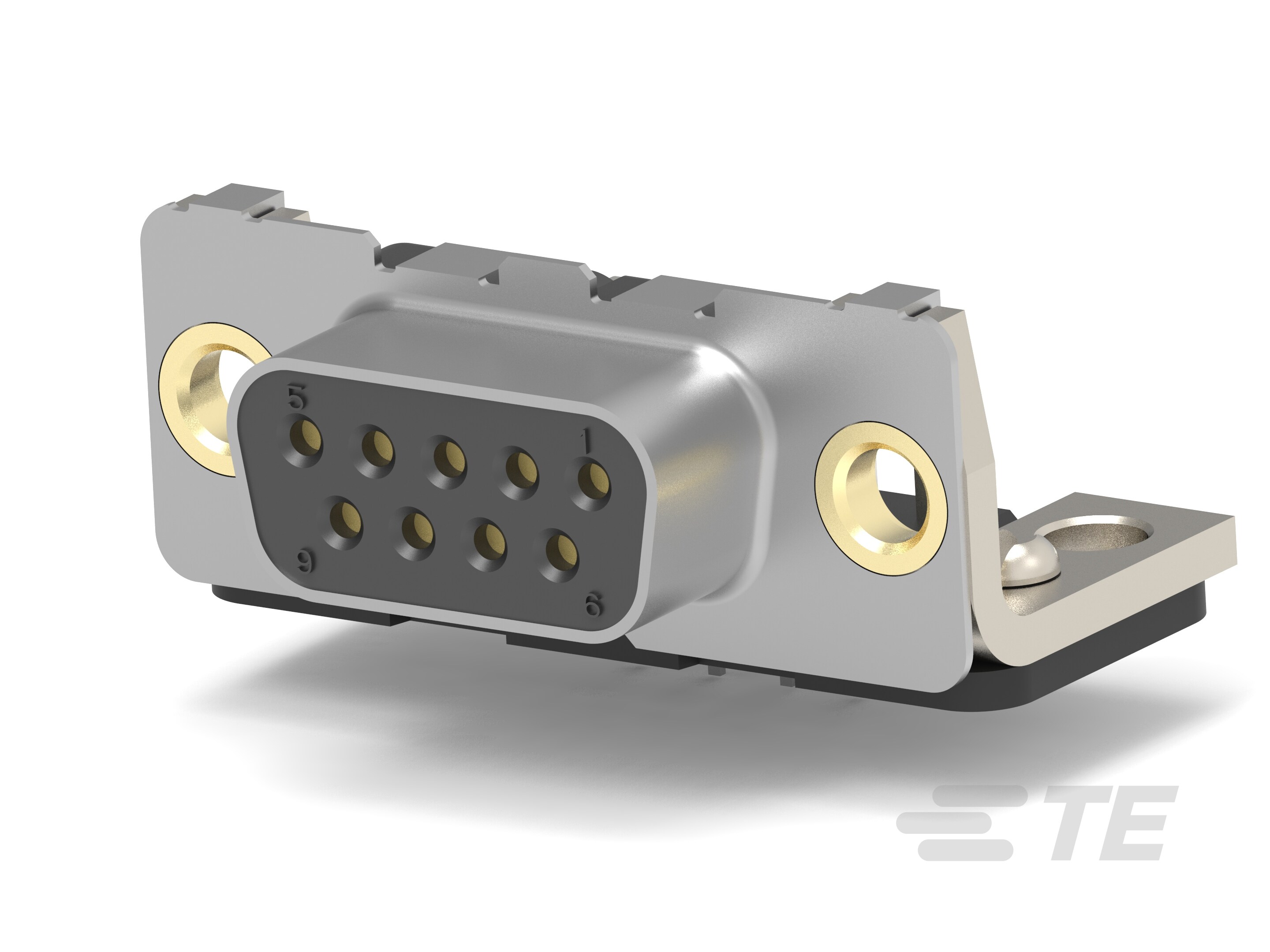

• Connector & Housing Type : Receptacle

• Connector System : Cable-to-Board

• Connector Shell Size : 1

• Connector & Contact Terminates To : Printed Circuit Board

• Shell Material Configuration : Front Metal Shell

• Ground Feature Type : Grounding Straps

• Number of Positions : 9

• Number of Rows : 2

• PCB Mount Orientation : Right Angle

• Centerline (Pitch) : 2.74 mm [ .108 in ]

• Shell Material : Steel

• Housing Material : Polyester GF

• Row-to-Row Spacing : 2.54 mm [ .1 in ]

• PCB Thickness (Recommended) : 1.57 mm [ .062 in ]

• Contact Shape & Form : Round

• Contact Current Rating (Max) (A): 6

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Phosphor Bronze

• Contact Mating Area Plating Material : Gold Flash, Gold

• Contact Options : Installed

• Contact Mating Area Plating Material Thickness (µm): .76

• Contact Underplating Material : Palladium Nickel

• Connector Profile : Standard

• Primary Product Color : Black

• Shell Plating Material : Tin

• PCB Mount Retention : With

• PCB Mount Retention Type : Boardlock

• Mating Retention : Without

• Connector Mounting Type : Board Mount

• PCB Mount Alignment : With

• Mating Alignment : With

• Mounting Hole Diameter (mm): 3.1

• Circuit Application : Signal

• Durability Rating (Cycles): 200

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• EU RoHS Compliance : Compliant with Exemptions

• EU ELV Compliance : Compliant with Exemptions

• Termination Post & Tail Length : 3.2 mm [ .126 in ]

• Termination Method to PCB : Through Hole - Solder

• Rectangular Termination Post & Tail Thickness : .32 mm [ .012 in ]

• Rectangular Termination Post & Tail Width : .45 mm [ .017 in ]

• Compatible With Approved Standards Products : DIN 41652

• UL Flammability Rating : UL 94V-0
