Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Insertion Force : Normal

• Connection Capacity : Single

• Compatible With Wire & Cable Type : Discrete Wire

• Mating Tab Thickness : .81 mm [ .032 in ]

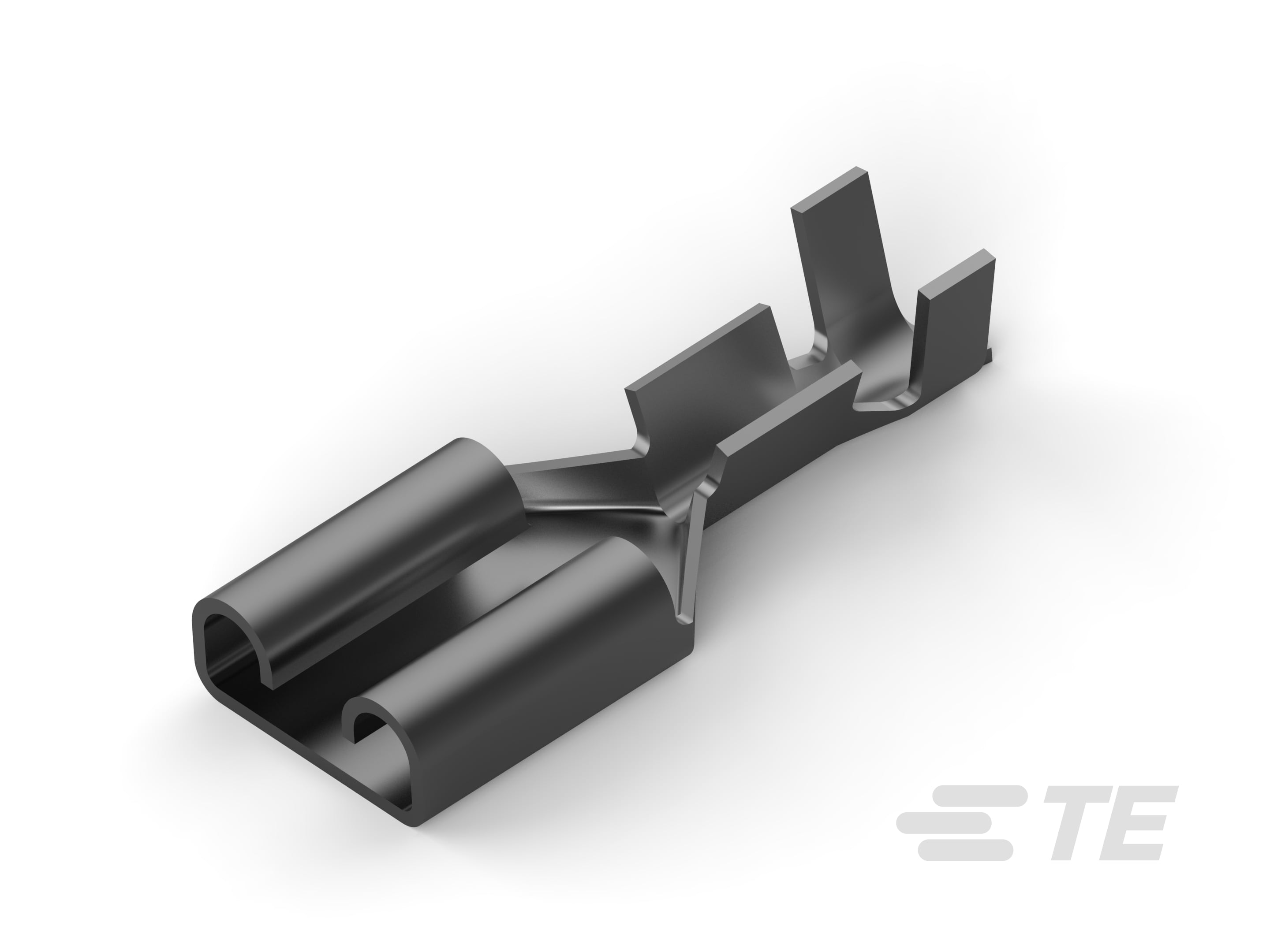

• Quick Disconnect Terminal Type : Receptacle

• Mating Tab Width : 6.35 mm [ .25 in ]

• Contact Base Material : Brass

• Terminal Plating Material : Tin

• Barrel Type : Open

• Terminal Orientation : Straight

• Crimp Type : F-Crimp

• Product Terminates To : Wire & Cable

• Wire Insulation Support : With

• Extraction Force (Newton): 80

• Extraction Force (kgf): 8.1

• Mating Retention Type : Dimple

• Wire Size (AWG): 20 – 16

• Terminal Material Thickness : .41 mm [ .016 in ]

• Product Length : 19 mm [ .748 in ]

• Compatible Insulation Diameter Range : 2.3 – 3.3 mm [ .09 – .13 in ]

• Wire Size (mm²): .51 – 1.65

• Operating Temperature Range : -40 – 110 °C [ -40 – 230 °F ]

• Insulation Option : Uninsulated

• Compatible With Agency/Standards Products : CSA, UL

• Packaging Method : Strip/Reel

• Packaging Quantity : 7000
