Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

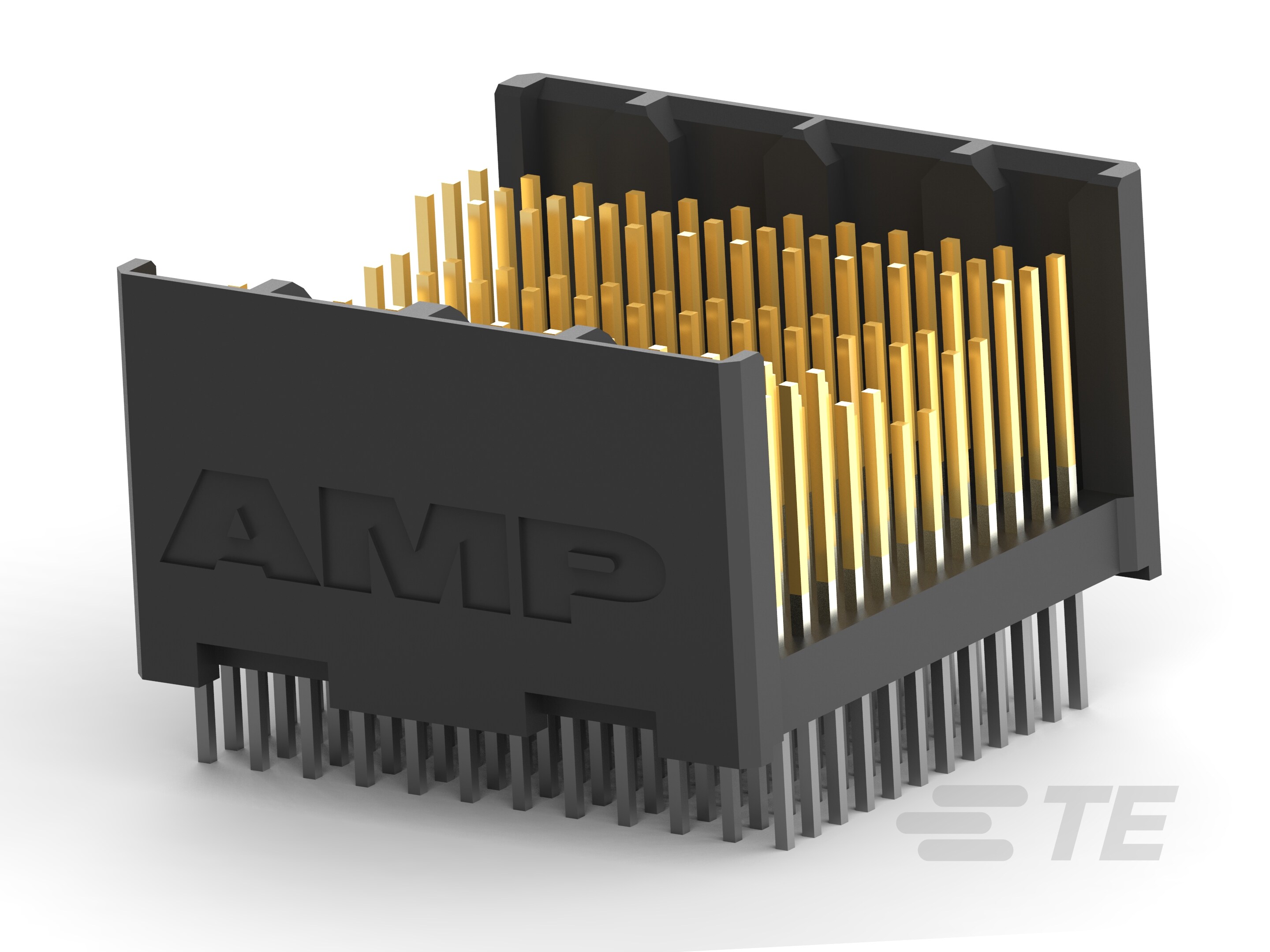

• Connector System : Board-to-Board

• Backplane Interface Type : 2mm HM

• Connector & Contact Terminates To : Printed Circuit Board

• PCB Connector Assembly Type : PCB Mount Header

• Sealable : No

• Crosstalk Version : Reduced

• Data Rate (Gb/s): ≤1

• Rows Loaded : Fully Loaded

• Number of Columns : 12

• Number of Rows : 12

• Backplane Architecture : Mezzanine

• Number of Positions : 144

• PCB Mount Orientation : Vertical

• Housing Material : Polyester - GF

• Centerline (Pitch) : 1.5 mm [ .059 in ]

• Packaging Quantity : 20

• Packaging Method : Tube

• Contact Type : Pin

• Feedthrough Post Length (mm): 3.7

• PCB Contact Termination Area Plating Material : Tin

• CompactPCI Designation : None

• Contact Base Material : Phosphor Bronze

• Contact Mating Area Length (mm): 8.2

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Nickel

• Contact Mating Area Plating Material Thickness : .76 µm [ 30 µin ]

• Contact Current Rating (Max) (A): .7

• Shielded : No

• Circuit Application : Signal

• Backplane Module Length (mm): 23.9

• Front Mating Level : Level 2

• Connector Mounting Type : Board Mount

• Termination Method to PCB : Through Hole - Press-Fit

• UL Flammability Rating : UL 94V-0

• Primary Product Color : Black

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
