5205735-7

Active

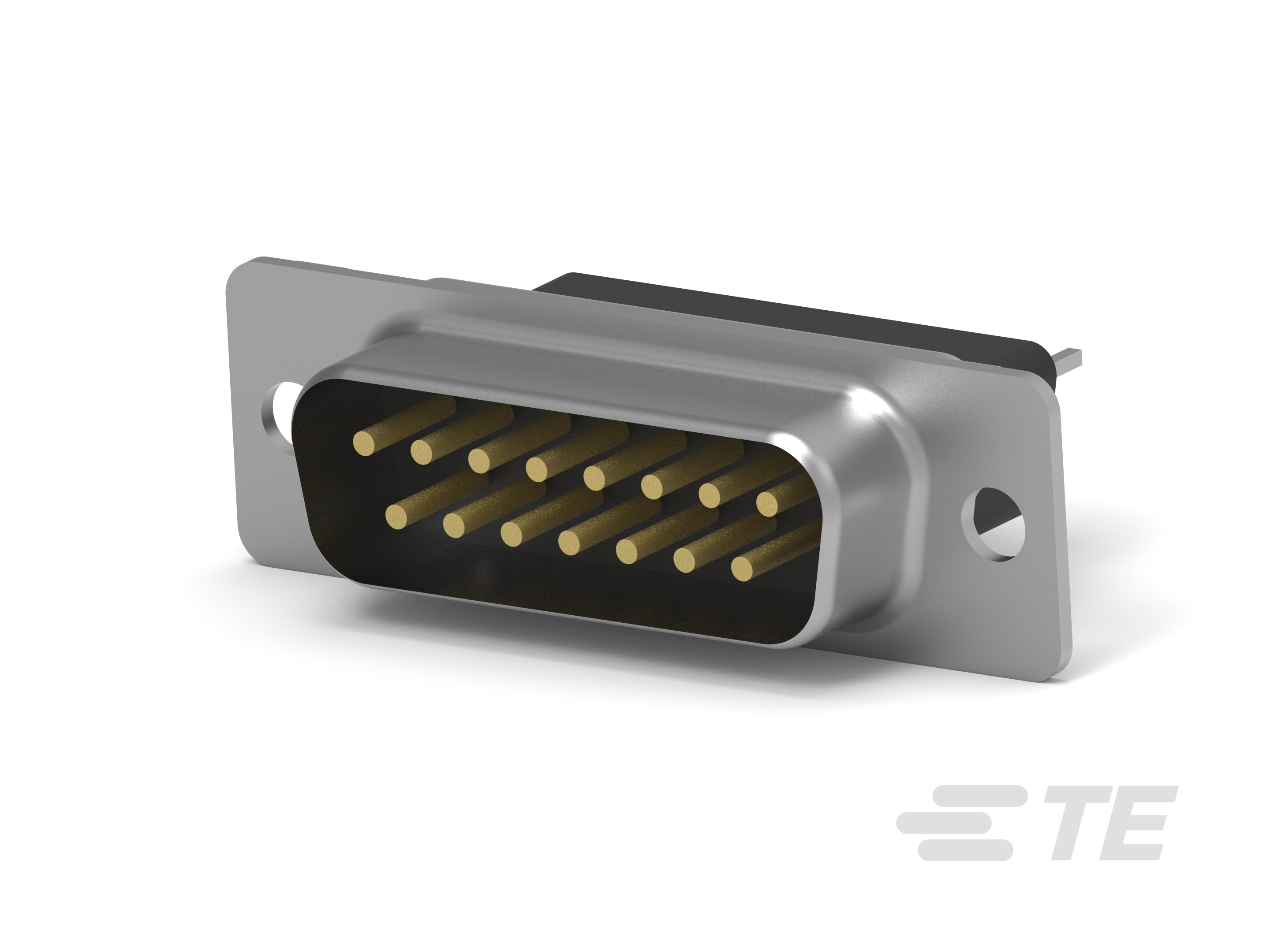

Plug, Board-to-Board, 15 Position, 2.74 mm [.108 in] Centerline, 2 Row, 2 Connector Shell Size, Square, AMPLIMITE HD-20, PCB D-Sub Connectors

5205735-7

Active

Plug, Board-to-Board, 15 Position, 2.74 mm [.108 in] Centerline, 2 Row, 2 Connector Shell Size, Square, AMPLIMITE HD-20, PCB D-Sub Connectors

- AMPLIMITE
- AMPLIMITE HD-20

TE Internal #: 5205735-7
TE Internal Description: 15 PLUG SP/MS STD
All D-Sub Plug Assembly: Standard, Vertical, Shell Size 2, 2.74mm (27)

Connector & Housing Type : Plug
Connector System : Board-to-Board
Number of Positions : 15
Centerline (Pitch) : 2.74 mm [ .108 in ]
Number of Rows : 2

See All Features

More Less

Compatible Parts & Tooling

Documents

Product Drawings

PLUG ASSY, SIZE 2, 15 POS, VERTICAL, AMPLIMITE HDP ENG_CD_5205735_D_5205735_1_c.dwg.pdf English

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_5205735-7_C.pdf 3D
Customer View Model ENG_CVM_CVM_5205735-7_C.2d_dxf.zip English
ENG_CVM_CVM_5205735-7_C.3d_igs.zip English
ENG_CVM_CVM_5205735-7_C.3d_stp.zip English

Product Specifications

Application Specification ENG_SS_114-40023_D.pdf English
Product Specification ENG_SS_108-40025_C.pdf English
Qualification Test Report ENG_SS_501-168_A.pdf English

Agency Approvals

UL Report ENG_AAD_UL_E81956_19911203_B_20130617074149.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Connector & Housing Type : Plug
Connector System : Board-to-Board
Connector Shell Size : 2
Connector & Contact Terminates To : Printed Circuit Board
Shell Material Configuration : Full Metal Shell

Configuration Features

Number of Positions : 15
Number of Rows : 2
PCB Mount Orientation : Vertical

Body Features

Primary Product Color : Black
Shell Plating Material : Zinc
Connector Profile : Standard

Contact Features

Contact Base Material : Brass
PCB Contact Termination Area Plating Material : Tin
Contact Underplating Material : Palladium Nickel
Contact Mating Area Plating Material : Gold, Gold Flash
Contact Mating Area Plating Material Thickness (µin): 30
Contact Shape & Form : Square
Contact Current Rating (Max) (A): 6
Contact Options : Installed

Termination Features

Termination Method to PCB : Through Hole - Solder
Termination Post & Tail Length : 4.78 mm [ .188 in ]
Square Termination Post & Tail Dimension : .63 mm [ .025 in ]

Mechanical Attachment

Mounting Hole Diameter (in): .12
PCB Mount Retention : Without
Mating Retention : Without
Connector Mounting Type : Board Mount

Housing Features

Housing Material : Glass-Filled Nylon, Glass-Filled PBT
Shell Material : Steel
Centerline (Pitch) : 2.74 mm [ .108 in ]

Dimensions

PCB Thickness (Recommended) (mm): 1.57, 2.36
PCB Thickness (Recommended) (in): .062, .093
Row-to-Row Spacing : 2.84 mm [ .112 in ]

Usage Conditions

Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

Circuit Application : Signal

Industry Standards

UL Flammability Rating : UL 94V-0

Packaging Features

Packaging Method : Tube
Packaging Quantity : 13
