520971-2

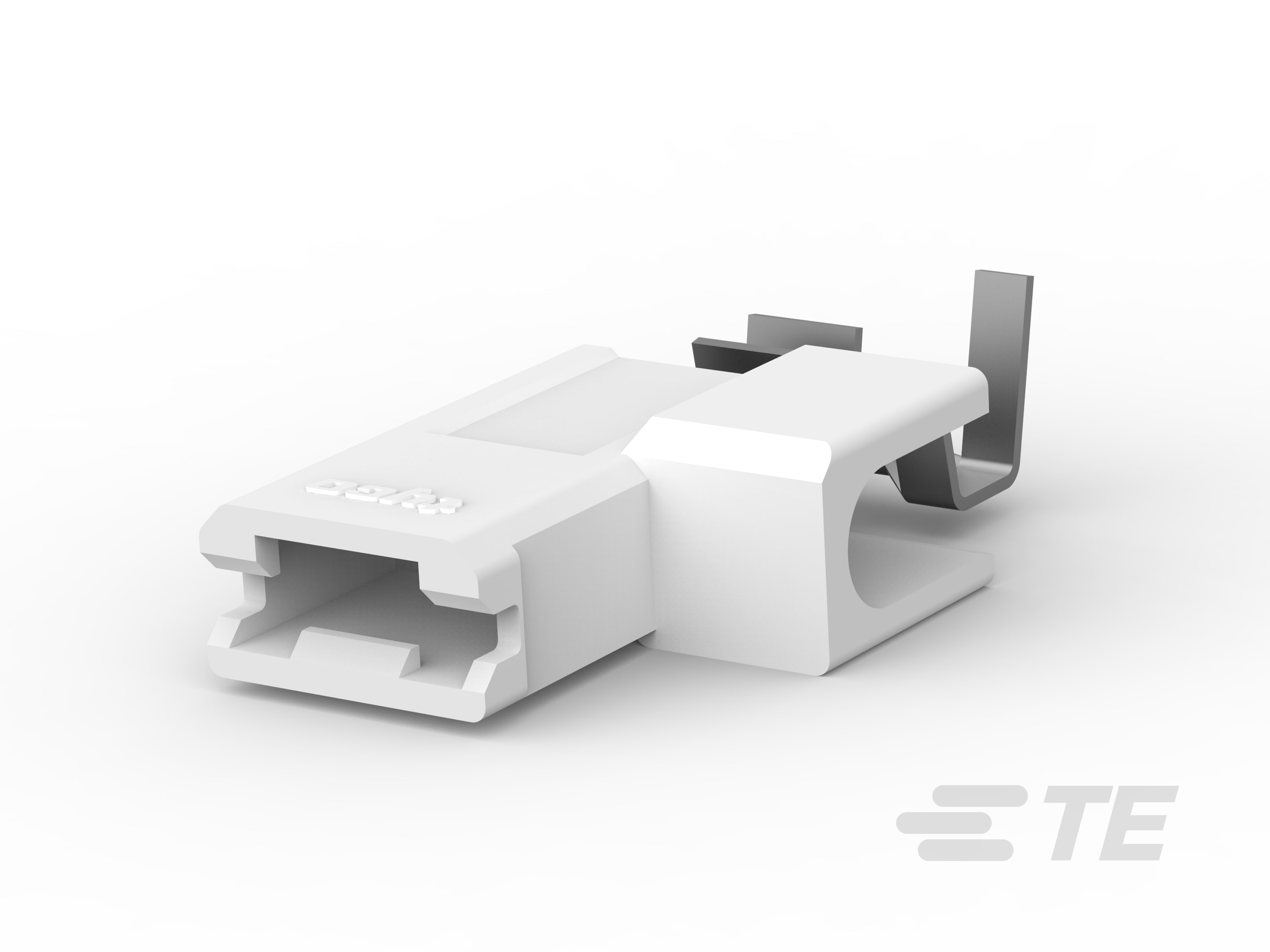

Quick Disconnect Receptacle, 18 – 14 AWG, .82 – 2.08 mm² Wire, 6.35 mm [.25 in] Tab Width, Flag, Brass, Tin Plating, Strip/Reel, Ultra-Pod 250
520971-2
Quick Disconnect Receptacle, 18 – 14 AWG, .82 – 2.08 mm² Wire, 6.35 mm [.25 in] Tab Width, Flag, Brass, Tin Plating, Strip/Reel, Ultra-Pod 250
-
- Ultra-Pod
- Ultra-Pod 250
- TE Internal #: 520971-2
- TE Internal Description: ULTRA-POD 250 ASY REC 18-14 AWG TPBR
- All ULTRA POD: Flag, Receptacle Assembly, Tin Plated, .250 inch (9)
-
Quick Disconnect Terminal Type : Receptacle
-
Wire Size (AWG): 18 – 14
-
Wire Size (mm²): .82 – 2.08
-
Mating Tab Width : 6.35 mm [ .25 in ]
-
Mating Tab Thickness : .81 mm [ .032 in ]
