521366-2

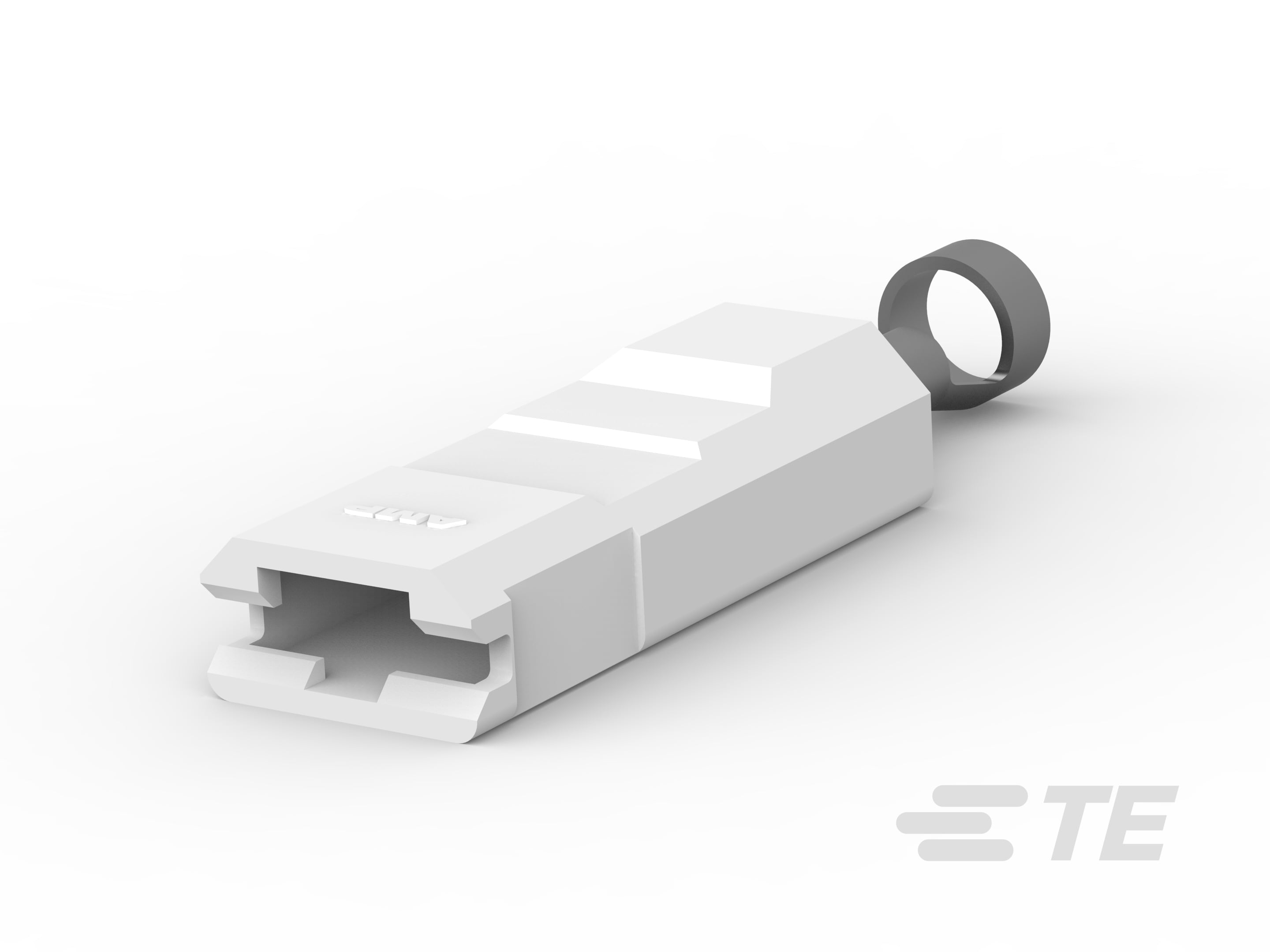

Receptacle, 14 – 10 AWG Wire Size, 2.08 – 5.26 mm² Wire Size, Mating Tab Width 6.35 mm [.25 in], Straight, Brass, Ultra-Pod 250, Quick Disconnects
521366-2
Receptacle, 14 – 10 AWG Wire Size, 2.08 – 5.26 mm² Wire Size, Mating Tab Width 6.35 mm [.25 in], Straight, Brass, Ultra-Pod 250, Quick Disconnects
-
- Ultra-Pod
- Ultra-Pod 250
- TE Internal #: 521366-2
- TE Internal Description: ULTRA-POD 250 ASSY REC 14-10 AWG TPBR
- All ULTRA POD: Straight, Receptacle Assembly, Tin Plated, 0.25 inch (13)
-
Quick Disconnect Terminal Type : Receptacle
-
Wire Size (AWG): 14 – 10
-
Wire Size (mm²): 2.08 – 5.26
-
Mating Tab Width : 6.35 mm [ .25 in ]
-
Mating Tab Thickness : .81 mm [ .032 in ]
