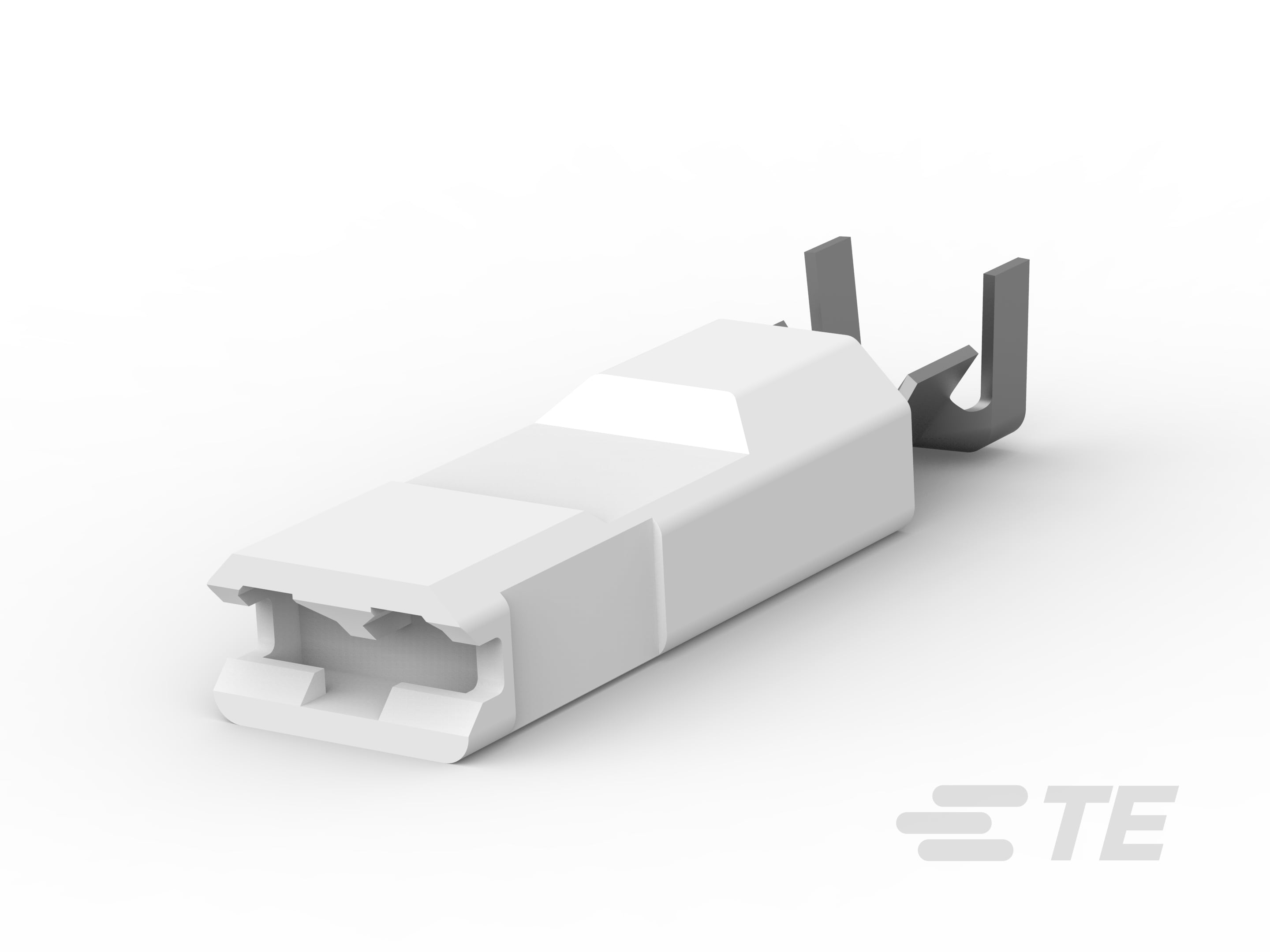

521995-2
Quick Disconnect Receptacle, 18 – 16 AWG, .82 – 1.31 mm² Wire, 4.75 mm [.187 in] Tab Width, Straight, Brass, Tin Plating, Strip/Reel, Ultra-Pod 187
521995-2
Quick Disconnect Receptacle, 18 – 16 AWG, .82 – 1.31 mm² Wire, 4.75 mm [.187 in] Tab Width, Straight, Brass, Tin Plating, Strip/Reel, Ultra-Pod 187
-
- Ultra-Pod
- Ultra-Pod 187
- TE Internal #: 521995-2
- TE Internal Description: ULTRA-POD 187 ASSY REC 18-16, 2(18) TPBR
- All ULTRA POD: Straight, Receptacle Assembly, Tin Plated, .187 inch (9)
-
Quick Disconnect Terminal Type : Receptacle
-
Wire Size (AWG): 18 – 16
-
Wire Size (mm²): .82 – 1.31
-
Mating Tab Width : 4.75 mm [ .187 in ]
-
Mating Tab Thickness : .51 mm [ .02 in ]
Documents
Product Drawings
- ASSEMBLY, RECEPTACLE, ULTRA-POD, 4.8 [.187] SERIES ENG_CD_521995_D1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_521995-2_C.pdf 3D
- Customer View Model ENG_CVM_CVM_521995-2_C.2d_dxf.zip English
- ENG_CVM_CVM_521995-2_C.3d_igs.zip English
- ENG_CVM_CVM_521995-2_C.3d_stp.zip English
Datasheets & Catalog Pages
- Ultra-Fast and Ultra Fast Plus ENG_CS_82004_Ultra-Fast_and_Ultra_Fast_Plus_0311.pdf English
Product Specifications
- Application Specification ENG_SS_114-2124_S5.pdf English
- Product Specification ENG_SS_108-1285_F1.pdf English
