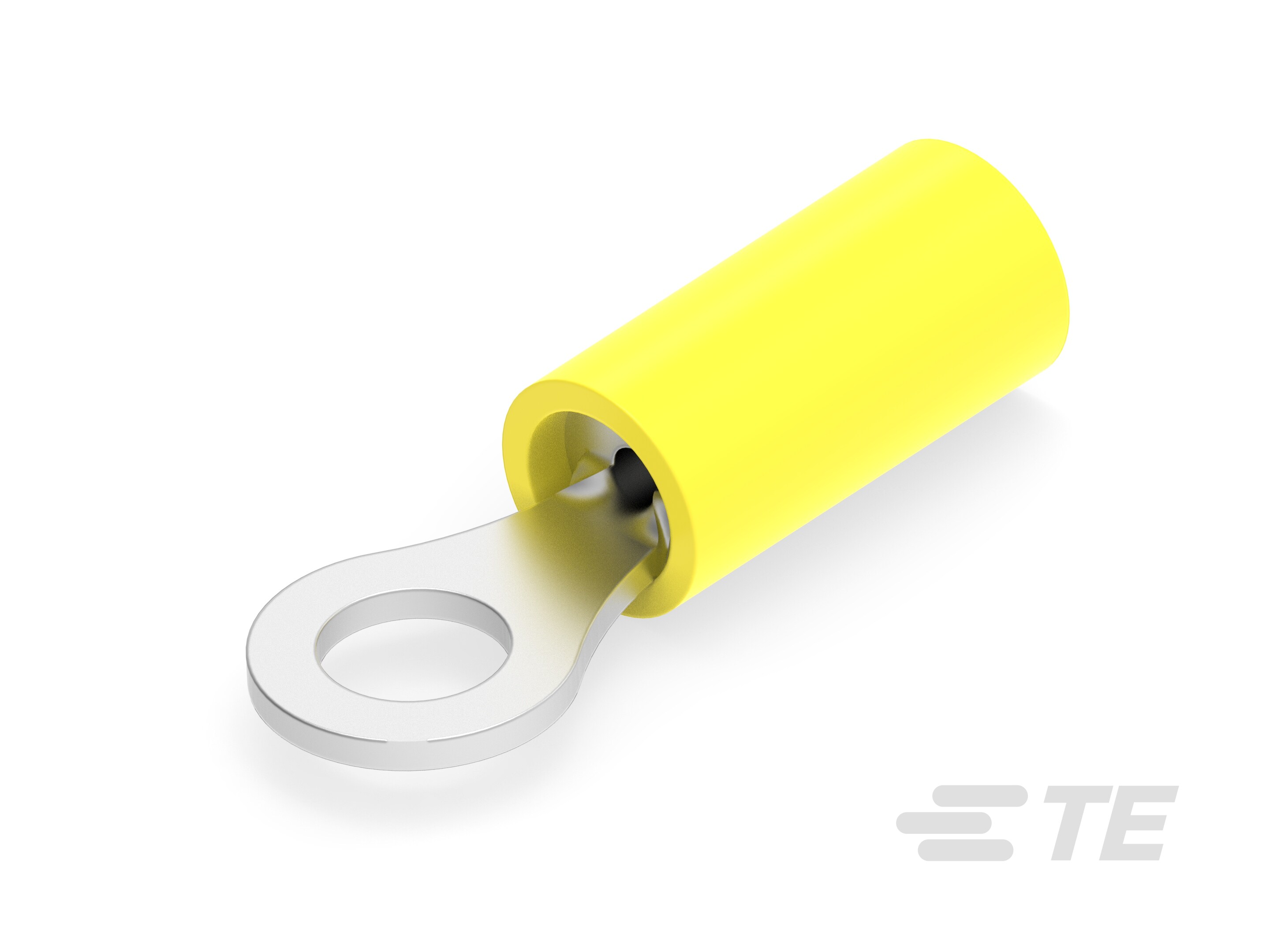

Closed Ring Tongue Terminal, 26 AWG, #6 / M3.5 Stud Size, 3.51 mm [.138 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated, PIDG
53050
Closed Ring Tongue Terminal, 26 AWG, #6 / M3.5 Stud Size, 3.51 mm [.138 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated, PIDG
-
- PIDG
- TE Internal #: 53050
- TE Internal Description: TERMINAL,PIDG R IR 26 6
- Mil-Spec: M7928/1-3, CLASS 1
- All PIDG Ring Tongue Terminals (410)
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 26
-
Wire Size (CMA): 304
-
Stud Size : 6, M3.5
-
Stud Diameter : 3.51 mm [ .138 in ]
Documents
Product Drawings
- TERMINAL, PIDG, RING TONGUE, INSULATION RESTRICTING WIRE SIZE: 26 ENG_CD_53050_G1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_53050_E.pdf 3D
- Customer View Model ENG_CVM_CVM_53050_E.2d_dxf.zip English
- ENG_CVM_CVM_53050_E.3d_igs.zip English
- ENG_CVM_CVM_53050_E.3d_stp.zip English
