• Military Part Class : Class I

• Barrel Type : Closed

• Terminal Orientation : Straight

• Terminal Plating Material : Tin-Lead

• Packaging Quantity : 1000

• Packaging Method : Loose Piece

• Stripe Color : Yellow

• Insulation Sleeve Color : Natural

• Government Qualified Terminal : Yes

• Wire Insulation Support : With

• Number of Holes : 1

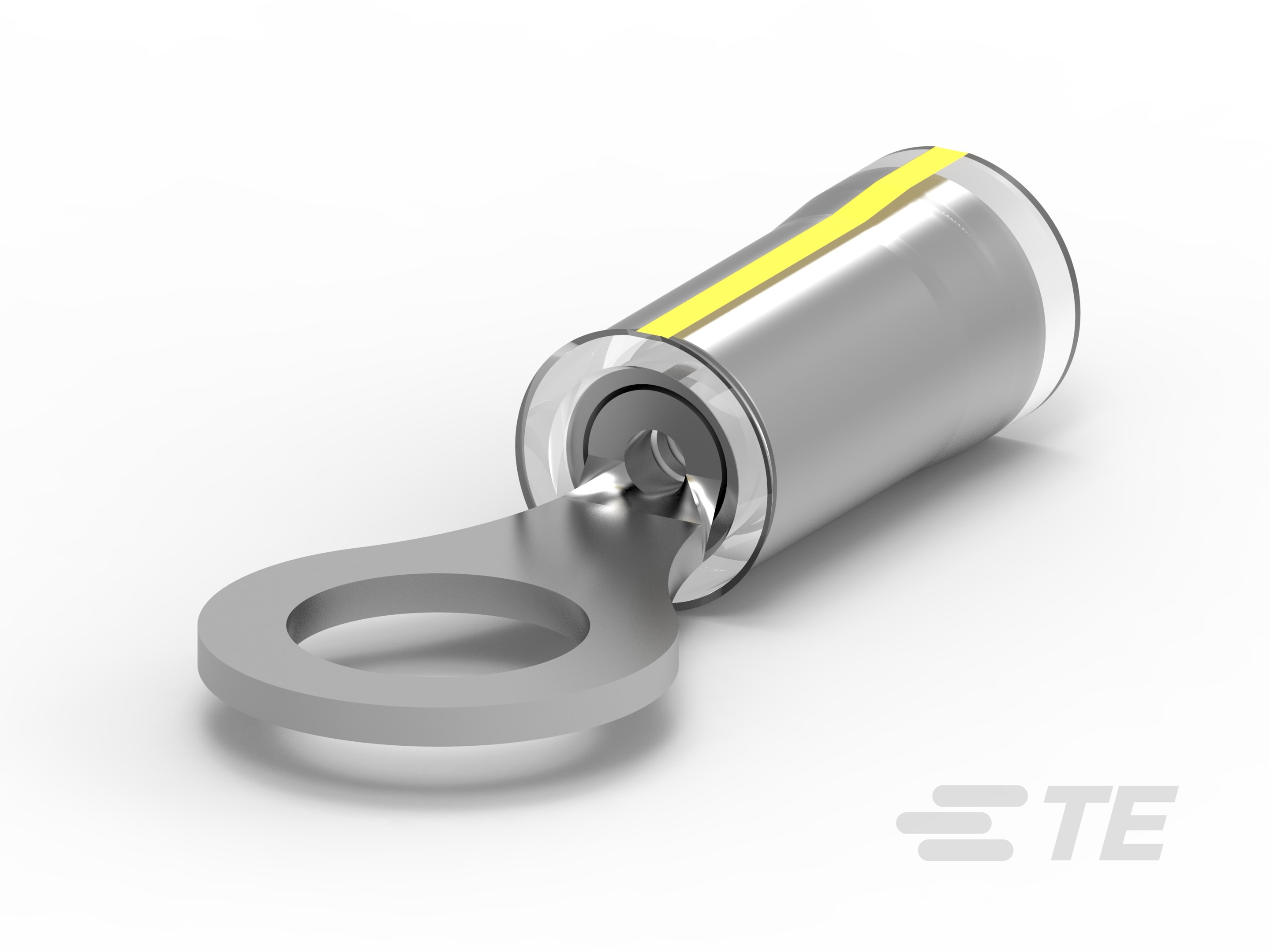

• Ring Terminal Product Type : Closed Ring Tongue Terminal

• Stud Size : 10

• Sealable : No

• Wire Insulation Support Retention Type : Insulation Support

• Wire Size (AWG): 26

• Wire Size (mm²): .12 – .24

• Wire Size (CMA): 202 – 509

• Stud Diameter : 5 mm [ .197 in ]

• Tongue Thickness : .74 mm [ .029 in ]

• Product Length : 21.87 mm [ .861 in ]

• Compatible Insulation Diameter (Max) : 2.08 mm [ .082 in ]

• Compatible Insulation Diameter Range : .81 – 2.08 mm [ .032 – .082 in ]

• Insulation Option : Partially Insulated

• Compatible With Wire Base Material : Copper

• Compatible With Wire Plating Material : Tin
