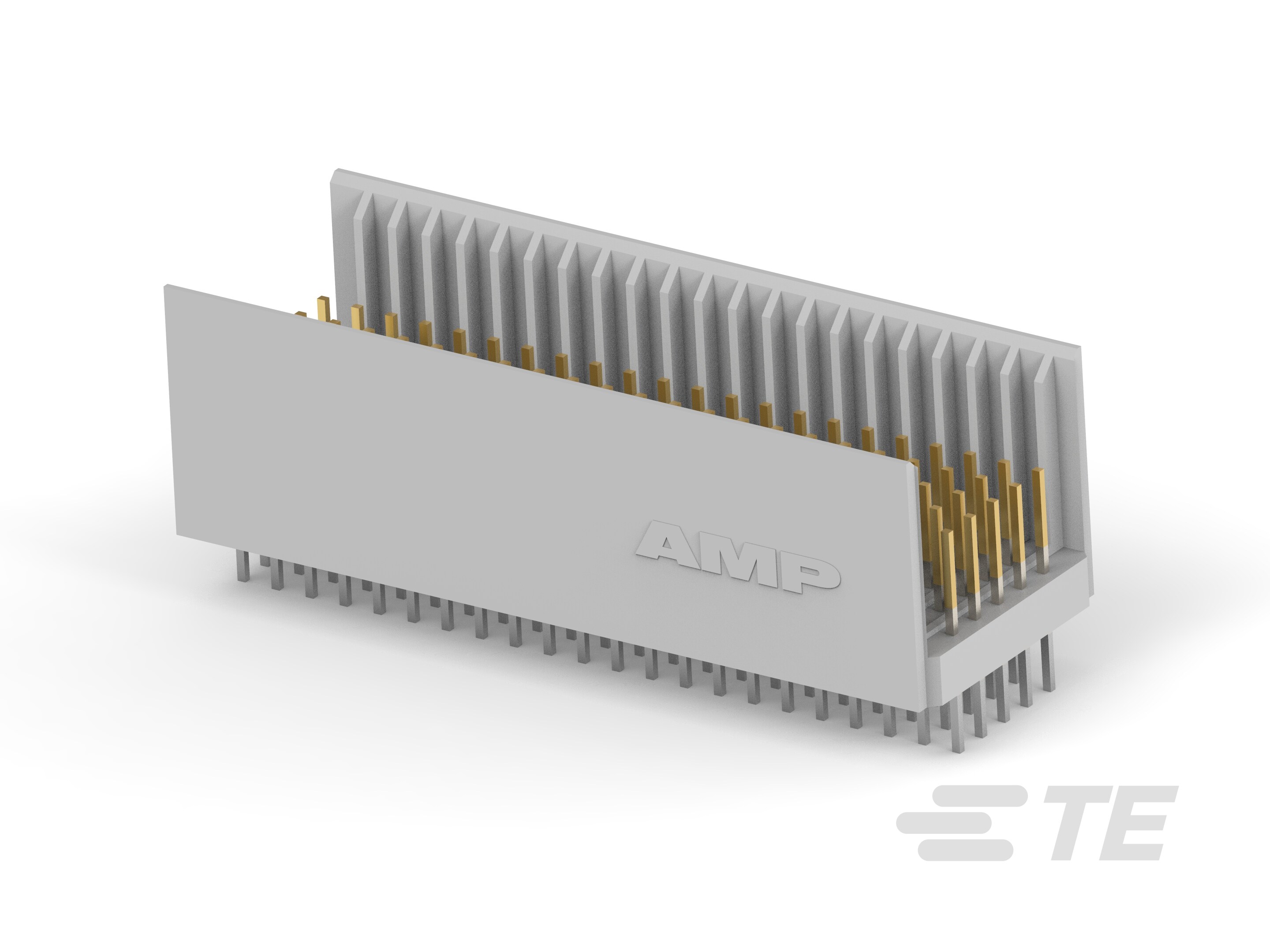

Hard Metric Backplane PCB Mount Header, ≤1 Gb/s, 25 Column, 5 Row, 110 Position, 2 mm Centerline, Vertical, Gray, Tube, Gold (Au), Z-PACK 2mm HM
5352639-1
Hard Metric Backplane PCB Mount Header, ≤1 Gb/s, 25 Column, 5 Row, 110 Position, 2 mm Centerline, Vertical, Gray, Tube, Gold (Au), Z-PACK 2mm HM
-
- Z-PACK
- Z-PACK 2mm HM
- TE Internal #: 5352639-1
- TE Internal Description: Z-PACK HM/B MALE HDR 110 POS
- All Hard Metric Male Connector: Traditional Backplane, Mezzanine, 2mm (124)
-
PCB Connector Assembly Type : PCB Mount Header
-
Data Rate (Gb/s): ≤1
-
Number of Columns : 25
-
Number of Rows : 5
-
Number of Positions : 110
Documents
Product Drawings
- MALE ASSEMBLY, Z-PACK 2mm HM, TYPE B ENG_CD_5352639_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_5352639-1_O.pdf English
- Customer View Model ENG_CVM_5352639-1_O.2d_dxf.zip English
- ENG_CVM_5352639-1_O.3d_igs.zip English
- ENG_CVM_5352639-1_O.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-19029_E.pdf English
- Product Specification ENG_SS_108-19082_C.pdf English
