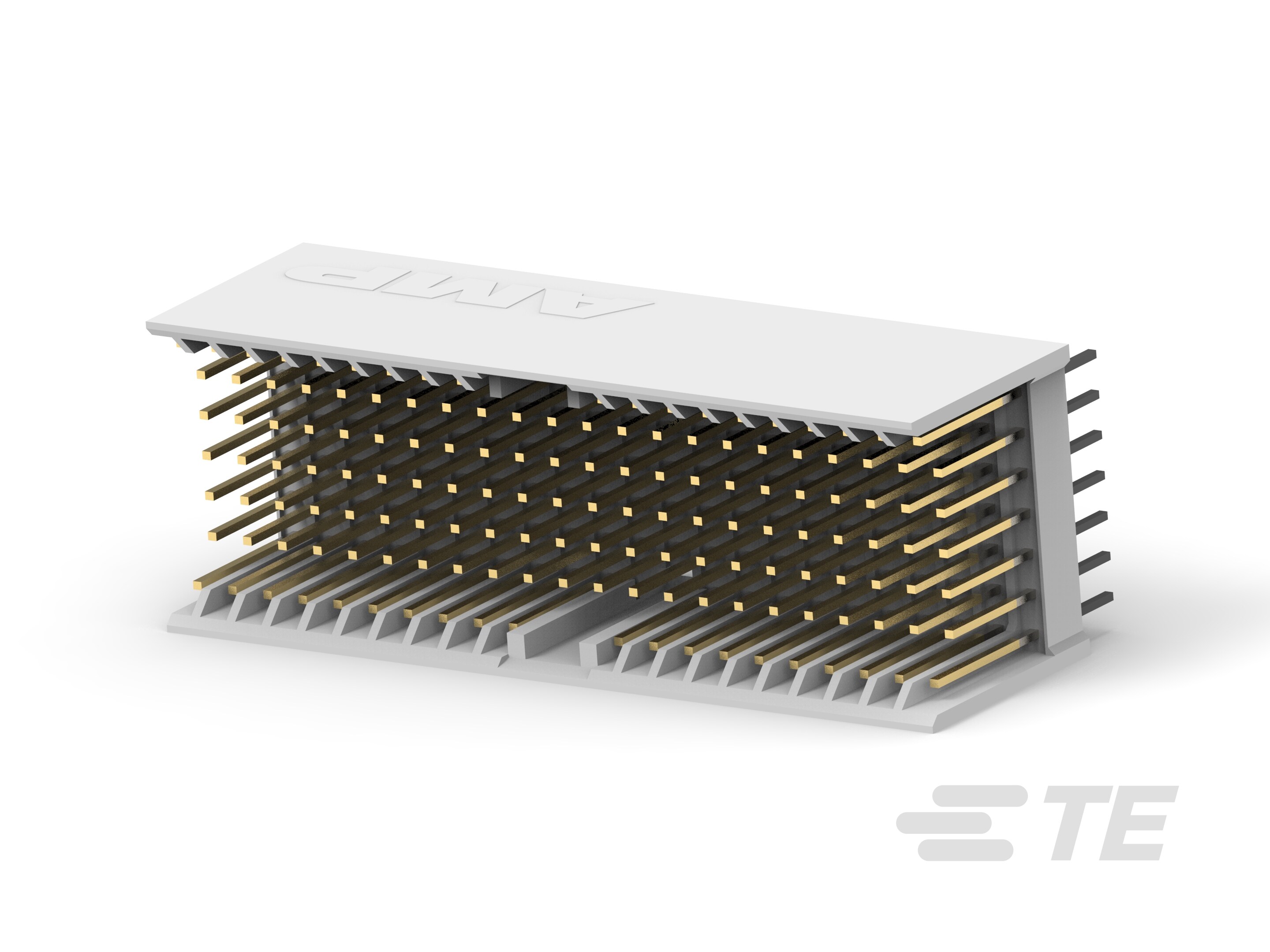

• Connector System : Board-to-Board

• Backplane Interface Type : 2mm HM

• Connector & Contact Terminates To : Printed Circuit Board

• PCB Connector Assembly Type : PCB Mount Header

• Sealable : No

• Crosstalk Version : Standard

• Data Rate (Gb/s): ≤1

• Number of Signal Positions : 125, 110

• Rows Loaded : Z, B, C, D, E, A, F

• Number of Columns : 22

• Number of Rows : 7

• Backplane Architecture : Mezzanine

• Number of Positions : 146

• PCB Mount Orientation : Vertical

• Housing Material : Polyester - GF

• Centerline (Pitch) : 2 mm [ .078 in ]

• Packaging Quantity : 11

• Packaging Method : Tube

• Contact Type : Pin

• Feedthrough Post Length (mm): 3.7

• PCB Contact Termination Area Plating Material : Tin

• CompactPCI Designation : None

• Contact Base Material : Phosphor Bronze

• Contact Mating Area Length (mm): 6.75, 8.25

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Gold Flash over Palladium Nickel, Gold

• Contact Mating Area Plating Material Thickness : .76 µm [ 30 µin ]

• Contact Current Rating (Max) (A): 1.5

• Shielded : No

• Circuit Application : Signal

• Backplane Module Length (mm): 43.88

• Termination Method to PCB : Through Hole - Press-Fit

• UL Flammability Rating : UL 94V-0

• Connector Mounting Type : Board Mount

• Primary Product Color : Gray

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
