5646729-1

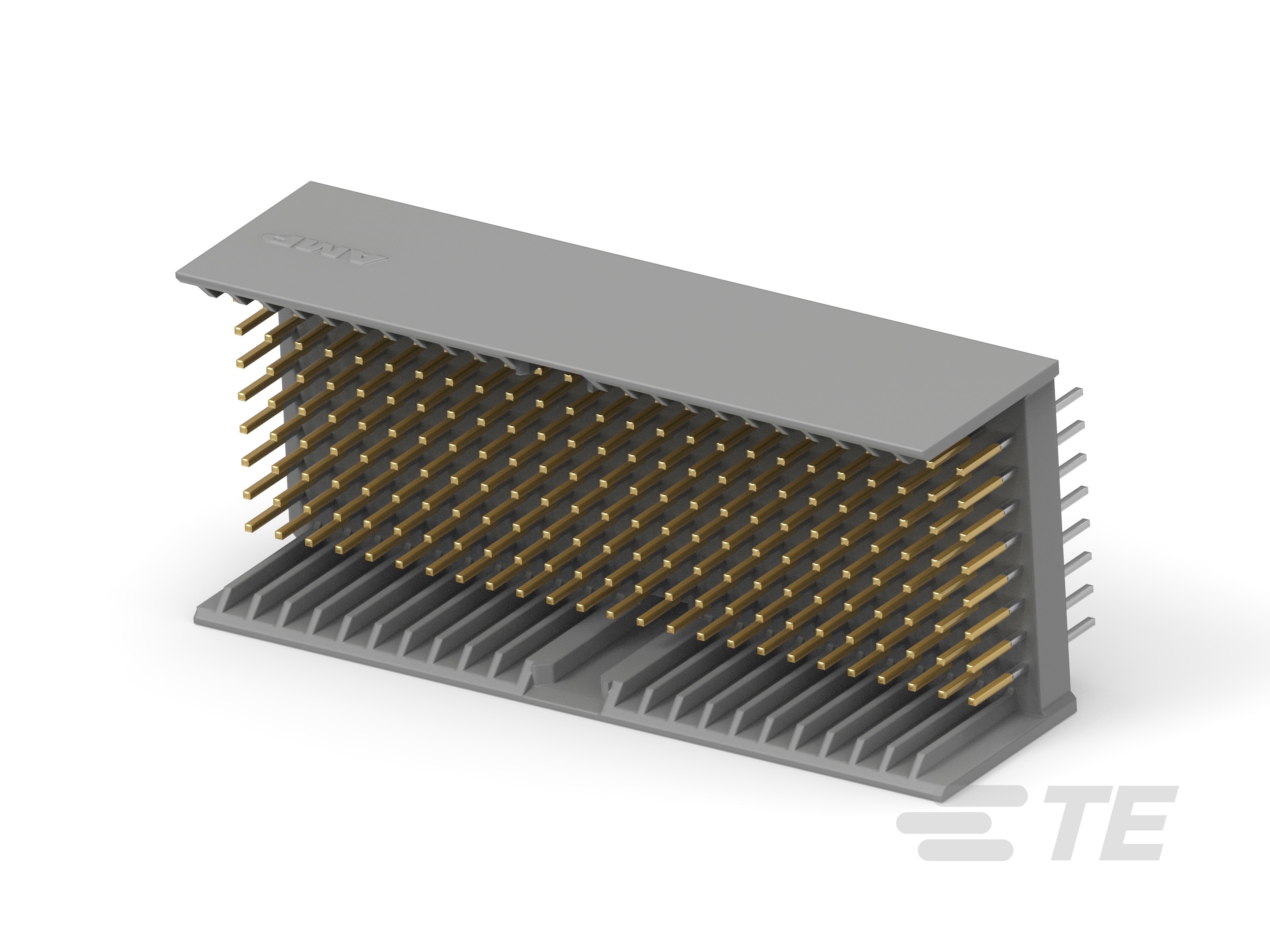

Hard Metric Backplane PCB Mount Header, ≤1 Gb/s, 25 Column, 8 Row, 200 Position, 2 mm Centerline, Vertical, Gray, Tube, Gold, Power & Signal
5646729-1
Hard Metric Backplane PCB Mount Header, ≤1 Gb/s, 25 Column, 8 Row, 200 Position, 2 mm Centerline, Vertical, Gray, Tube, Gold, Power & Signal
- TE Internal #: 5646729-1
- TE Internal Description: 2MM HM,ASY,T-D/E,HDR,8R,200,AP
- All Hard Metric Male Connector: Traditional Backplane, Mezzanine, 2mm (124)
-
PCB Connector Assembly Type : PCB Mount Header
-
Data Rate (Gb/s): ≤1
-
Number of Columns : 25
-
Number of Rows : 8
-
Number of Positions : 200
Documents
Product Drawings
- MALE ASSEMBLY, Z-PACK 2mm HM, TYPE D/E ENG_CD_5646729_C.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_5646729-1_A.pdf English
- Customer View Model ENG_CVM_5646729-1_A.2d_dxf.zip English
- ENG_CVM_5646729-1_A.3d_igs.zip English
- ENG_CVM_5646729-1_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-19029_E.pdf English
- Product Specification ENG_SS_108-1622_A.pdf English
