5646766-1

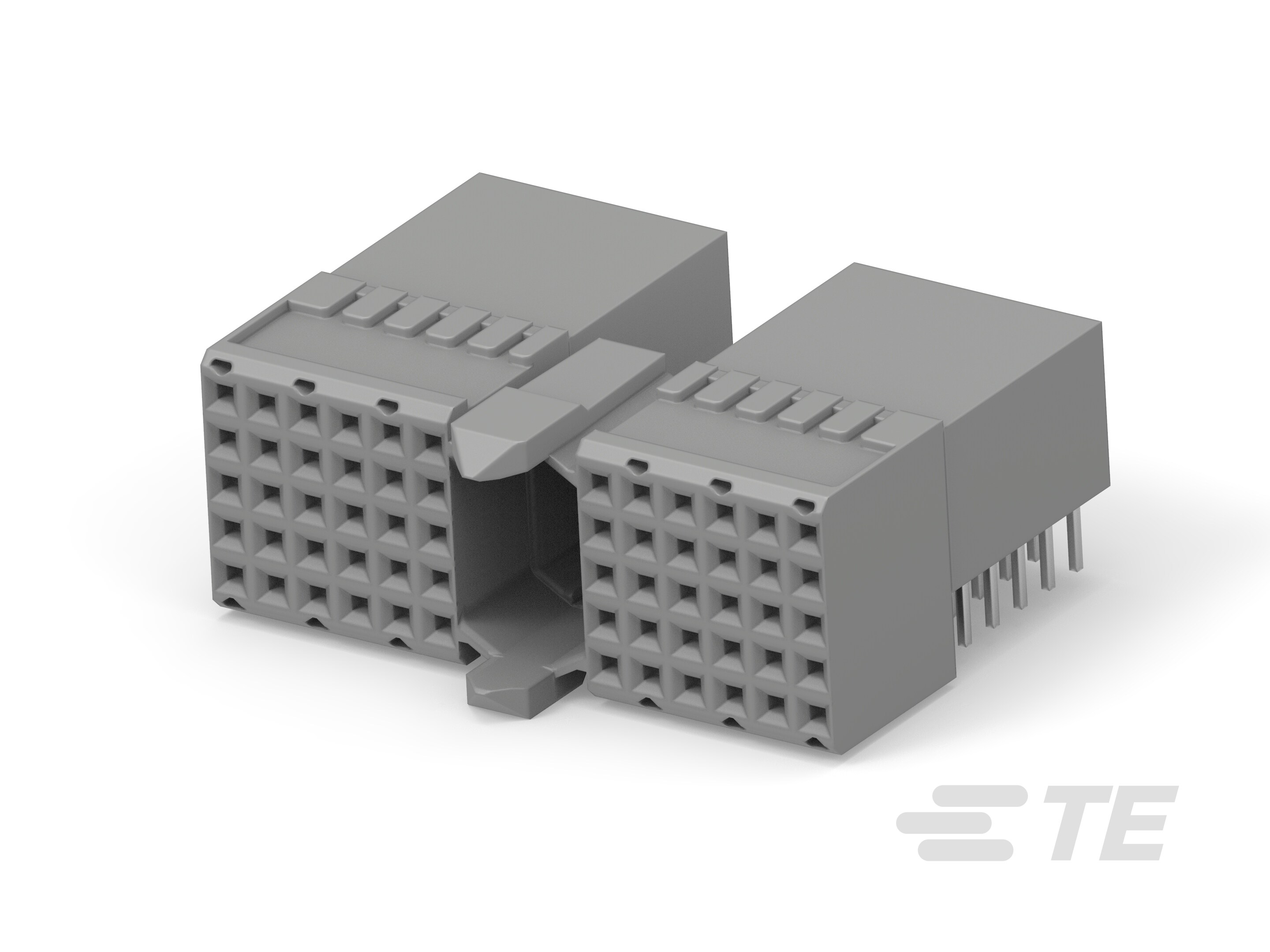

Hard Metric Backplane PCB Mount Receptacle, ≤1 Gb/s, 15 Column, 5 Row, 60 Position, 2 mm Centerline, Right Angle, Gray, Tube, Gold, Power & Signal
5646766-1
Hard Metric Backplane PCB Mount Receptacle, ≤1 Gb/s, 15 Column, 5 Row, 60 Position, 2 mm Centerline, Right Angle, Gray, Tube, Gold, Power & Signal
- TE Internal #: 5646766-1
- TE Internal Description: 2MM HM TYPE A RECPT ASSY
- All Hard Metric Backplane Receptacle Connector: Mezzanine, 2mm (27)
-
PCB Connector Assembly Type : PCB Mount Receptacle
-
Data Rate (Gb/s): ≤1
-
Number of Columns : 15
-
Number of Rows : 5
-
Number of Positions : 60
Documents
Product Drawings
- CONNECTOR ASSSEMBLY, 60 POSITION, TYPE A, FEMALE DAUGHTER CARD, SIGNAL PINS, Z-PACK 2mm HM ENG_CD_5646766_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_5646766-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_5646766-1_A.2d_dxf.zip English
- ENG_CVM_CVM_5646766-1_A.3d_igs.zip English
- ENG_CVM_CVM_5646766-1_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-19029_E.pdf English
- Product Specification ENG_SS_108-19082_C.pdf English
