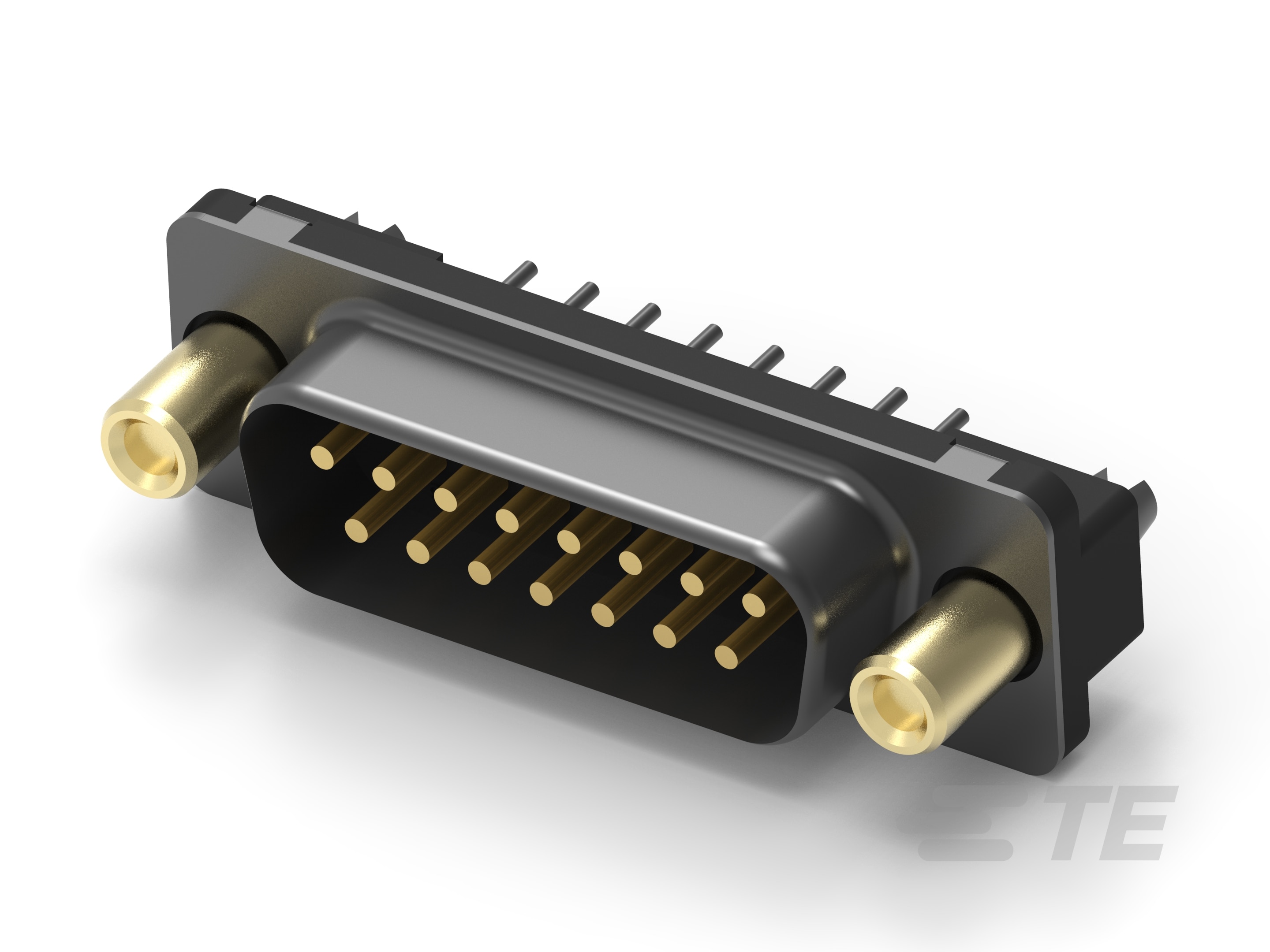

5748026-1
Plug, Board-to-Board, 15 Position, 2.74 mm [.108 in] Centerline, 2 Row, 2 Connector Shell Size, Round, AMPLIMITE HD-20, PCB D-Sub Connectors
5748026-1
Plug, Board-to-Board, 15 Position, 2.74 mm [.108 in] Centerline, 2 Row, 2 Connector Shell Size, Round, AMPLIMITE HD-20, PCB D-Sub Connectors
-
- AMPLIMITE
- AMPLIMITE HD-20
- TE Internal #: 5748026-1
- TE Internal Description: 15 PLUG SP/FMS (IN,SL)
- All D-Sub Plug Assembly: Standard, Vertical, Shell Size 2, 2.74mm (27)
-
Connector & Housing Type : Plug
-
Connector System : Board-to-Board
-
Number of Positions : 15
-
Centerline (Pitch) : 2.74 mm [ .108 in ]
-
Number of Rows : 2
Documents
Product Drawings
- PLUG ASSEMBLY, SIZE 2, 15 POS., VERTICAL, .026 DIA. POSTS, FRONT SHELL, W/ RETENTION SCREWLOCKS, AMPLIMITE HD-20 English
- PLUG ASSEMBLY, SIZE 2, 15 POS., VERTICAL, .026 DIA. POSTS, FRONT SHELL, W/ RETENTION SCREWLOCKS, AMPLIMITE HD-20 ENG_CD_5748026_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_5748026-1_B.pdf 3D
- Customer View Model ENG_CVM_CVM_5748026-1_B.2d_dxf.zip English
- ENG_CVM_CVM_5748026-1_B.3d_igs.zip English
- ENG_CVM_CVM_5748026-1_B.3d_stp.zip English
Datasheets & Catalog Pages
- AMPLIMITE Subminiature D Connectors - Straight Posted Connectors ENG_CS_82068_AMPLIMITE_Straight_Posted_Conns_0412.pdf English
Product Specifications
- Application Specification ENG_SS_114-40023_D.pdf English
- Product Specification ENG_SS_108-40025_C.pdf English
- Qualification Test Report ENG_SS_501-168_A.pdf English
