CRGS2010J390K

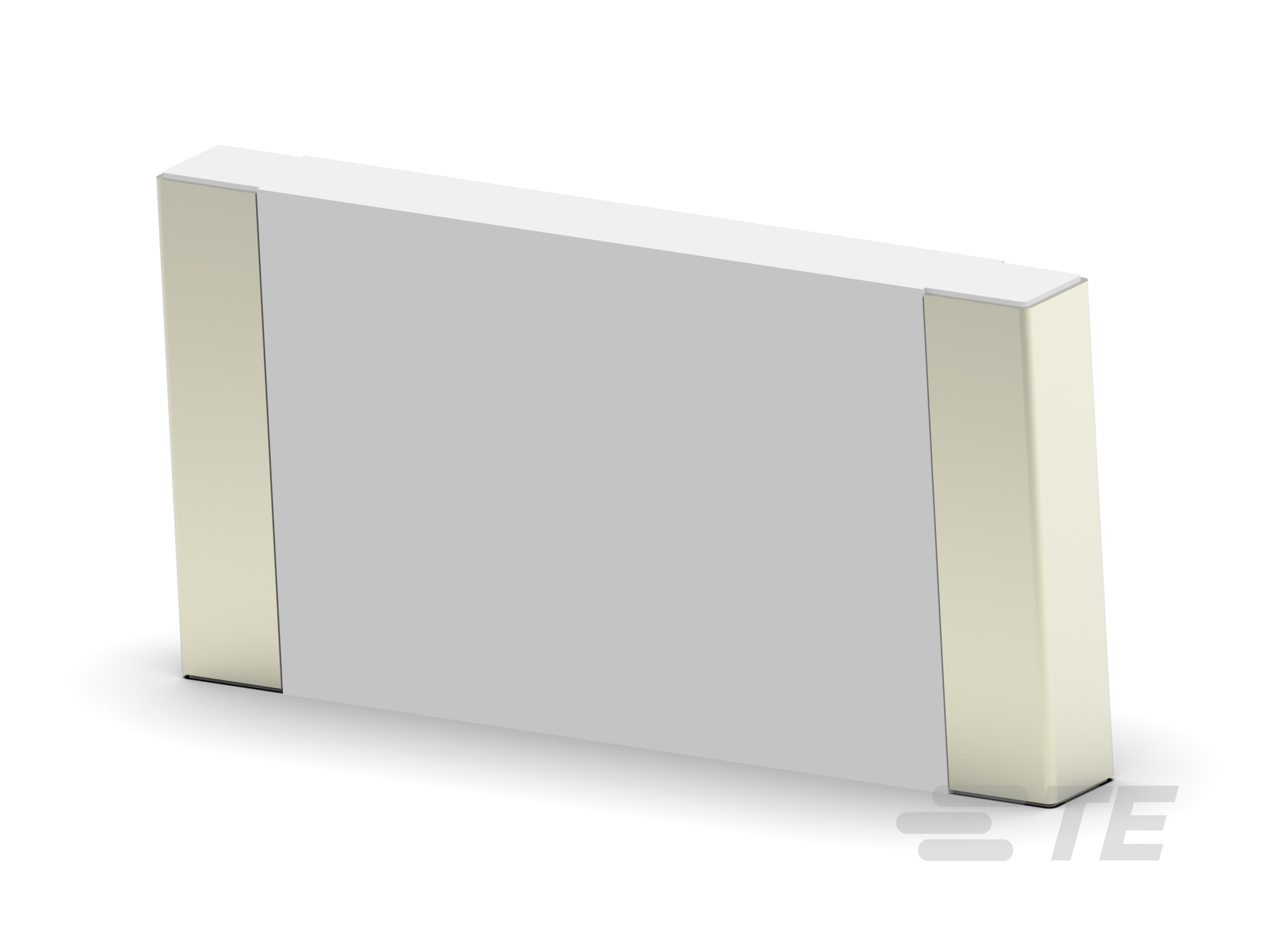

390K ohm, Surface Mount General Purpose Resistor, Thick Film, 2010, .75 W, 5 %, ±100 ppm/°C, Solder, 2 Terminations, Neohm CRGS
CRGS2010J390K
390K ohm, Surface Mount General Purpose Resistor, Thick Film, 2010, .75 W, 5 %, ±100 ppm/°C, Solder, 2 Terminations, Neohm CRGS
-
- Neohm
- Neohm CRGS
- TE Internal #: 6-2176251-8
- TE Internal Description: CRGS2010 5% 390K
-
Resistance Value (Ω): 390K
-
Resistor Type : General Purpose Resistor
-
Element Type : Thick Film
-
Package Size Code : 2010
-
Power Rating (W): .75
Documents
Product Drawings
- SMD ANTI-SURGE THICK FILM CHIP RESISTOR SERIES CRGS 2010 ENG_CD_2176251_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_6-2176251-8_BA.pdf 3D
- PCB Design Download symbol & footprint (SnapEDA)
- Customer View Model ENG_CVM_CVM_6-2176251-8_BA.2d_dxf.zip English
- ENG_CVM_CVM_6-2176251-8_BA.3d_igs.zip English
- ENG_CVM_CVM_6-2176251-8_BA.3d_stp.zip English
Datasheets & Catalog Pages
- SMD Anti-Surge Thick Film Chip Resistor - Type CRGS Series - Tyco Electronics Passives ENG_DS_9-1773463-8_B1.pdf English
