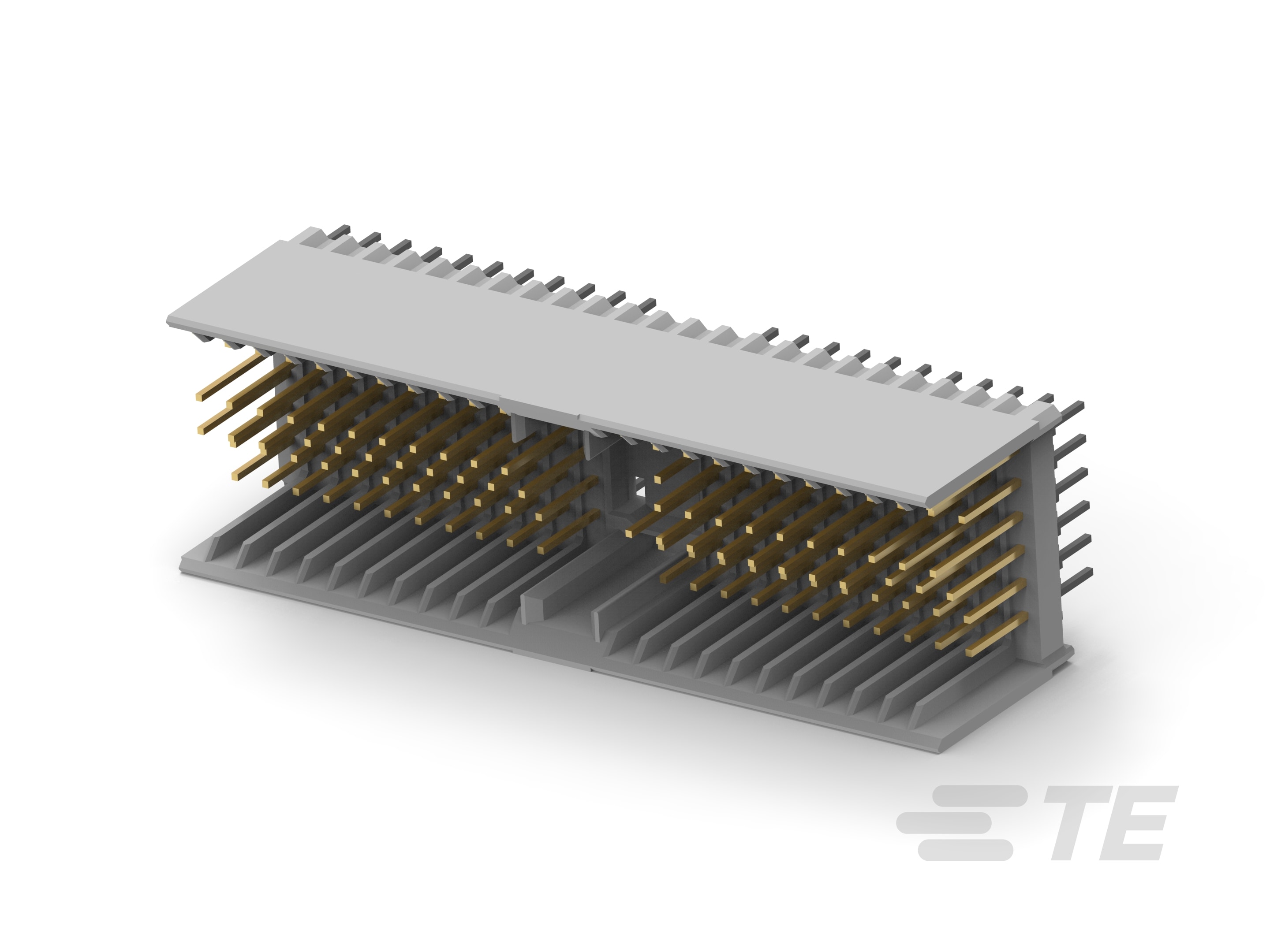

Hard Metric Backplane PCB Mount Header, 25 Column, 6 Row, Traditional Backplane, 132 Position, 2 mm [.078 in] Centerline, Vertical, Z-PACK 2mm HM
6345235-1
Hard Metric Backplane PCB Mount Header, 25 Column, 6 Row, Traditional Backplane, 132 Position, 2 mm [.078 in] Centerline, Vertical, Z-PACK 2mm HM
-
- Z-PACK
- Z-PACK 2mm HM
- TE Internal #: 6345235-1
- TE Internal Description: Z-PACK A HEADER 132P
- All Hard Metric Male Connector: Traditional Backplane, Mezzanine, 2mm (124)
-
PCB Connector Assembly Type : PCB Mount Header
-
Number of Columns : 25
-
Number of Rows : 6
-
Backplane Architecture : Traditional Backplane
-
Number of Positions : 132
Documents
Product Drawings
- MALE ASSEMBLY, Z-PACK 2mm HM, TYPE A English
- MALE ASSEMBLY, Z-PACK 2mm HM, TYPE A ENG_CD_6345235_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_6345235-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_6345235-1_A.2d_dxf.zip English
- ENG_CVM_CVM_6345235-1_A.3d_igs.zip English
- ENG_CVM_CVM_6345235-1_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-19029_E.pdf English
- Product Specification ENG_SS_108-19082_C.pdf English
