638112-1

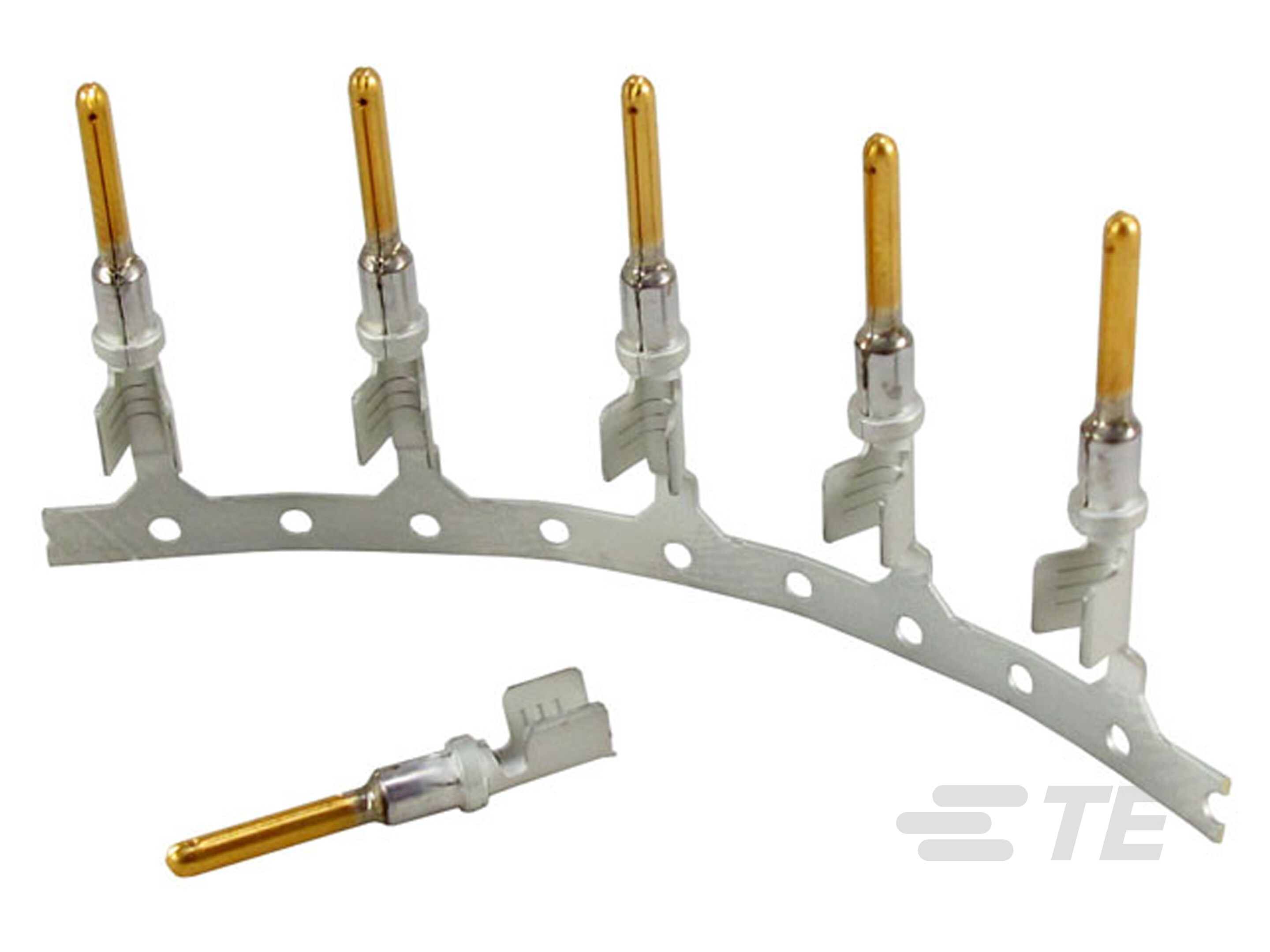

Pin, Pin Diameter 1.59 mm [.062 in], 18 – 14 AWG Wire Size, .823 – 2.08 mm² Wire Size, Gold (Au) Interface Plating, AMPSEAL 16, Automotive Terminals
638112-1
Pin, Pin Diameter 1.59 mm [.062 in], 18 – 14 AWG Wire Size, .823 – 2.08 mm² Wire Size, Gold (Au) Interface Plating, AMPSEAL 16, Automotive Terminals
-
- AMP
- AMPSEAL 16
- TE Internal #: 638112-1
- TE Internal Description: PIN, SF, SIZE 16, 14-18 AWG,NO INS,AU/SN
- All AMPSEAL 16 CONTACTS (35)
-
Packaging Method : Reel
-
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
-
Interface Plating : Gold (Au)
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
-
Wire Size (AWG): 18 – 14
Documents
Product Drawings
- PIN CONTACT, WIRE-TO-WIRE ENG_CD_638112_C5.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_638112-1_M.pdf 3D
- Customer View Model ENG_CVM_CVM_638112-1_M.2d_dxf.zip English
- ENG_CVM_CVM_638112-1_M.3d_igs.zip English
- ENG_CVM_CVM_638112-1_M.3d_stp.zip English
Datasheets & Catalog Pages
- AMPSEAL 16 CONNECTOR SERIES ENG_CS_7-1773982-8_A.pdf English
- ICT Terminals and Connectors Catalogue ENG_DS_1-1773950-7_A.pdf English
- CONNECTOR SELECTOR ENG_DS_1-1773962-8_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-13045_G.pdf English
- Product Specification ENG_SS_108-2422_O1.pdf English
