Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

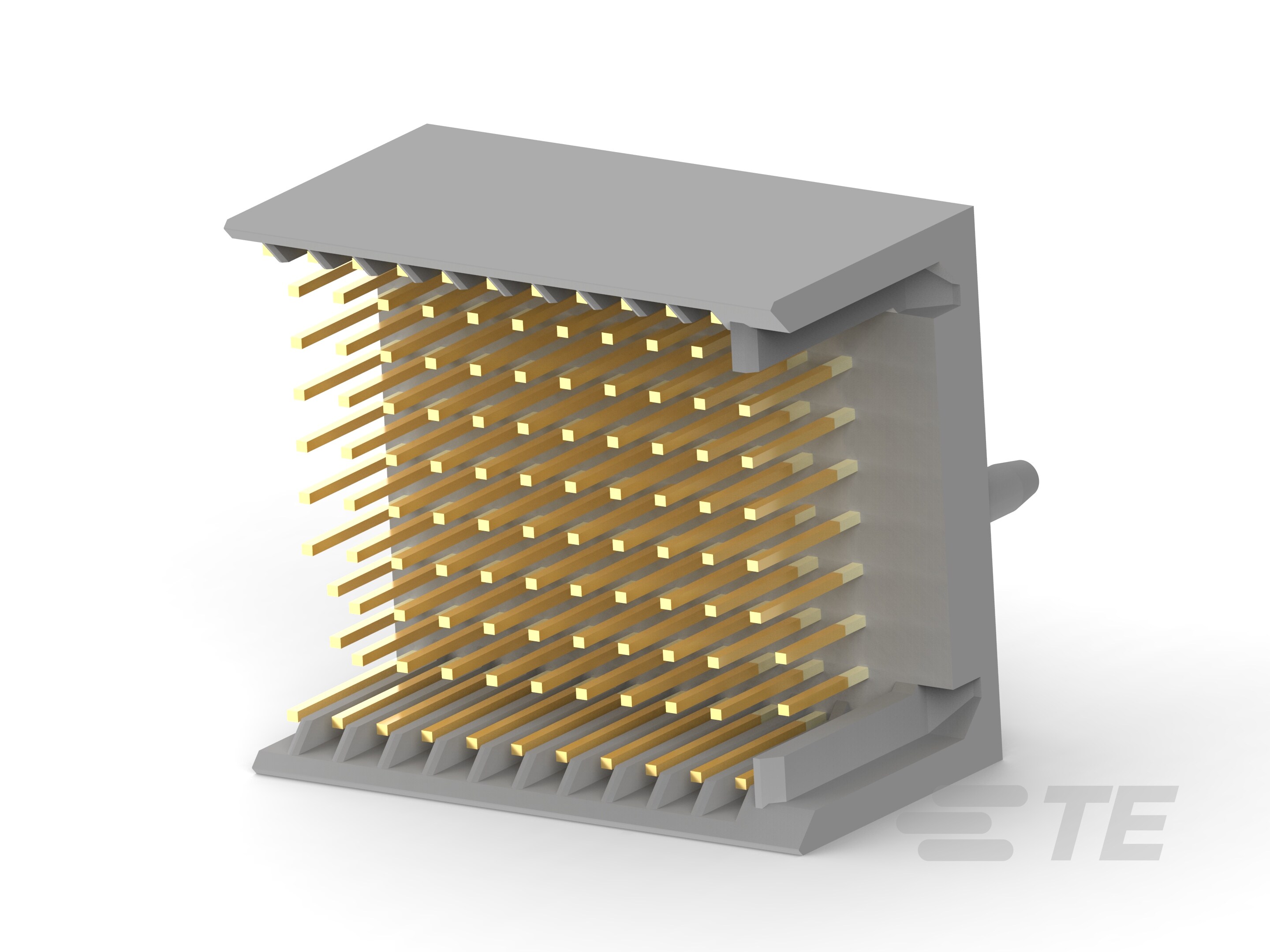

• Connector System : Board-to-Board

• Backplane Interface Type : 2mm HM

• Connector & Contact Terminates To : Printed Circuit Board

• PCB Connector Assembly Type : PCB Mount Header

• Sealable : No

• Housing Material : Polyester - GF

• Centerline (Pitch) : 2 mm [ .078 in ]

• Packaging Quantity : 20

• Packaging Method : Tube

• Contact Type : Pin

• Feedthrough Post Length (mm): 3.7

• CompactPCI Designation : None

• Contact Base Material : Phosphor Bronze

• Contact Mating Area Plating Material : Gold

• Contact Mating Area Plating Material Thickness : .5 µm [ 20 µin ]

• Contact Current Rating (Max) (A): 1.5

• Shielded : No

• Circuit Application : Signal

• Backplane Module Length (mm): 24.9

• Mating Alignment Type : Polarization

• Connector Mounting Type : Board Mount

• Termination Method to PCB : Through Hole - Press-Fit

• Data Rate (Gb/s): ≤1

• Number of Columns : 10

• Number of Rows : 10

• Backplane Architecture : Mezzanine

• Number of Positions : 110

• PCB Mount Orientation : Vertical

• Primary Product Color : Gray

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
