This product is not currently available. For more information, including distributor inventory, please contact us.

695012N001

Active

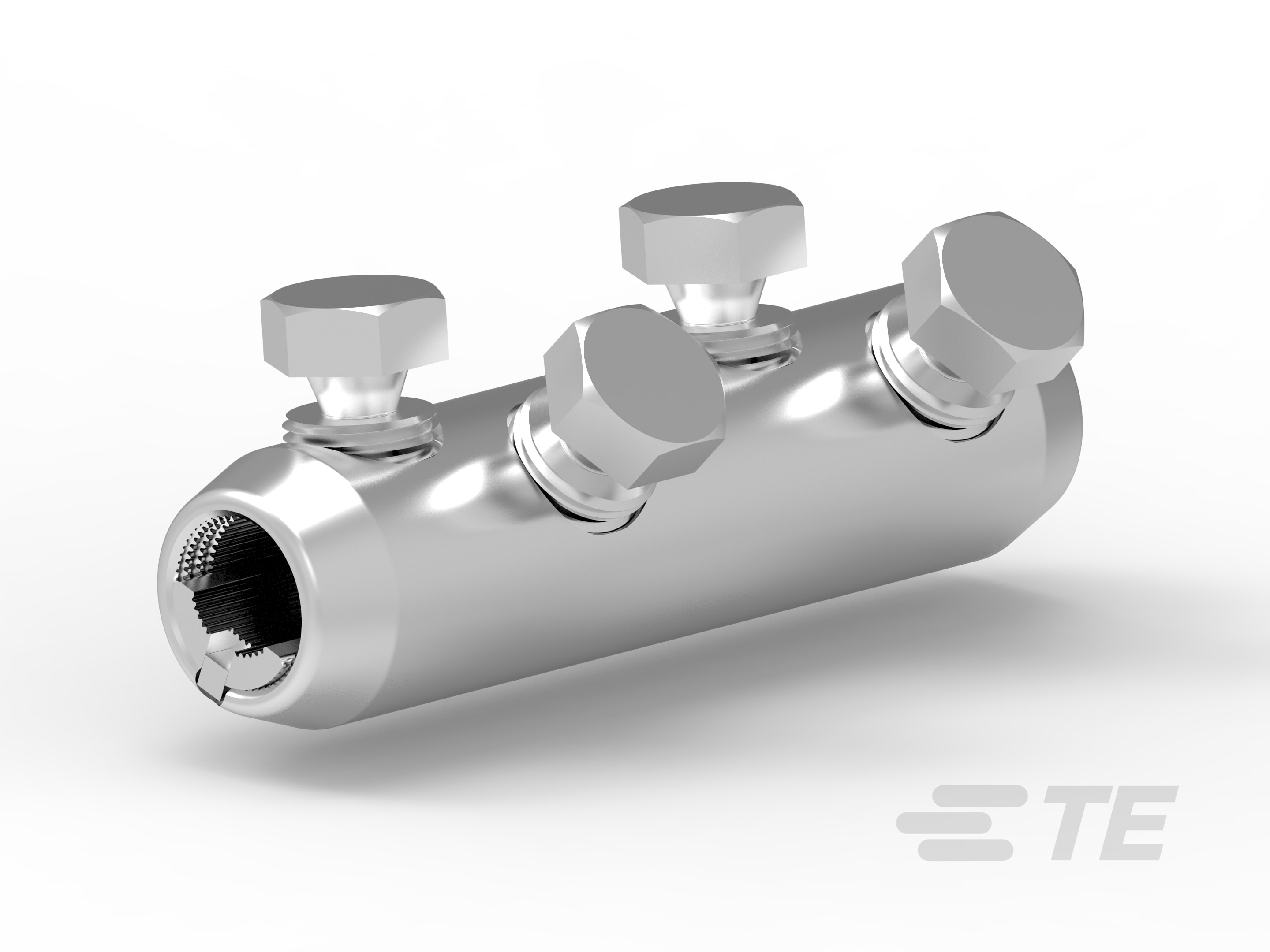

Americas / Asia / China, Shear Bolt, ≤ 42 kV, Aluminum / Copper, Sector / Solid / Stranded, SIMEL BSM, Mechanical Connectors

695012N001

Active

Americas / Asia / China, Shear Bolt, ≤ 42 kV, Aluminum / Copper, Sector / Solid / Stranded, SIMEL BSM, Mechanical Connectors

- SIMEL
- SIMEL BSM

TE Internal #: 695012N001
TE Internal Description: BSM-95/240
Alias #: BSM 95/240 8-1899548-2
All Mechanical Connectors & Repair Sleeves (23)

Primary Product Material : Aluminum Alloy
Conductor Type : Solid, Sector, Stranded
Compatible Conductor Range (AWG/kcmil): 2/0 – 500, 4/0 – 300, 4/0 – 600
Blocked : Yes
Product Availability : China, Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa

See All Features

More Less

Compatible Parts & Tooling

Documents

Product Drawings

BSM-95/240 BSM-95/240-U ENG_CD_1510480_D.pdf English

Datasheets & Catalog Pages

Mechanical Shear Bolt Terminal Lugs BLMT and Connectors BSM ENG_DS_EPP-4273_A.pdf English
MECHANICAL CONNECTORS AND REPAIR SLEEVES BSM ENG_DS_EPP-2287_2303.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Installation Technology : Shear Bolt

Configuration Features

Number of Bolts : 4

Electrical Characteristics

Voltage Class (kV): ≤ 42

Body Features

Primary Product Material : Aluminum Alloy
Conductor Type : Solid, Sector, Stranded
Blocked : Yes
Compatible Conductor Material : Aluminum, Copper

Dimensions

Compatible Conductor Range (AWG/kcmil): 2/0 – 500, 4/0 – 300, 4/0 – 600
Bolt Head Size (Across Flats) (mm): 19
Inside Diameter Range (mm): 20
Compatible Conductor Cross-Section Range (mm²): 70 – 240, 95 – 150, 95 – 300

Operation/Application

Mechanical Connector Product Type : Mechanical Connector

Industry Standards

Compatible With Approved Standards Products : IEC 61238-1 Class A

Product Availability

Product Availability : China, Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa

695012N001

Americas / Asia / China, Shear Bolt, ≤ 42 kV, Aluminum / Copper, Sector / Solid / Stranded, SIMEL BSM, Mechanical Connectors

695012N001

Americas / Asia / China, Shear Bolt, ≤ 42 kV, Aluminum / Copper, Sector / Solid / Stranded, SIMEL BSM, Mechanical Connectors

Primary Product Material : Aluminum Alloy

Conductor Type : Solid, Sector, Stranded

Compatible Conductor Range (AWG/kcmil): 2/0 – 500, 4/0 – 300, 4/0 – 600

Blocked : Yes

Product Availability : China, Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa

Documents

Product Drawings

Datasheets & Catalog Pages

Product Change Notification

Features

Product Type Features

Installation Technology : Shear Bolt

Configuration Features

Number of Bolts : 4

Electrical Characteristics

Voltage Class (kV): ≤ 42

Body Features

Primary Product Material : Aluminum Alloy

Conductor Type : Solid, Sector, Stranded

Blocked : Yes

Compatible Conductor Material : Aluminum, Copper

Dimensions

Compatible Conductor Range (AWG/kcmil): 2/0 – 500, 4/0 – 300, 4/0 – 600

Bolt Head Size (Across Flats) (mm): 19

Inside Diameter Range (mm): 20

Compatible Conductor Cross-Section Range (mm²): 70 – 240, 95 – 150, 95 – 300

Operation/Application

Mechanical Connector Product Type : Mechanical Connector

Industry Standards

Compatible With Approved Standards Products : IEC 61238-1 Class A

Product Availability

Product Availability : China, Americas, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa
