770520-6

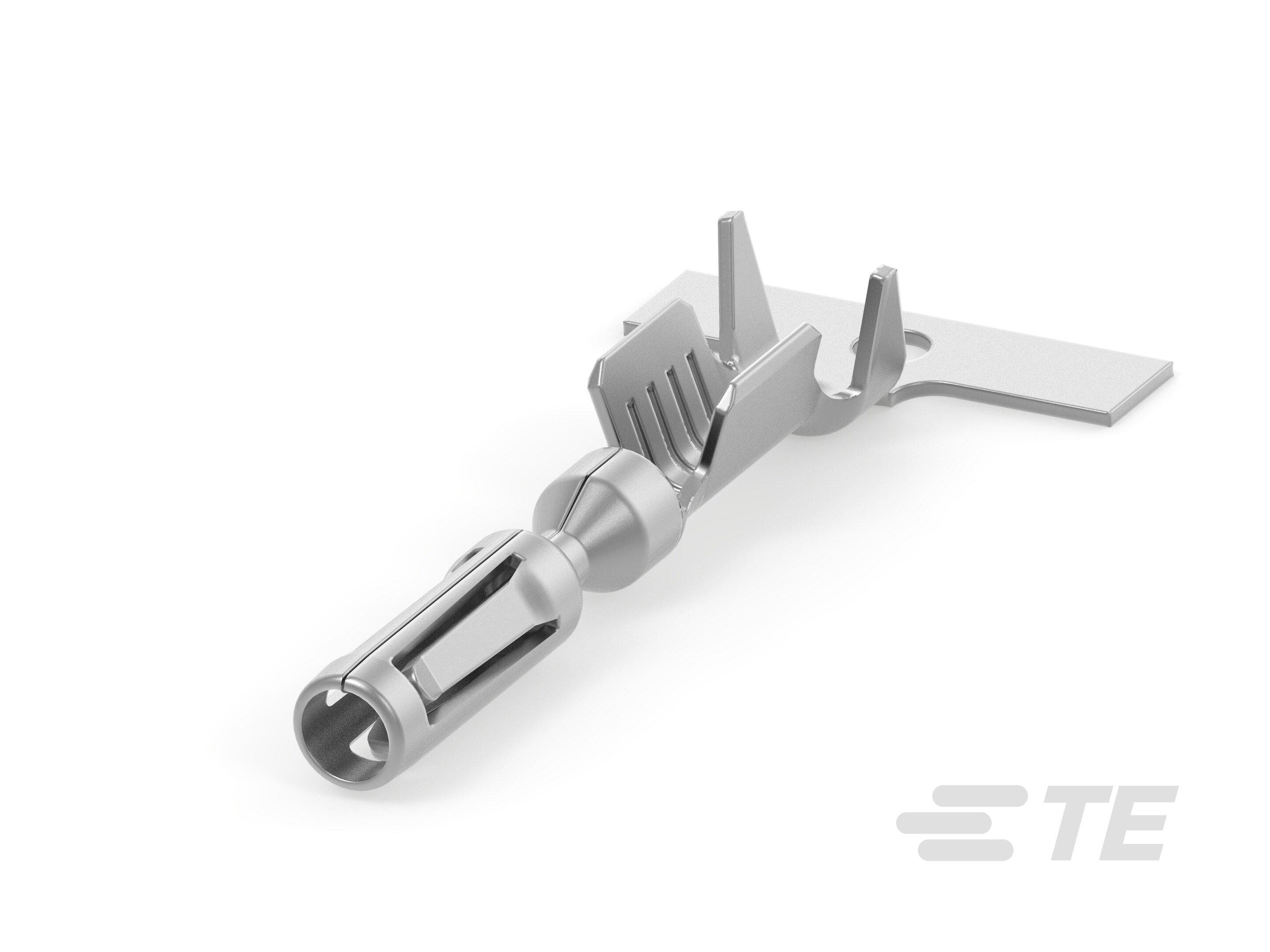

Socket, Pin Diameter 1.3 mm [.051 in], 24 – 22 AWG Wire Size, .204 – .325 mm² Wire Size, Nickel (Ni) Interface Plating, AMPSEAL, Automotive Terminals
770520-6
Socket, Pin Diameter 1.3 mm [.051 in], 24 – 22 AWG Wire Size, .204 – .325 mm² Wire Size, Nickel (Ni) Interface Plating, AMPSEAL, Automotive Terminals
-
- AMP
- AMPSEAL
- TE Internal #: 770520-6
- TE Internal Description: AMPSEAL,TERMINAL,TIN PLATE,22-24AWG WIRE
- All AMPSEAL Crimp Contacts: 1.3 mm (8)
-
Packaging Method : Reel
-
Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]
-
Interface Plating : Nickel (Ni)
-
Operating Temperature (Max) : 105 °C [ 221 °F ]
-
Wire Size (AWG): 24 – 22
