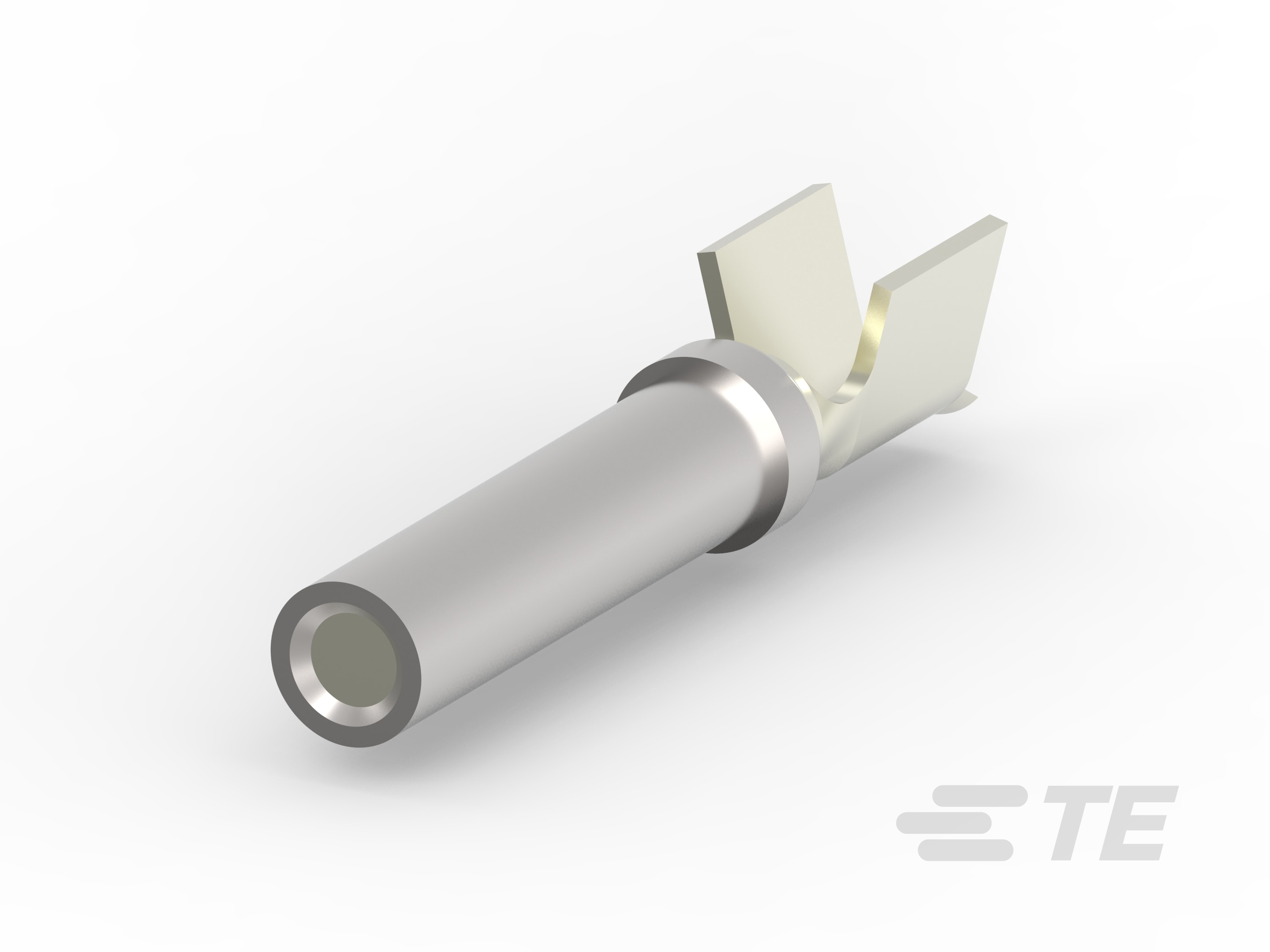

776297-2
Socket Terminal, Pin Diameter 1.59 mm [.062 in], 18 – 14 AWG Wire Size, .823 – 2.08 mm² Wire Size, Nickel (Ni) Interface Plating, AMPSEAL 16
776297-2
Socket Terminal, Pin Diameter 1.59 mm [.062 in], 18 – 14 AWG Wire Size, .823 – 2.08 mm² Wire Size, Nickel (Ni) Interface Plating, AMPSEAL 16
-
- AMP
- AMPSEAL 16
- TE Internal #: 776297-2
- TE Internal Description: ASSEMBLY SOCKET LOOSE PC NICKE
- All AMPSEAL 16 CONTACTS (35)
-
Terminal Type : Socket
-
Mating Pin Diameter : 1.59 mm [ .062 in ]
-
Terminal Transmits : 0 – 24 A (Low Power)
-
Wire Size (AWG): 18 – 14
-
Wire Size (mm²): .823 – 2.08
Documents
Product Drawings
- ASSEMBLY,SOCKET LOOSE PIECE English
- ASSEMBLY,SOCKET LOOSE PIECE ENG_CD_776297_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_776297-2_A.pdf English
- Customer View Model ENG_CVM_776297-2_A.3d_igs.zip English
- ENG_CVM_776297-2_A.3d_stp.zip English
- ENG_CVM_776297-2_A.2d_dxf.zip English
Datasheets & Catalog Pages
- AMPSEAL 16 CONNECTOR SERIES ENG_CS_7-1773982-8_A.pdf English
- ICT Terminals and Connectors Catalogue ENG_DS_1-1773950-7_A.pdf English
- CONNECTOR SELECTOR ENG_DS_1-1773962-8_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-13045_G.pdf English
- Product Specification ENG_SS_108-2422_O1.pdf English
