776300-2

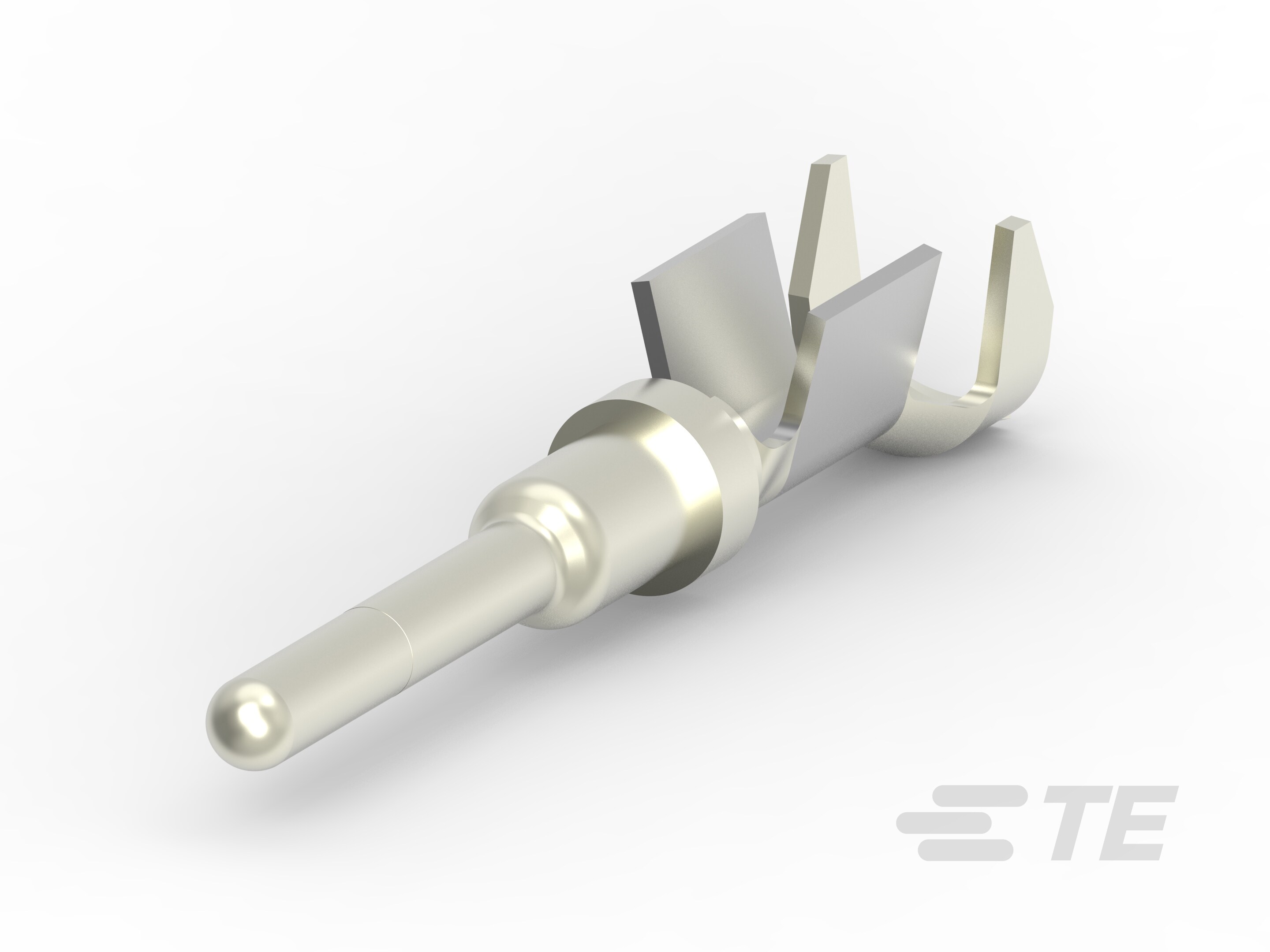

Pin, Pin Diameter 1.59 mm [.062 in], 18 – 14 AWG Wire Size, .823 – 2.08 mm² Wire Size, Nickel (Ni) Interface Plating, AMPSEAL 16, Automotive Terminals
776300-2
Pin, Pin Diameter 1.59 mm [.062 in], 18 – 14 AWG Wire Size, .823 – 2.08 mm² Wire Size, Nickel (Ni) Interface Plating, AMPSEAL 16, Automotive Terminals
-
- AMP
- AMPSEAL 16
- TE Internal #: 776300-2
- TE Internal Description: PIN CONTACT WIRE TO WIRE NICKE
- All AMPSEAL 16 CONTACTS (35)
-
Packaging Method : Bag
-
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
-
Interface Plating : Nickel (Ni)
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
-
Wire Size (AWG): 18 – 14
Documents
Product Drawings
- PIN CONTACT,WIRE-TO-WIRE LOOSE PIECE English
- PIN CONTACT,WIRE-TO-WIRE LOOSE PIECE ENG_CD_776300_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_776300-2_A.pdf English
- Customer View Model ENG_CVM_776300-2_A.3d_igs.zip English
- ENG_CVM_776300-2_A.3d_stp.zip English
- ENG_CVM_776300-2_A.2d_dxf.zip English
Datasheets & Catalog Pages
- AMPSEAL 16 CONNECTOR SERIES ENG_CS_7-1773982-8_A.pdf English
- ICT Terminals and Connectors Catalogue ENG_DS_1-1773950-7_A.pdf English
- CONNECTOR SELECTOR ENG_DS_1-1773962-8_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-13045_G.pdf English
- Product Specification ENG_SS_108-2422_O1.pdf English
