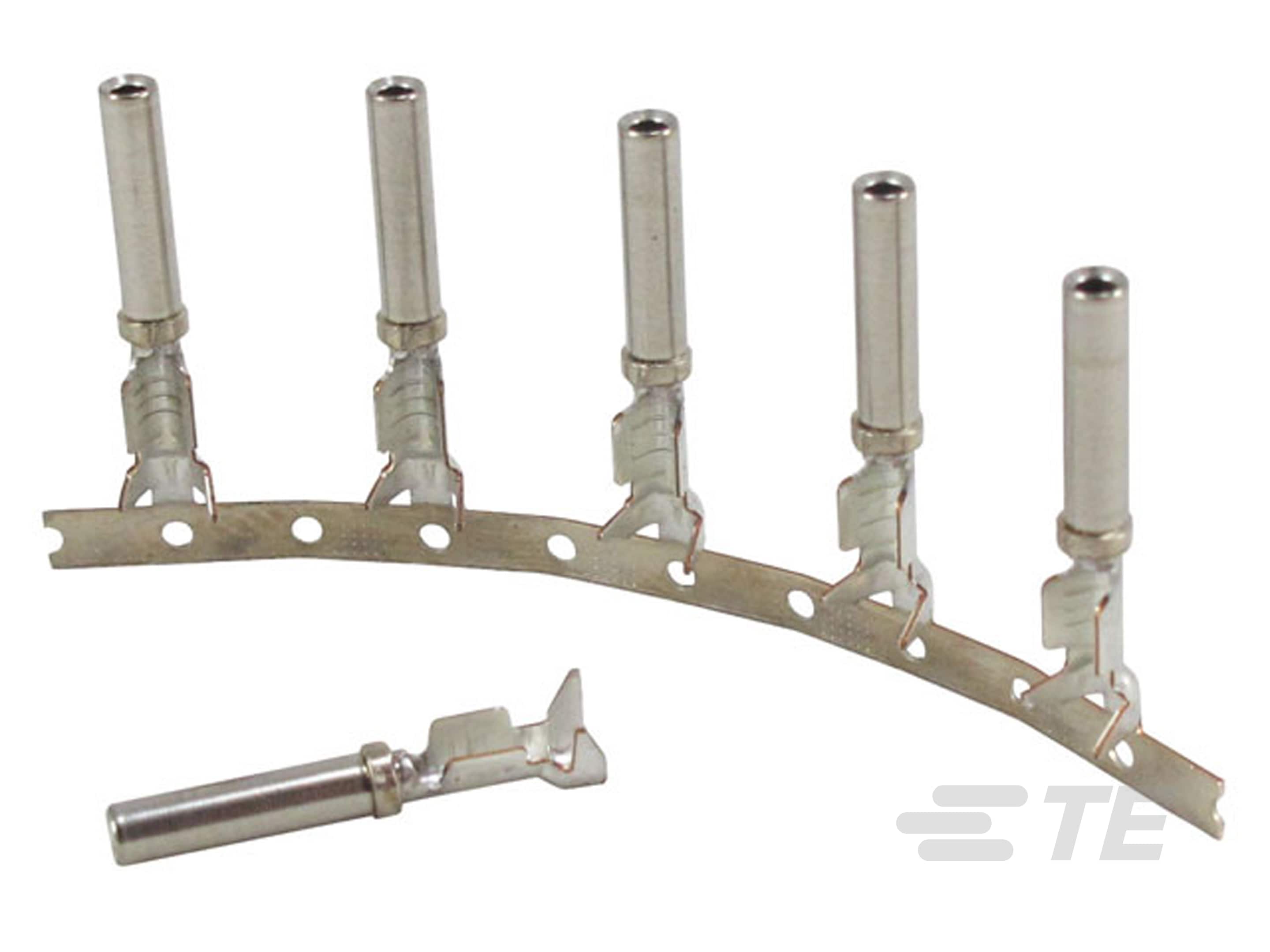

Socket, Pin Diameter 1.59 mm [.062 in], 20 – 18 AWG Wire Size, .52 – .823 mm² Wire Size, Tin (Sn) Interface Plating, AMPSEAL 16, Automotive Terminals
776493-2
Socket, Pin Diameter 1.59 mm [.062 in], 20 – 18 AWG Wire Size, .52 – .823 mm² Wire Size, Tin (Sn) Interface Plating, AMPSEAL 16, Automotive Terminals
-
- AMP
- AMPSEAL 16
- TE Internal #: 776493-2
- TE Internal Description: SOC, SF, SIZE 16, 18-20 AWG, NI/SN
- All AMPSEAL 16 CONTACTS (35)
-
Packaging Method : Reel
-
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
-
Interface Plating : Tin (Sn)
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
-
Wire Size (AWG): 20 – 18
