8-215079-8

Active

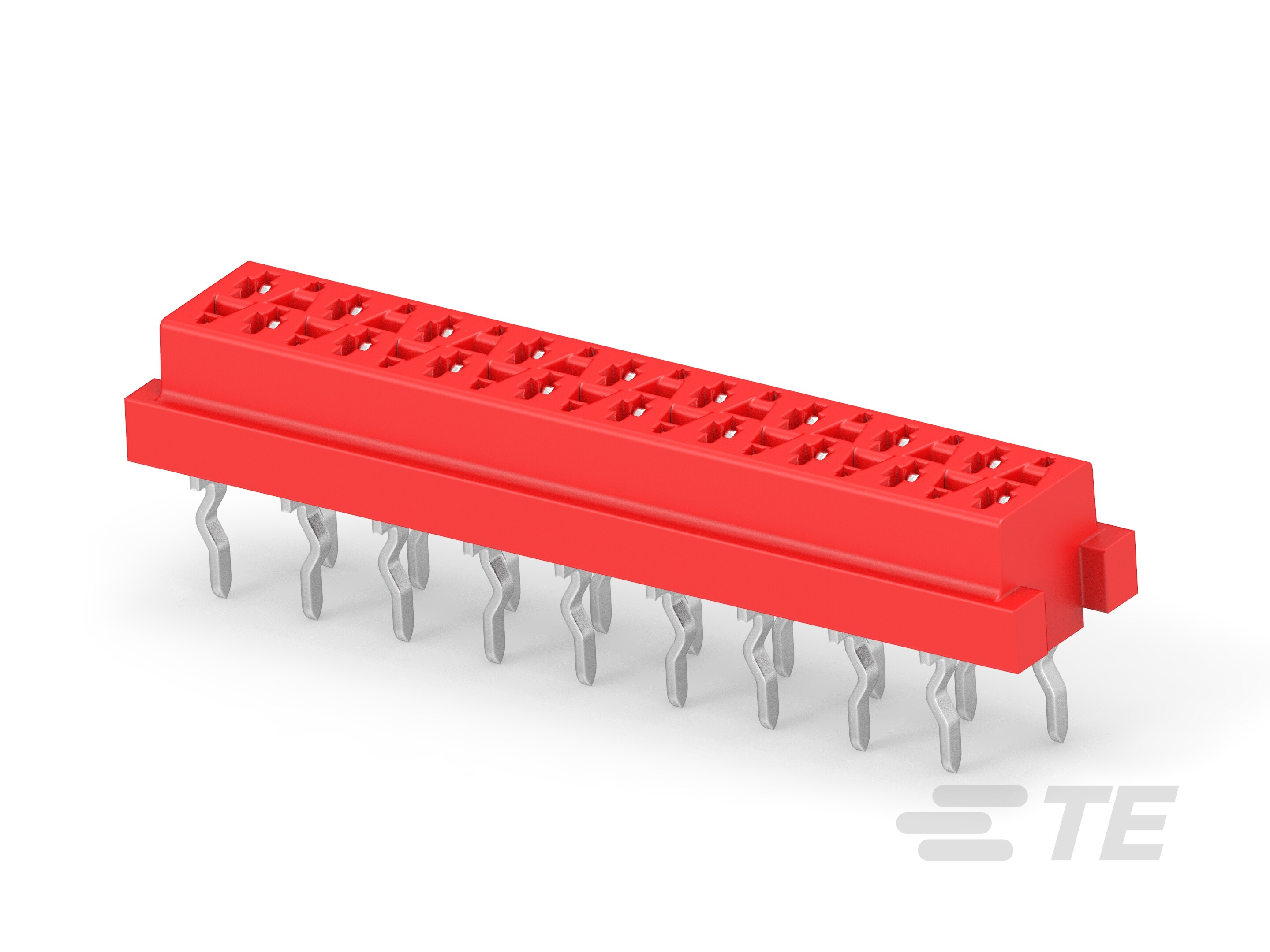

Board-to-Board, 18 Position, 1.27 mm [.05 in] Centerline, Vertical, Through Hole - Solder, 2 Row, Micro-MaTch Industrial, Ribbon Cable Connectors

8-215079-8

Active

Board-to-Board, 18 Position, 1.27 mm [.05 in] Centerline, Vertical, Through Hole - Solder, 2 Row, Micro-MaTch Industrial, Ribbon Cable Connectors

- Micro-MaTch
- Micro-MaTch Industrial

TE Internal #: 8-215079-8
TE Internal Description: MICRO-MATCH FOB.18P
All Female-on-Board Connector, Top Entry (67)

Packaging Method : Box & Carton
Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]
Primary Product Color : Red
PCB Contact Termination Area Plating Material Finish : Matte

See All Features

More Less

Get Free Samples
Compatible Parts & Tooling

Documents

Product Drawings

CONNECTOR, FEMALE-ON-BOARD TOP-ENTRY, THRU-HOLE, Micro-MaTch ENG_CD_215079_Y1.pdf English

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_8-215079-8_T.pdf 3D
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
PCB Design Download symbol & footprint (SnapEDA)
Customer View Model ENG_CVM_CVM_8-215079-8_T.2d_dxf.zip English
ENG_CVM_CVM_8-215079-8_T.3d_igs.zip English
ENG_CVM_CVM_8-215079-8_T.3d_stp.zip English

Datasheets & Catalog Pages

Micro-MaTch Catalog ENG_CS_1307822_2-05.pdf English
ENG_CS_82012_Ribbon_Cable_Interconnect_Sol_0412.pdf English
Centerline Micro-Match Connector Series ENG_DS_4-1773457-1_050_Micro_MaTch_0416.pdf English

Product Specifications

Product Specification ENG_SS_108-19052_H.pdf English
Qualification Test Report ENG_SS_501-19093_O_501-19093.pdf English

Agency Approvals

UL Report ENG_AAD_UL_E28476_19880404_B.pdf English

Product And Material Test Reports

Test report Wire-To-Board connector ENG_PMTR_R041-1664_O_R0411664.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Connector & Contact Terminates To : Printed Circuit Board
Connector & Housing Type : Receptacle
Ribbon Cable Connector Type : Female-on-Board
Connector Product Type : Connector Assembly
Connector System : Board-to-Board
Ribbon Cable Connector Header Type : Shrouded

Configuration Features

Number of Rows : 2
Number of Positions : 18
PCB Mount Orientation : Vertical

Electrical Characteristics

Operating Voltage (VDC): 100
Operating Voltage (VAC): 100
Insulation Resistance (MΩ): 1000

Body Features

Primary Product Color : Red
Connector Profile : Standard
Daisy Chain : Without

Contact Features

PCB Contact Termination Area Plating Material Finish : Matte
PCB Contact Termination Area Plating Material Thickness : 3 – 5 µm [ 118.11 – 196.85 µin ]
Contact Base Material : Phosphor Bronze
PCB Contact Termination Area Plating Material : Tin
Contact Underplating Material : Nickel
Contact Current Rating (Max) (A): 1
Contact Type : Socket
Contact Shape & Form : Dual Beam
Contact Mating Area Plating Material Thickness : 3 – 5 µm [ 118.11 – 196.85 µin ]
Contact Mating Area Plating Material : Tin

Termination Features

Termination Post & Tail Length : 3.1 mm [ .122 in ]
Rectangular Termination Post & Tail Width : .5 mm [ .02 in ]
Rectangular Termination Post & Tail Thickness : .25 mm [ .01 in ]

Mechanical Attachment

Connector Mounting Type : Board Mount
PCB Mount Alignment : Without
PCB Mount Retention Type : Kinked Solder Tails
PCB Mount Retention : With
Mating Alignment : With
Contact Retention Type Within Housing : Press-Fit
Mating Retention : With
Mating Retention Type : Contact Friction

Housing Features

Centerline (Pitch) : 1.27 mm [ .05 in ]
Housing Material : PBT GF
Mating Entry Location : Top

Dimensions

Connector Height : 4 mm [ .16 in ]
Row-to-Row Spacing : 2 mm [ .059 in ]
PCB Thickness (Recommended) : 1.6 mm [ .062 in ]
Connector Length : 24.9 mm [ .98 in ]

Usage Conditions

Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]

Operation/Application

Solder Process Feature : Board Standoff
Circuit Application : Signal

Industry Standards

Compatible With Approved Standards Products : UL E28476
Compatible With Agency/Standards Products : UL
UL Flammability Rating : UL 94V-0
UL Rating : Recognized

Packaging Features

Packaging Method : Box & Carton
Packaging Quantity : 250
