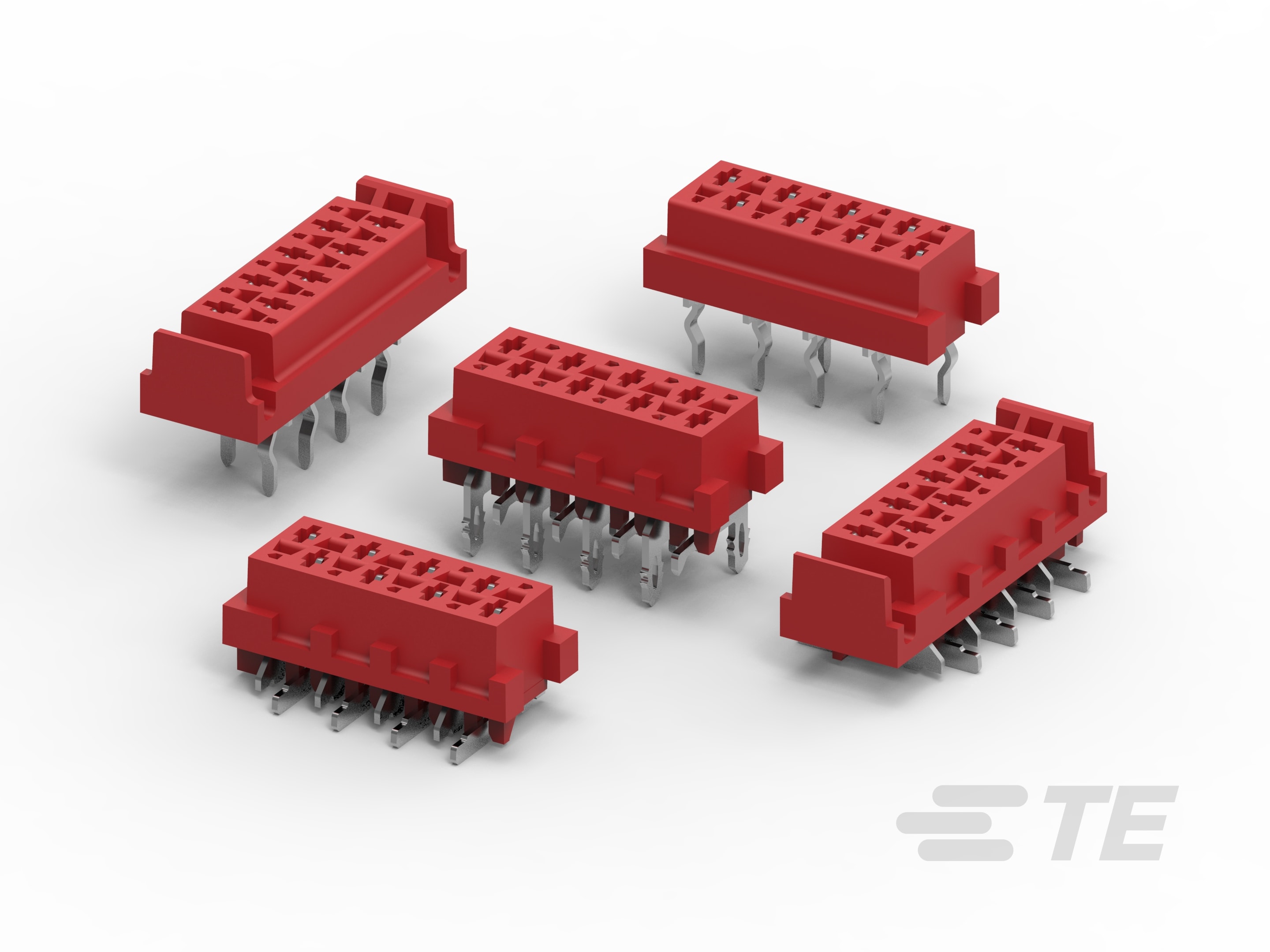

Female-on-Board Connector, Top Entry

Female-on-Board Connector, Top Entry-CAT-M5833-F3492A
  • Micro-MaTch
|
  • Micro-MaTch Industrial
Incorporates Micro-MaTch contact spring system with indented solder legs for increased retention.
More Less

Product Features

  • Connector System : Board-to-Board, Wire-to-Board

  • Number of Positions : 12, 6, 8, 16, 10, 14, 20, 18, 4, 24

  • Centerline (Pitch) : 1.27 mm [ .05 in ]

  • PCB Mount Retention : Without, With

  • PCB Mount Retention Type : Kinked Solder Tails

Available from

LADD Inc
Overview

Female on board connector top entry  incorporates the AMP Micro-MaTch contact spring system and is designed to be soldered onto PC Boards. The solder legs are intented, providing firm retention of the connector before and during soldering operations. The top entry female connector does not have any polarizing features. Therefore, the orientation of the connector to PC board is irrelevant.

1.27

mm, one of the smallest system available

2N

Contact Force

UL

Approval

Features

  • Wire connectors supplied on-tape and suitable for mass termination of 28 AWG [0.08 mm2 to 0.09 mm2] ribbon cable.
  • Tin plated contact design.
  • Gas tight connections.
  • Fretting corrosion resistant.
  • Full range of application tooling from hand tool to fully automated equipment

Applications

  • Production & Material Handling equipment
  • Control Units
  • Robots & Motors
  • Central Heating Units
  • Car Radios
  • Navigation Systems
  1. The Micro-Match Contact System (English)

The Micro-MaTch contact helps prevent fretting corrosion, the traditional failure mode in tin-plated connections. Relative movements caused by vibrations/thermal expansion can be prevented so that a gas tight connection can make the Micro-MaTch contact spring system fretting corrosion resistant. See how the unique contact system works.

The Micro-Match Contact System Video
Micro-MaTch Miniature Ribbon Cable Connectors

Product Group

Micro-MaTch Miniature Ribbon Cable Connectors

Our miniature Micro-MaTch connector's unique contact-spring system helps prevent fretting corrosion.
Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Box & Carton, Reel

  • Packaging Quantity  250, 900, 2500

Industry Standards

  • UL Rating  Recognized

  • Compatible With Approved Standards Products  UL E28476

  • UL Flammability Rating  UL 94V-0

  • Compatible With Agency/Standards Products  UL

Operation/Application

  • Assembly Process Feature  Vacuum Tape

  • Solder Process Feature  Board Standoff

  • Circuit Application  Signal

Mechanical Attachment

  • PCB Mount Alignment  Without

  • Contact Retention Type Within Housing  Press-Fit

  • Mating Alignment  Without, With

  • PCB Mount Retention  Without, With

  • PCB Mount Retention Type  Kinked Solder Tails

  • Mating Alignment Type  Polarization

  • Mating Retention  With

  • Mating Retention Type  Contact Friction

  • Connector Mounting Type  Board Mount

Contact Features

  • Contact Shape & Form  Dual Beam

  • Contact Type  Socket

  • Contact Mating Area Plating Material Thickness  3 – 5 µm [ 118.11 – 196.85 µin ]

  • Contact Base Material  Phosphor Bronze

  • PCB Contact Termination Area Plating Material Finish  Matte

  • PCB Contact Termination Area Plating Material Thickness  3 – 5 µm [ 118.11 – 196.85 µin ]

  • PCB Contact Termination Area Plating Material  Tin

  • Contact Underplating Material  Nickel

  • Contact Mating Area Plating Material  Tin

  • Contact Current Rating (Max) (A) 1.5, 1

Dimensions

  • Connector Height (mm) 4, 5.3, 6.9, 5

  • Connector Height (in) .16, .21, .2, .27

  • Connector Length (mm) 9.7, 27.5, 19.8, 30, 24.9, 35, 22.4, 17.3, 7.1, 14.7, 12.2, 27.4

  • Connector Length (in) .98, 1.181, .382, .381, .681, 1.07, .578, .881, .48, 1.377, .279, .38, 1.078, 1.18, .779

  • PCB Thickness (Recommended)  1.6 mm [ .062 in ]

  • Row-to-Row Spacing  2 mm [ .059 in ]

Housing Features

  • Housing Material  PA 4.6, PBT GF

  • Mating Entry Location  Top

  • Centerline (Pitch)  1.27 mm [ .05 in ]

Body Features

  • Daisy Chain  Without

  • Primary Product Color  Red

  • Connector Profile  Standard

Electrical Characteristics

  • Operating Voltage (VAC) 100

  • Operating Voltage (VDC) 100

  • Insulation Resistance (MΩ) 1000

Termination Features

  • Rectangular Termination Post & Tail Thickness (mm) .25, .3

  • Rectangular Termination Post & Tail Thickness (in) .012, .01

  • Rectangular Termination Post & Tail Width (mm) .5, 1.2, .75

  • Rectangular Termination Post & Tail Width (in) .029, .047, .02

  • Termination Post & Tail Length (mm) 3.1, 5.3, 2.4

  • Termination Post & Tail Length (in) .208, .122, .094

  • Termination Method to PCB  Surface Mount, Through Hole - Solder, Through Hole - Press-Fit

Product Type Features

  • Connector Product Type  Connector Assembly

  • Ribbon Cable Connector Header Type  Shrouded

  • Ribbon Cable Connector Type  Female-on-Board

  • Connector System  Board-to-Board, Wire-to-Board

  • Connector & Housing Type  Receptacle

  • Connector & Contact Terminates To  Printed Circuit Board

Configuration Features

  • Number of Positions  12, 6, 8, 16, 10, 14, 20, 18, 4, 24

  • PCB Mount Orientation  Vertical

  • Number of Rows  2

Usage Conditions

  • Operating Temperature Range  -40 – 105 °C [ -40 – 221 °F ]

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-M5833-F3492A
