8-31894-1

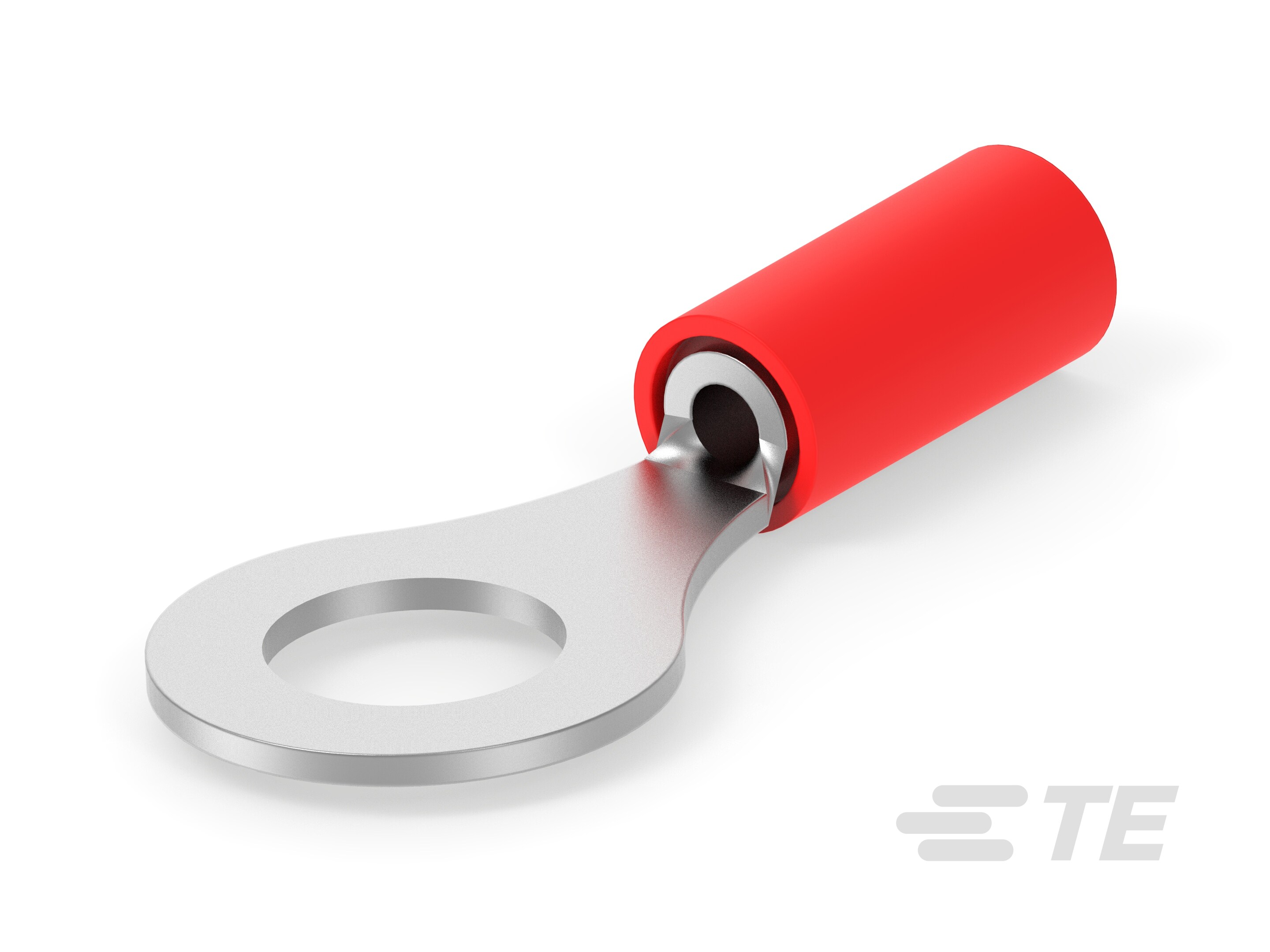

Closed Ring Tongue Terminal, 22 AWG, 1/4 / M6 Stud Size, 6.73 mm [.265 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated, PIDG
8-31894-1
Closed Ring Tongue Terminal, 22 AWG, 1/4 / M6 Stud Size, 6.73 mm [.265 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated, PIDG
-
- PIDG
- TE Internal #: 8-31894-1
- TE Internal Description: PIDG R 22-16 COMM 22-18MIL 1/4
- Alias #: AMPS-8-0031894-1 F37581-000
- All PIDG Ring Tongue Terminals (411)
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 22
-
Wire Size (mm²): .3 – 1.42
-
Wire Size (CMA): 509 – 3260
-
Stud Size : 1/4, M6
Documents
Product Drawings
- TERMINAL, RING TONGUE, PIDG , WIRE SIZE: 22-16 AWG ENG_CD_31894_V3.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_8-31894-1_AE.pdf 3D
- Customer View Model ENG_CVM_CVM_8-31894-1_AE.2d_dxf.zip English
- ENG_CVM_CVM_8-31894-1_AE.3d_igs.zip English
- ENG_CVM_CVM_8-31894-1_AE.3d_stp.zip English
Agency Approvals
- UL Report ENG_AAD_UL_E13288_19791001_C.pdf English
