8-36160-1

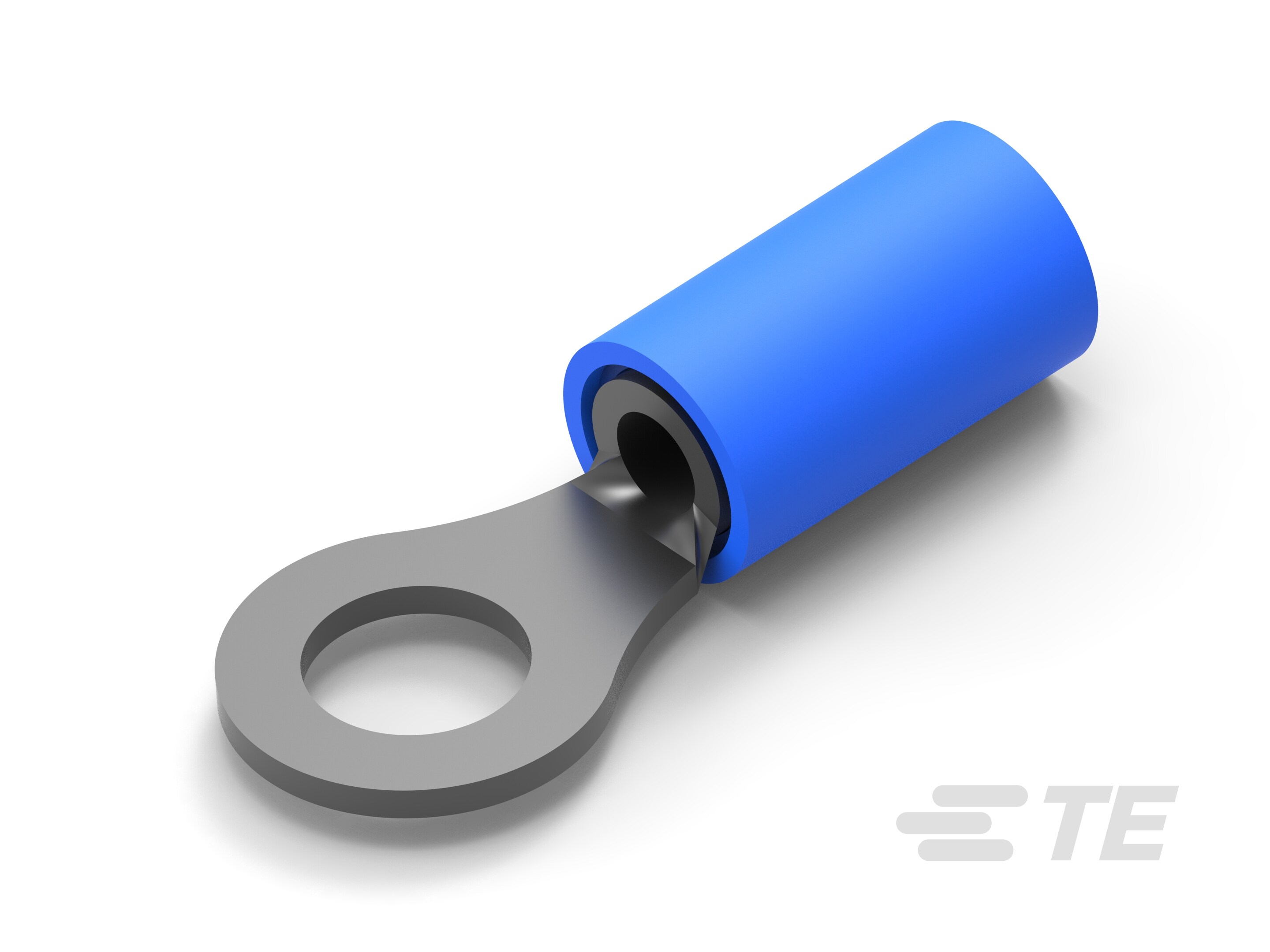

Closed Ring Tongue Terminal, 16 – 14 AWG, #10 Stud Size, 5 mm [.197 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated, PIDG
8-36160-1
Closed Ring Tongue Terminal, 16 – 14 AWG, #10 Stud Size, 5 mm [.197 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated, PIDG
-
- PIDG
- TE Internal #: 8-36160-1
- TE Internal Description: TERMINAL,PIDG R 16-14 10
- Alias #: AMPS-8-0036160-1 E67462-000
- All PIDG Ring Tongue Terminals (410)
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 16 – 14
-
Wire Size (mm²): 1.04 – 2.62
-
Wire Size (CMA): 2050 – 5180
-
Stud Size : 10
Documents
Product Drawings
- TERMINAL, RING TONGUE, PIDG , WIRE SIZE: 16-14 AWG ENG_CD_36160_P.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_8-36160-1_W.pdf 3D
- Customer View Model ENG_CVM_CVM_8-36160-1_W.2d_dxf.zip English
- ENG_CVM_CVM_8-36160-1_W.3d_igs.zip English
- ENG_CVM_CVM_8-36160-1_W.3d_stp.zip English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-2049-4_P.pdf English
