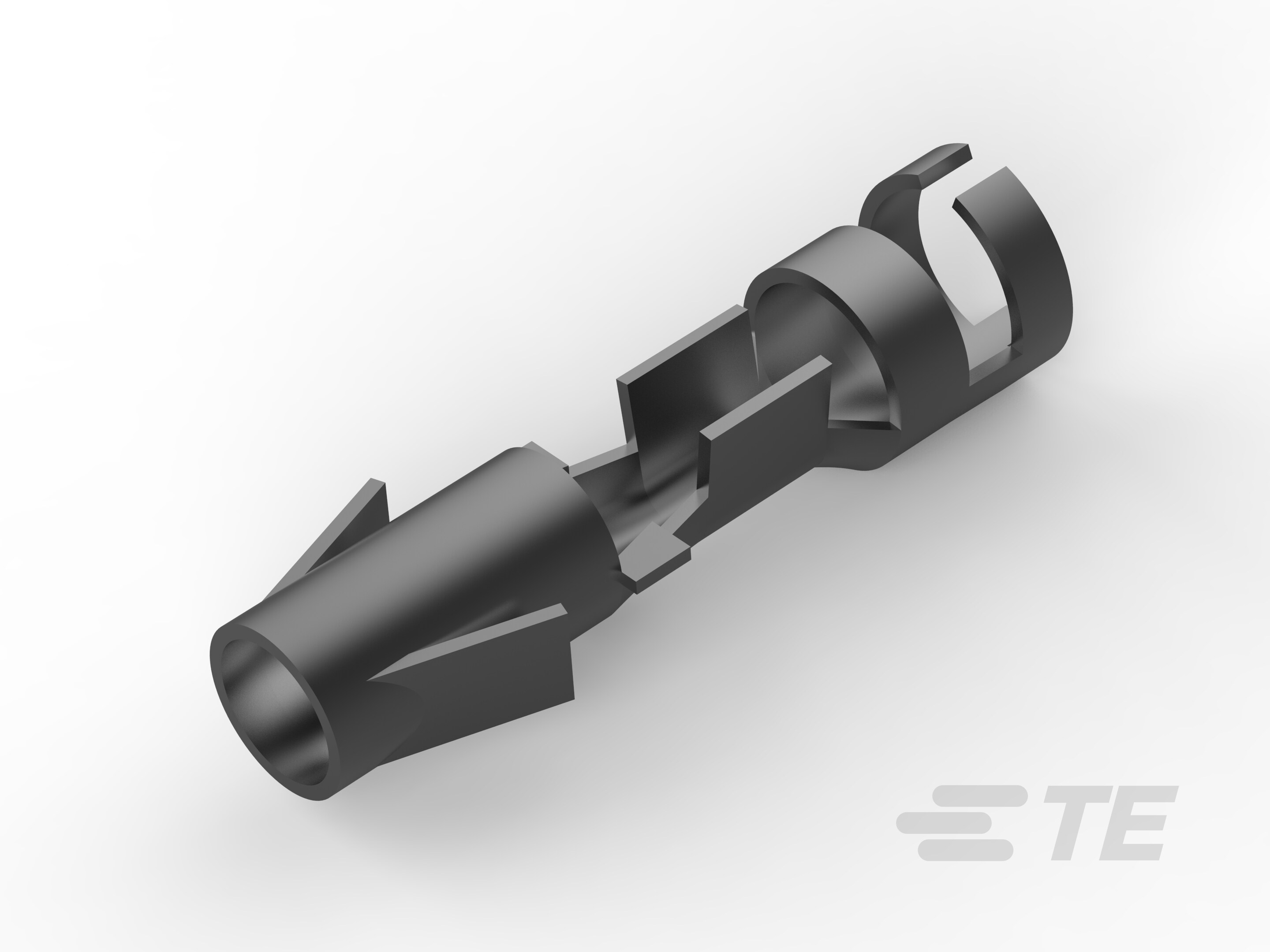

925661-2
Socket Contact, Tin (Sn), 250 VAC, Locking Lance Contact Retention, 20 – 14 AWG, .5 – 2 mm² Wire, Crimp, Phosphor Bronze, Power, 0.140 MATE-N-LOK
925661-2
Socket Contact, Tin (Sn), 250 VAC, Locking Lance Contact Retention, 20 – 14 AWG, .5 – 2 mm² Wire, Crimp, Phosphor Bronze, Power, 0.140 MATE-N-LOK
-
- MATE-N-LOK
- 0.140 MATE-N-LOK
- TE Internal #: 925661-2
- TE Internal Description: .140 DIA SOCKET
- Alias #: AMP-0-0925661-2 E43526-000
-
Contact Type : Socket
-
Contact Mating Area Plating Material : Tin (Sn)
-
Wire Contact Termination Area Plating Material : Pre-Tin
-
Operating Voltage (VAC): 250
-
Contact Retention Within Housing : With
Documents
Product Drawings
- .140 DIA SOCKET ENG_CD_925661_Y2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_925661-2_Y_c-925661-2-y-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_925661-2_Y_c-925661-2-y.2d_dxf.zip English
- ENG_CVM_CVM_925661-2_Y_c-925661-2-y.3d_igs.zip English
- ENG_CVM_CVM_925661-2_Y_c-925661-2-y.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-1032_C.pdf English
