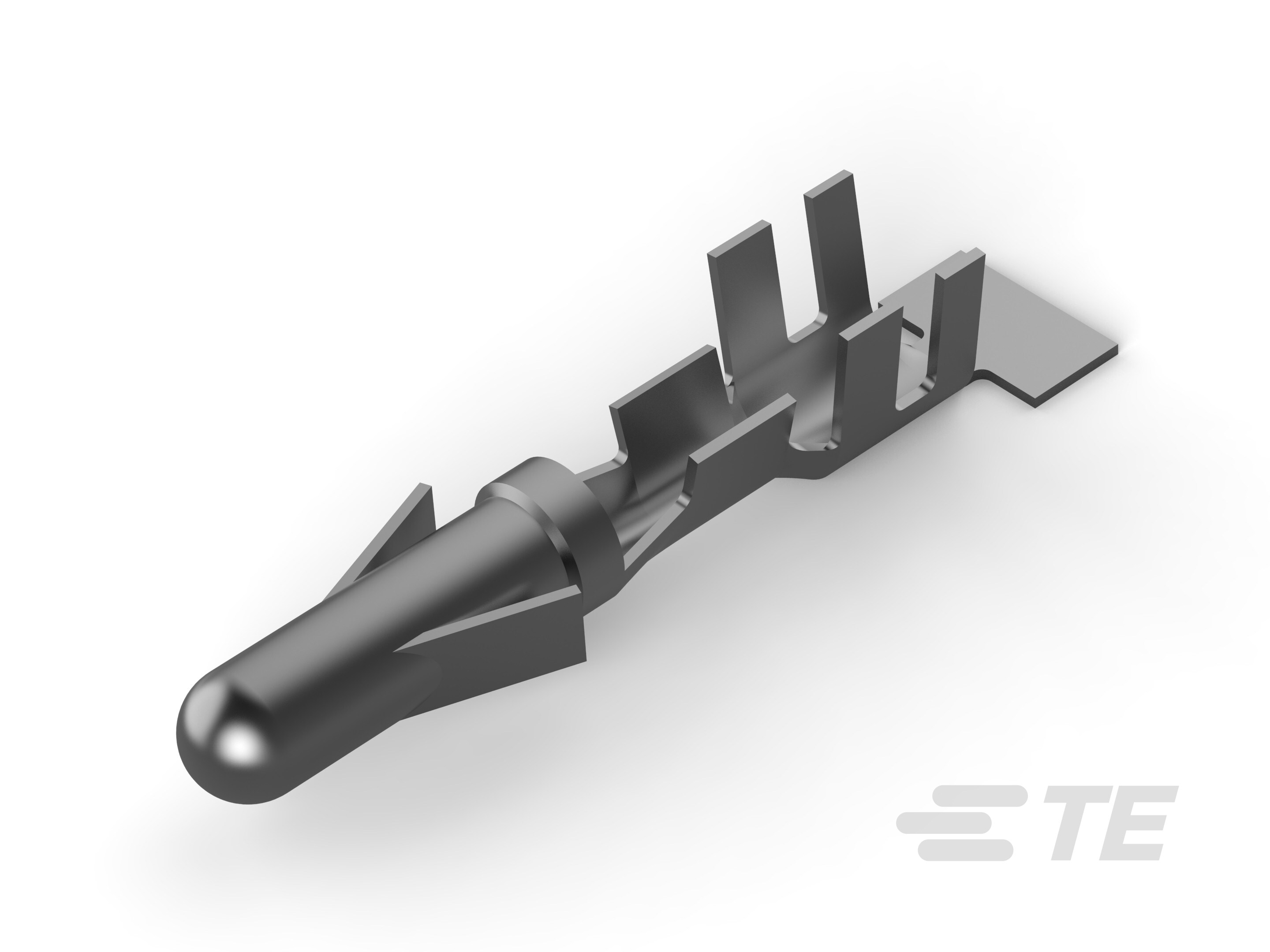

925715-1
Pin Contact, Tin, 250 VAC, Locking Lance Contact Retention, 20 – 14 AWG Wire Size, .5 – 2 mm² Wire Size, Crimp, Brass, Power, Commercial MATE-N-LOK
925715-1
Pin Contact, Tin, 250 VAC, Locking Lance Contact Retention, 20 – 14 AWG Wire Size, .5 – 2 mm² Wire Size, Crimp, Brass, Power, Commercial MATE-N-LOK
-
- MATE-N-LOK
- Commercial MATE-N-LOK
- TE Internal #: 925715-1
- TE Internal Description: M-N-L PIN TPBR
-
Packaging Method : Reel
-
Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]
-
Wire Size (AWG): 20 – 14
-
Contact Orientation : Straight
-
Wire Insulation Support : With
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_925715-1_Y.pdf English
- Customer View Model ENG_CVM_925715-1_Y.3d_igs.zip English
- ENG_CVM_925715-1_Y.3d_stp.zip English
- ENG_CVM_925715-1_Y.2d_dxf.zip English
Product Specifications
- Product Specification ENG_SS_108-1032_C.pdf English
