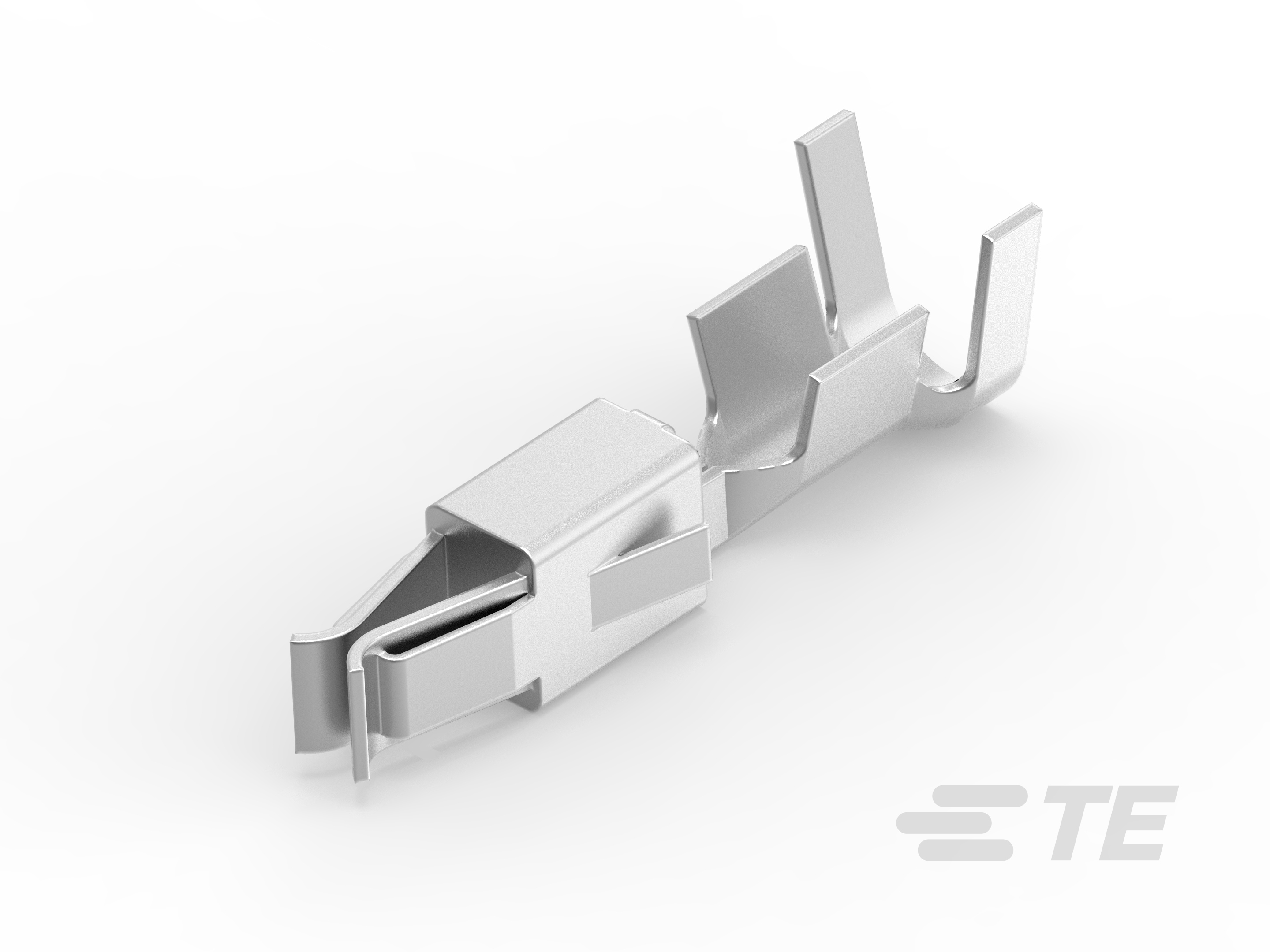

927773-1
Receptacle Terminal, Mating Tab Width 2.8 mm [.11 in], Tab Thickness .8 mm [.031 in], 16 – 14 AWG Wire Size, 1 – 2.5 mm² Wire Size, Junior Timer
927773-1
Receptacle Terminal, Mating Tab Width 2.8 mm [.11 in], Tab Thickness .8 mm [.031 in], 16 – 14 AWG Wire Size, 1 – 2.5 mm² Wire Size, Junior Timer
-
- AMP
- Junior Timer
- TE Internal #: 927773-1
- TE Internal Description: JPT REC 2.8 Contact SRC Sn
- All TIMER, RECEPTACLE AND TAB (278)
-
Terminal Type : Receptacle
-
Mating Tab Width : 2.8 mm [ .11 in ]
-
Mating Tab Thickness : .8 mm [ .031 in ]
-
Terminal Transmits : 25 – 40 A (Power)
-
Wire Size (AWG): 16 – 14
Documents
Product Drawings
- JUNIOR-POWER-TIMER CONTACT JUNIOR-POWER-TIMER CONTACT ENG_CD_927773_P2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_927773-1_A9.pdf English
- Customer View Model ENG_CVM_927773-1_A9.3d_igs.zip English
- ENG_CVM_927773-1_A9.3d_stp.zip English
- ENG_CVM_927773-1_A9.2d_dxf.zip English
Product Specifications
- Application Specification GER_SS_114-18022_N.pdf German
- ENG_SS_114-18022-20_L.pdf English
