Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

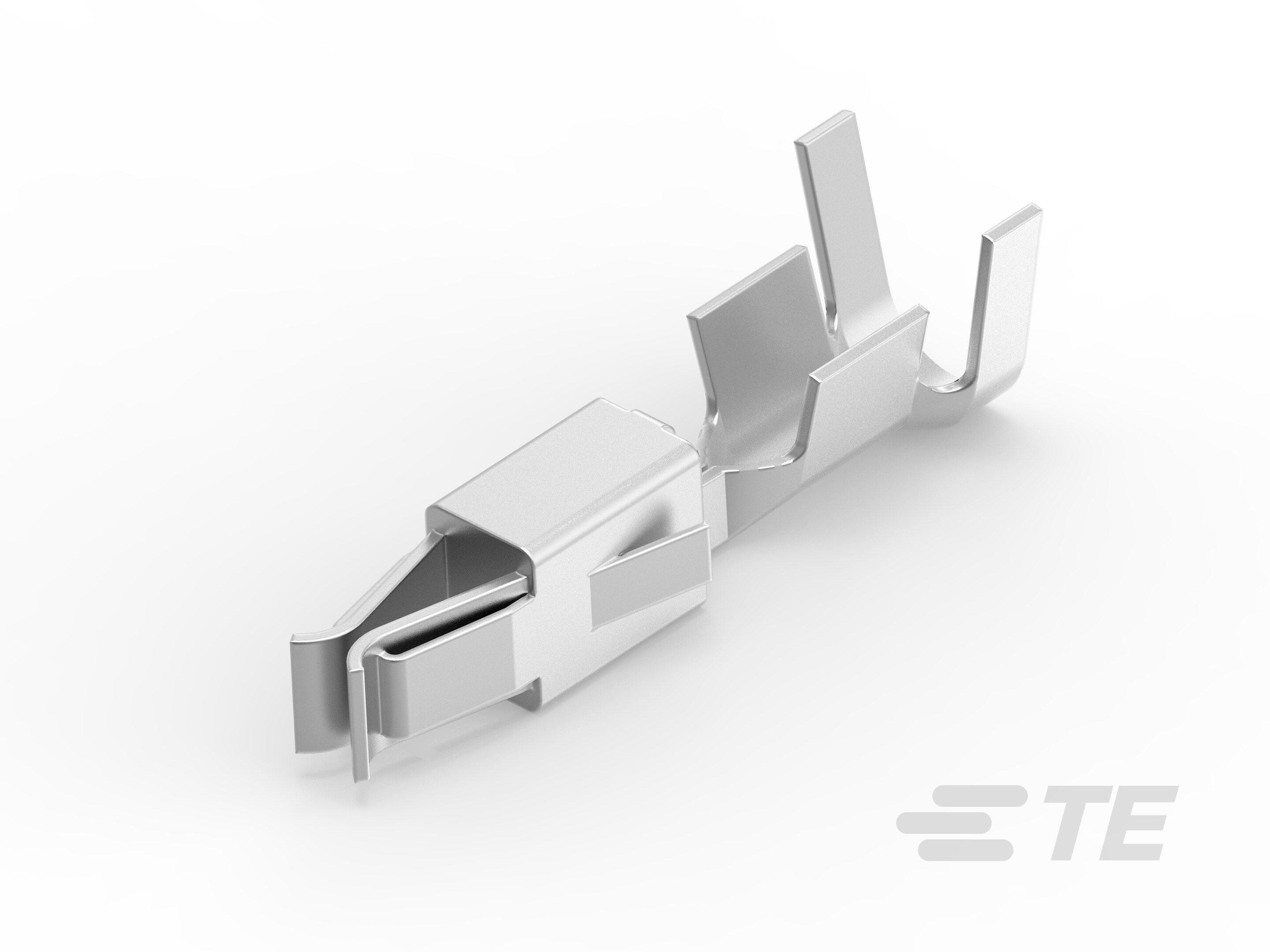

• Primary Locking Feature : Locking Lance

• Sealable : No

• Receptacle Style : 180°

• Interface Plating : Tin (Sn)

• Mating Tab Thickness : .8 mm [ .031 in ]

• Terminal Type : Receptacle

• Mating Tab Width : 2.8 mm [ .11 in ]

• Contact Fabrication : Stamped & Formed

• Typical Current Rating (A): 30

• Wire Contact Termination Area Plating Material : Tin

• Contact Size : 2.8mm

• Crimp Type : F-Crimp

• Product Terminates To : Wire

• Termination Method to Wire & Cable : Crimp

• Wire Size (AWG): 17 – 13

• Tab Length : 18.8 mm [ .74 in ]

• Wire Size Search (mm²): 1, 1.25, 1.5, 2, 2.5

• Compatible Insulation Diameter Range : 2.7 – 4.1 mm [ .106 – .161 in ]

• Wire Size (mm²): 1 – 2.5

• Wire Size Search (AWG): 15, 16, 14, 13, 17

• Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]

• Operating Temperature (Max) : 130 °C [ 266 °F ]

• Insulation Option : Uninsulated

• Compatible With Wire Base Material : Copper

• Packaging Method : Reel

• Packaging Quantity : 3000
