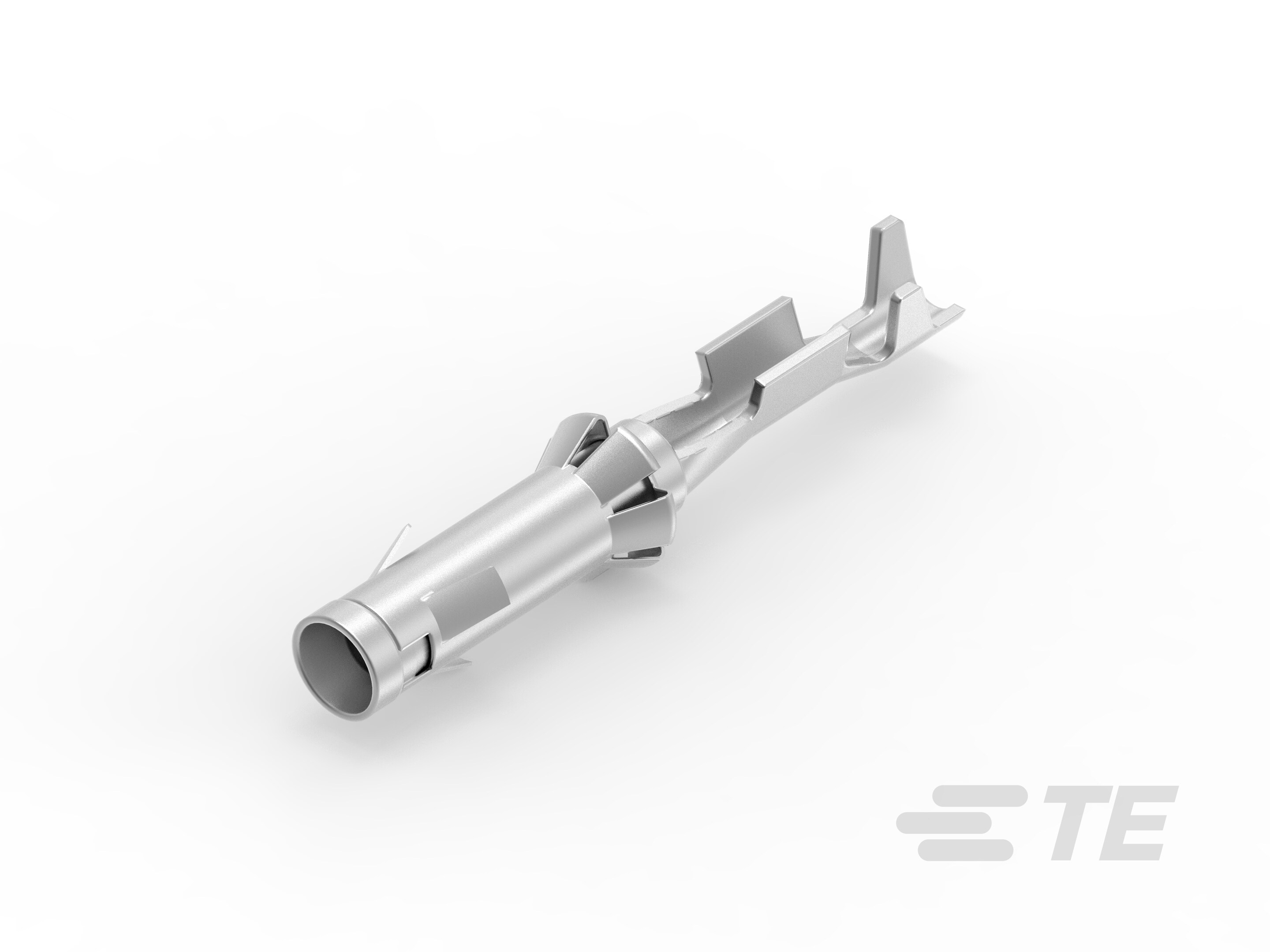

Socket Terminal, Pin Diameter 1.5 mm [.059 in], 24 – 21 AWG Wire Size, .2 – .4 mm² Wire Size, Tin (Sn) Interface Plating, Round Connector System
929985-1
Socket Terminal, Pin Diameter 1.5 mm [.059 in], 24 – 21 AWG Wire Size, .2 – .4 mm² Wire Size, Tin (Sn) Interface Plating, Round Connector System
-
- AMP
- Round Connector System
- TE Internal #: 929985-1
- TE Internal Description: RECEPTACLE CONTACT 1,5MM DIA
- All ROUND CONNECTOR SYSTEM, PIN AND SOCKET (47)
-
Terminal Type : Socket
-
Mating Pin Diameter : 1.5 mm [ .059 in ]
-
Terminal Transmits : 0 – 24 A (Low Power)
-
Wire Size (AWG): 24 – 21
-
Wire Size (mm²): .2 – .4
Documents
Product Drawings
- Dia 1,5mm Contact-Socket German
- Dia 1,5mm Contact-Socket GER_CD_929985_J3.pdf German
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_929985-1_J.pdf 3D
- Customer View Model ENG_CVM_CVM_929985-1_J.2d_dxf.zip English
- ENG_CVM_CVM_929985-1_J.3d_igs.zip English
- ENG_CVM_CVM_929985-1_J.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-18040_G.pdf English
- ENG_SS_114-18040-1_G.pdf English
- Product Specification GER_SS_108-18028_K.pdf German
