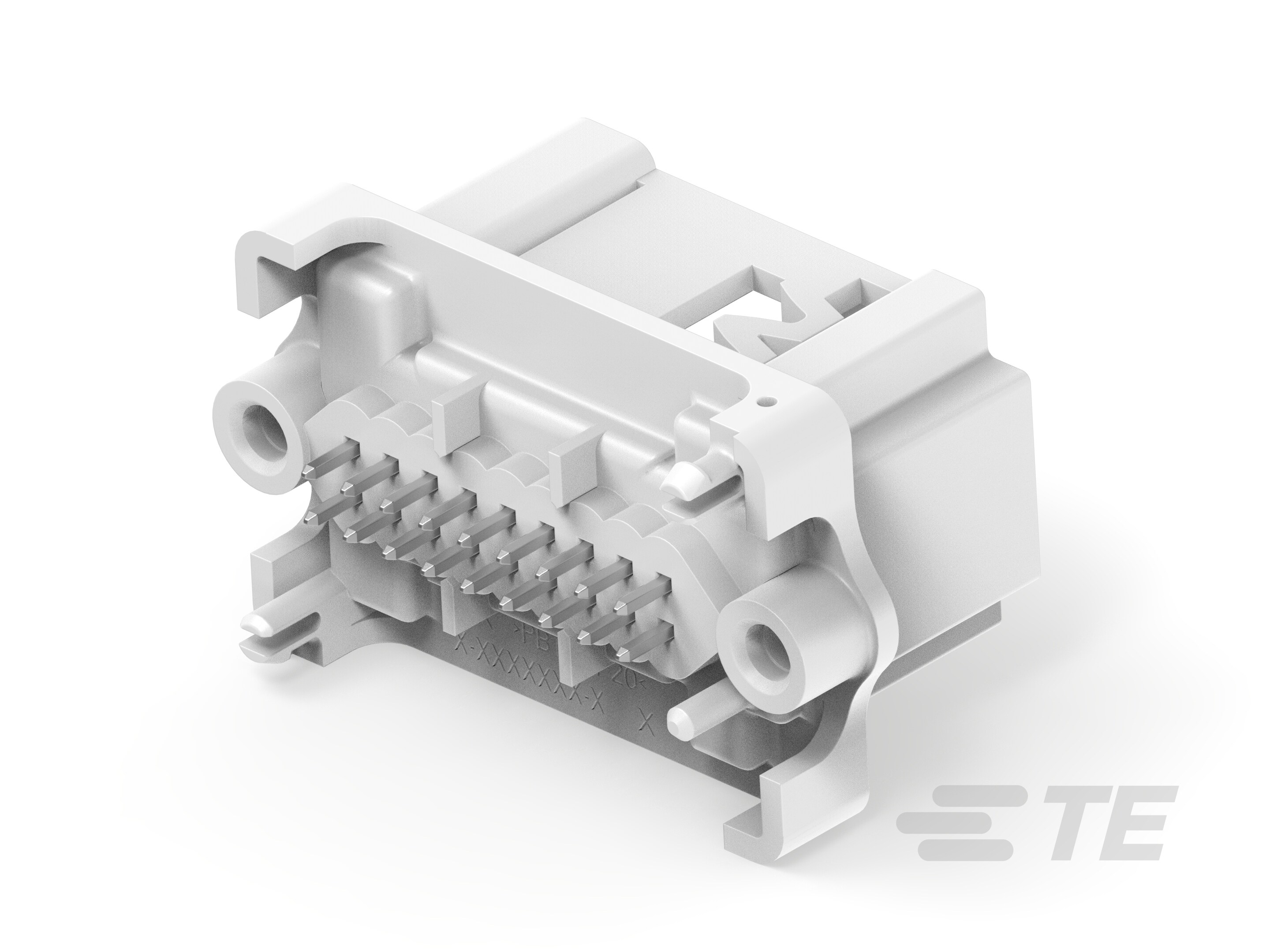

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Interface Number : 114-18063-023

• Connector Shape : Rectangular

• Mixed & Hybrid Header : No

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Sections : 1

• Number of Signal Positions : 18

• PCB Mount Orientation : Vertical

• Number of Positions : 18

• Number of Rows : 2

• Connector & Keying Code : B

• Primary Product Color : Natural

• Mating Tab Thickness : .63 mm [ .025 in ]

• Mating Tab Width : .63 mm [ .025 in ]

• Contact Size : .63mm

• Contact Mating Area Plating Material : Tin

• Contact Type : Tab

• Termination Method to PCB : Through Hole - Solder

• PCB Mount Retention Type : Boardlock

• Mating Retention : With

• Mounting Holes : With

• Mating Retention Type : Locking Interface

• Panel Mount Feature : Without

• PCB Mount Retention : With

• PCB Mount Alignment : With

• Mating Alignment : With

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• Connector Length : 39.6 mm [ 1.56 in ]

• Profile Height from PCB : 20.48 mm [ .806 in ]

• PCB Thickness (Recommended) : 1.6 mm [ .063 in ]

• Connector Width : 23.3 mm [ .92 in ]

• Operating Temperature (Max) (°C): 80, 125, 105, 100, 90, 65, 85, 75, 70, 110, 120

• Operating Temperature (Max) (°F): 248, 221, 158, 167, 230, 176, 194, 185, 212, 257, 149

• Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

• Shielded : No

• Circuit Application : Signal
