Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

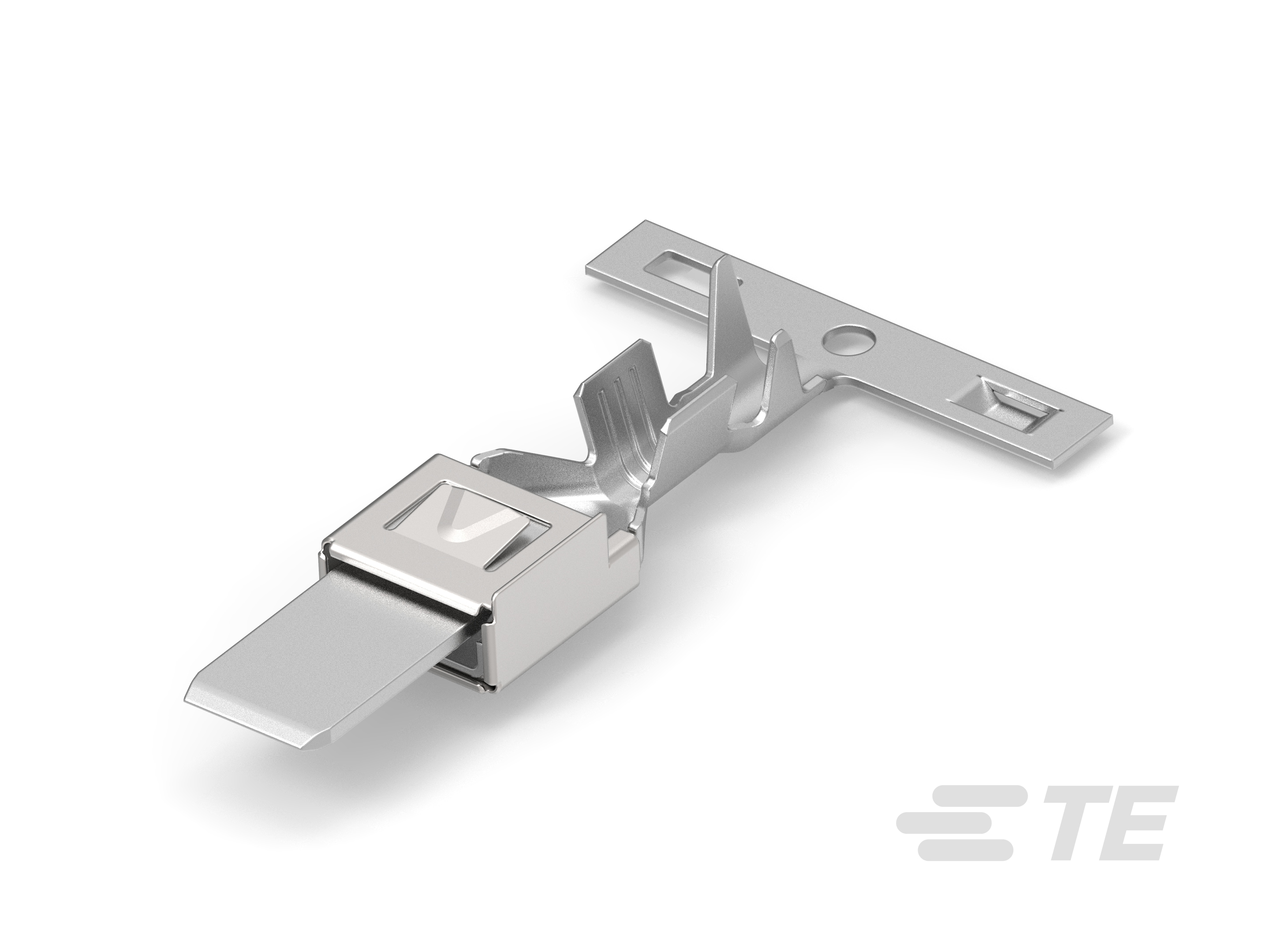

• Wire Contact Termination Area Plating Material : Tin

• Contact Fabrication : Stamped & Formed

• Contact Size : 5.2mm

• Crimp Type : F-Crimp

• Typical Current Rating (A): 45

• Terminal Type : Tab

• Mating Tab Width : 5.2 mm [ .205 in ]

• Mating Tab Thickness : .63 mm [ .025 in ]

• Interface Plating : Tin (Sn)

• Compatible Insulation Diameter Range : 1.9 – 3 mm [ .075 – .118 in ]

• Wire Size (AWG): 16 – 13

• Wire Size (mm²): 1.25 – 2.5

• Wire Size Search (mm²): 1.25, 2.5, 2, 1.5

• Wire Size Search (AWG): 13, 14, 15, 16

• Receptacle Style : 180°

• Sealable : No

• Primary Locking Feature : Locking Lance

• Termination Method to Wire & Cable : Crimp

• Product Terminates To : Wire

• Insulation Option : Uninsulated

• Operating Temperature (Max) (°C): 130, 125, 80, 105, 100, 90, 85, 110, 120

• Operating Temperature (Max) (°F): 248, 221, 230, 176, 194, 185, 266, 212, 257

• Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]

• Packaging Quantity : 3000

• Packaging Method : Reel

• Conforms to Automation Guideline : Yes, KOMAX Automatic Component Insertion per Version 5.0 (March 2018)

• Compatible With Wire Base Material : Copper

• Compatible With Agency/Standards Products : LV214
