AEGA385NN0000002K000

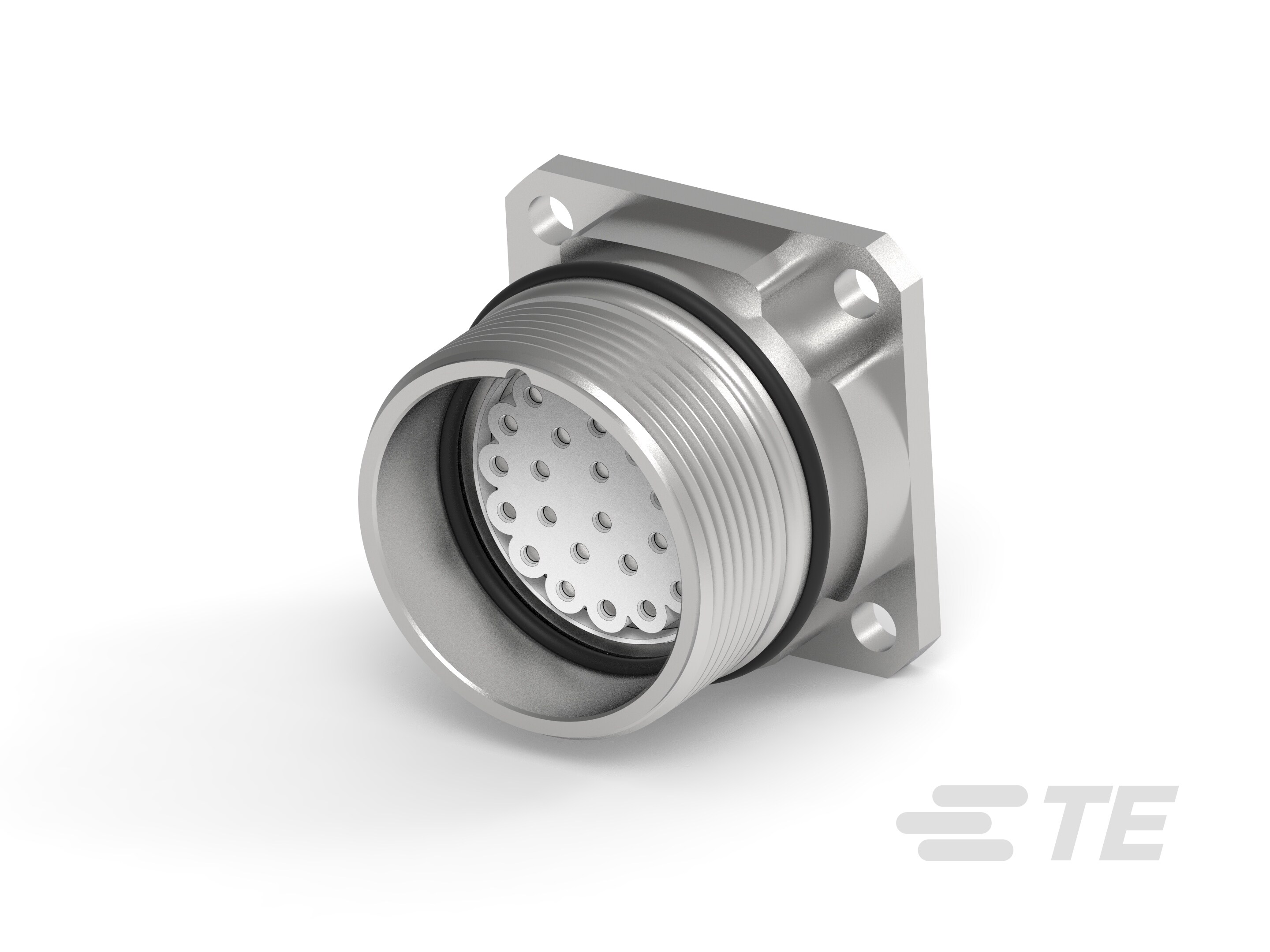

Cable-to-Panel, Signal, Panel Mount, Electrodeposited Nickel, Zinc Alloy, PBT, 23 Shell Size, Shielded, Receptacle, 0° Alignment Keyed, Metal
AEGA385NN0000002K000
Cable-to-Panel, Signal, Panel Mount, Electrodeposited Nickel, Zinc Alloy, PBT, 23 Shell Size, Shielded, Receptacle, 0° Alignment Keyed, Metal
- TE Internal #: AEA385N0000002K000
- TE Internal Description: 627 RECEPTACLE, 26-PIN
-
Connector System : Cable-to-Panel
-
Sealable : No
-
Circuit Application : Signal
-
Connector Mounting Type : Panel Mount
-
Shell Plating Material : Electrodeposited Nickel
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_AEA385N0000002K000_A.pdf 3D
- Customer View Model ENG_CVM_CVM_AEA385N0000002K000_A.2d_dxf.zip English
- ENG_CVM_CVM_AEA385N0000002K000_A.3d_igs.zip English
- ENG_CVM_CVM_AEA385N0000002K000_A.3d_stp.zip English
Datasheets & Catalog Pages
- 627 Einbaudose 26-polig AEGA385NN0000002K000 DE/EN GER_DS_Y6-0549-000-000_1.pdf German
- AEA385N0000002K000 ENG_DS_AEA385N0000002K000_A.pdf English
- fuer Datenblaetter, die online konfigurierbar sind GER_DS_Konfigurator_1.pdf German
Product Specifications
- Qualification Test Report GER_SS_501-160091-M93_A1.pdf German
