DT Highspeed Connector shielding

DT Highspeed Connector shielding-CAT-AI5-DHCS
DT highspeed connector shielding provides a sealed, shielded solution for high-speed data connections in industrial and automotive applications. Designed as a shielding accessory, this ferrule-style shield helps protect signal integrity in electrically noisy environments. Made from high-quality copper alloy, this shielding accessory is built to handle extreme temperatures ranging from -40°C to 125°C (-40°F to 257°F). It is RoHS and ELV compliant, making it a suitable choice for applications requiring environmentally regulated materials. This 2-position shielding ferrule is engineered to integrate seamlessly with DT highspeed connectors, offering an additional layer of protection for data transmission in harsh operating conditions.
More Less

Product Features

  • Connector Shielding Accessory Type : Ferrule, Shield

  • Primary Product Material : Copper Alloy

Available from

LADD Inc
Overview

Key Benefits:

DT Highspeed Connector shielding

Shielded Design for Data Protection

  • Helps reduce electromagnetic interference (EMI) and crosstalk in high-speed connections.



Sealed Shielding for Harsh Environments

  • Designed to protect against contaminants, supporting reliable signal integrity.



Durable Copper Alloy Construction

  • Made from copper alloy, providing strong conductivity and mechanical resilience.



Reliable Performance in Extreme Temperatures

  • Supports a wide operating range from -40°C to 125°C (-40°F to 257°F) for automotive and industrial use.



Regulatory Compliance for Environmental Standards

  • RoHS and ELV compliant, aligning with industry sustainability regulations.

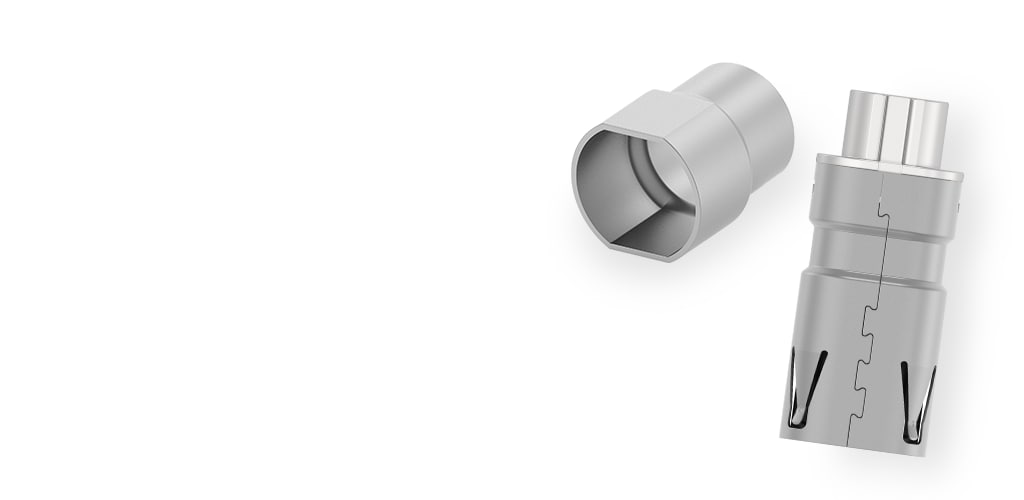

DT Highspeed Connector Shielding reduces EMI for cleaner, high-speed data connections.

Key Features:

DT Highspeed Connector shielding



Features Details
Accessory Type
 Ferrule, Shield
Sealable Yes
Material Copper Alloy
Operating Temperature Range -40°C to 125°C (-40°F to 257°F)
Compliance RoHS and ELV compliant



Data Sheet
DT Highspeed Conectors (English)
Catalog (English)
DC Data Connectivity Catalog

Real-world Applications:

DT Highspeed Connector shielding

Shielded Data Transmission for Heavy-Duty Vehicles

  • Helps maintain clean data signals in fleet management, GPS, and telematics applications.



Sealed Shielding for Agriculture & Off-Highway Equipment

  • Supports data protection in tractors, harvesters, and autonomous farming systems.



Shielded Connectivity for Construction & Mining Equipment

  • Helps protect sensitive data signals from EMI in rugged, high-vibration environments.



Reliable Shielding for Rail & Transit Networks

  • Provides enhanced data protection for signaling, automation, and surveillance systems.



Industrial Automation & Factory Networking

  • Helps maintain stable data transmission in high-speed industrial Ethernet applications

DT Highspeed Connectors

DT Highspeed Connectors housings

DT Highspeed Connectors housings
DT Highspeed Connector headers

DT Highspeed Connector headers
DT Highspeed Connectors Backshells

DT Highspeed Connectors Backshells
DT Highspeed Connectors seals and plugs

DT Highspeed Connectors seals and plugs
DT Highspeed Connector shielding

DT Highspeed Connector shielding
DT Highspeed sealed connectors

DT Highspeed Sealed Connectors
FAQ

Frequently Asked Questions

DT Highspeed Connector shielding

Q: What is the purpose of DT highspeed connector shielding?

A: This shielding accessory helps reduce electromagnetic interference (EMI) and enhance signal integrity for high-speed DT highspeed connectors, making it suitable for automotive and industrial environments.



Q: What material is the shielding ferrule made from?

A: The DT highspeed connector shielding is constructed from copper alloy, which provides durability, electrical conductivity, and mechanical strength.



Q: Is this shielding accessory suitable for extreme temperatures?

A: Yes, it is rated for -40°C to 125°C (-40°F to 257°F), making it reliable in both high-heat and freezing environments.



READ MORE FREQUENTLY ASKED QUESTIONS

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Sealable  Yes

  • Connector Shielding Accessory Type  Ferrule, Shield

Configuration Features

  • Number of Positions  2

Body Features

  • Primary Product Material  Copper Alloy

Usage Conditions

  • Operating Temperature Range  -40 – 125 °C [ -40 – 257 °F ]

Reference Number

  • TE Internal Number CAT-AI5-DHCS
