Bushing Guard

Bushing Guard-CAT-BCAC
  • RAYCHEM
|
  • RAYCHEM BCAC

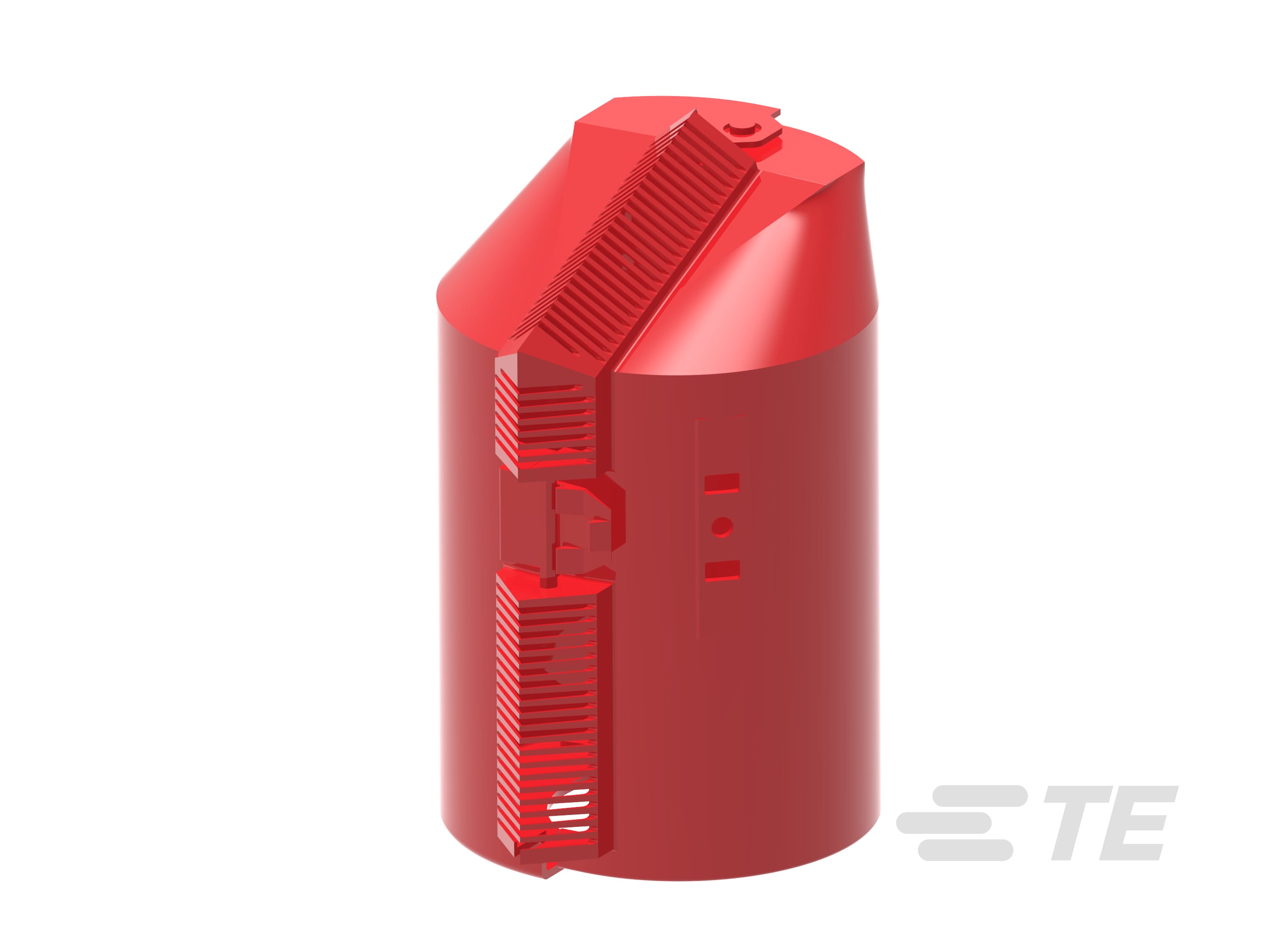

Our Raychem BCAC Bushing Guards are used on pole-top transformers, reclosers and capacitor bank bushings to mitigate animal-related power outages. The rugged, UV-resistant outer materials ensure long-term performance in extreme conditions.
More Less

Product Features

  • Operating Temperature Range (°C): 0 – 105

  • Primary Product Color : Gray, Red

  • Primary Product Material : Crosslinked Polyolefin

  • LV/MV Insulating Cover Product Type : Arrester Cover, Bushing Cover, Birdcap, Cover

  • Insulator Outside Skirt Diameter Range (mm): 0 – 100, 102 – 173, 75 – 122, 0 – 95, 0 – 127, 63 – 100, 125 – 203

  • Insulator Outside Skirt Diameter Range (in): 5. – 8., 3. – 4.8, 0 – 5., 2.5 – 4., 0 – 4., 4. – 6.8, 0 – 3.75

Available from

LADD Inc
Overview

Our Raychem BCAC Bushing Guards range has been successfully eliminating outages from all types of animals for years. The Bushing Guard uses a scissor action design to allow for live installations on bushing skirts, ranging in size from 1.7" (43 mm) through 2.7" (68 mm) in core diameter and 3.0" (75 mm) through 4.75" (120 mm) in shed diameter. The scissor action translates the force on contact with the bushing core to a rotating action that closes the cover around the bushing.

The Bushing Guard is made from rugged, non-tracking, UV-resistant Raychem polymer which ensures long-term performance in outdoor, high voltage and extreme environmental conditions.

bar

Key Features

  • Reliable protection from animal-caused outages
  • Fast and versatile installation
  • High-performance materials for extreme durability
  • Cover gripper attachment facilitates hot-stick installation from pole or bucket
  • Step latching mechanism for craft-friendly installation
  • REACH and RoHS compliant
bar

Bushing Guards

Improving Grid Reliability

bar

Our Raychem Insulation and Protection Solutions

Grid Connectivity and Reliability Webinar Series

Join our technical experts as they address solutions to your power network challenges during our series of webinars.

Wildlife and asset protection

Application

Wildlife and Asset Protection Solutions

Over 25% of all power outages are caused by wildlife and vegetation interfering with electrical equipment. Discover our solutions to prevent outages.
wildfire image

Application

Wildfire Mitigation

Learn how to prevent wildfires and bushfires from starting.

Energy Distributors

Access our Authorized Distributors for the Energy market by country.
FAQ

Frequently Asked Questions

Question: What is the life expectancy of TE’s Raychem Bushing Guards?

Answer: The determined life expectancy of our Bushing Guards, based upon research and development field reports, is a minimum of 40 years.



Question: Can I thermal scan connectors through the transformer Bushing Guards?

Answer: Yes, the honeycomb cage design of our Bushing Guards was deliberately engineered to allow scanning using a thermal device.



Question: How many different sizes of Bushing Guards do you offer?

Answer: Currently we offer four sizes of Bushing Guards with new sizes underway.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • LV/MV Insulating Cover Product Type  Arrester Cover, Bushing Cover, Birdcap, Cover

  • Installation Technology  Cold Applied, Cold Applied Energised Installation

Configuration Features

  • Visual Inspection  No

Electrical Characteristics

  • Voltage Class (kV) ≤ 35, ≤ 25

Body Features

  • Primary Product Color  Gray, Red

  • Primary Product Material  Crosslinked Polyolefin

  • Insulator Material  Porcelain, Polymer, Glass

Dimensions

  • Insulator Outside Skirt Diameter Range (mm) 0 – 100, 0 – 95, 0 – 127, 63 – 100, 75 – 122, 102 – 173, 125 – 203

  • Insulator Outside Skirt Diameter Range (in) 0 – 5., 0 – 4., 0 – 3.75, 2.5 – 4., 3. – 4.8, 4. – 6.8, 5. – 8.

  • Insulator Core Diameter Range (mm) 0 – 50, 38 – 108, 43 – 125, 43 – 68

  • Insulator Core Diameter Range (in) 0 – 2., 1.5 – 4.25, 1.7 – 5., 1.7 – 2.7

  • Compatible Conductor Range (AWG/kcmil) 6, 6 – 795

Usage Conditions

  • Operating Temperature Range (°C) 0 – 105

Operation/Application

  • Compatible Equipment  Arrester, Insulators/Bushings, Conductor, Terminations

  • Power Component Application Type  Distribution, Overhead

Industry Standards

  • Compatible With Agency/Standards Products  RUS

Product Availability

  • Product Availability  Worldwide

Reference Number

  • TE Internal Number CAT-BCAC
