Bus Insulators: Animal Guard
- RAYCHEM
- RAYCHEM BISG
Product Features
-
Product Availability : Europe, Middle East & Africa, Americas, Australia, New Zealand & Pacific Islands, Asia, China
-
Installation Technology : Cold Applied Energised Installation, Cold Applied De-energised
-
LV/MV Insulating Cover Product Type : Isolation Guard
-
Compatible Equipment : Switches, Support Insulators
-
Insulator Core Diameter Range (mm): 38 – 115, 25.4 – 114.3, 63.5 – 127
-
Insulator Core Diameter Range (in): 1.5 – 4.5, 1 – 4.5, 2.5 – 5

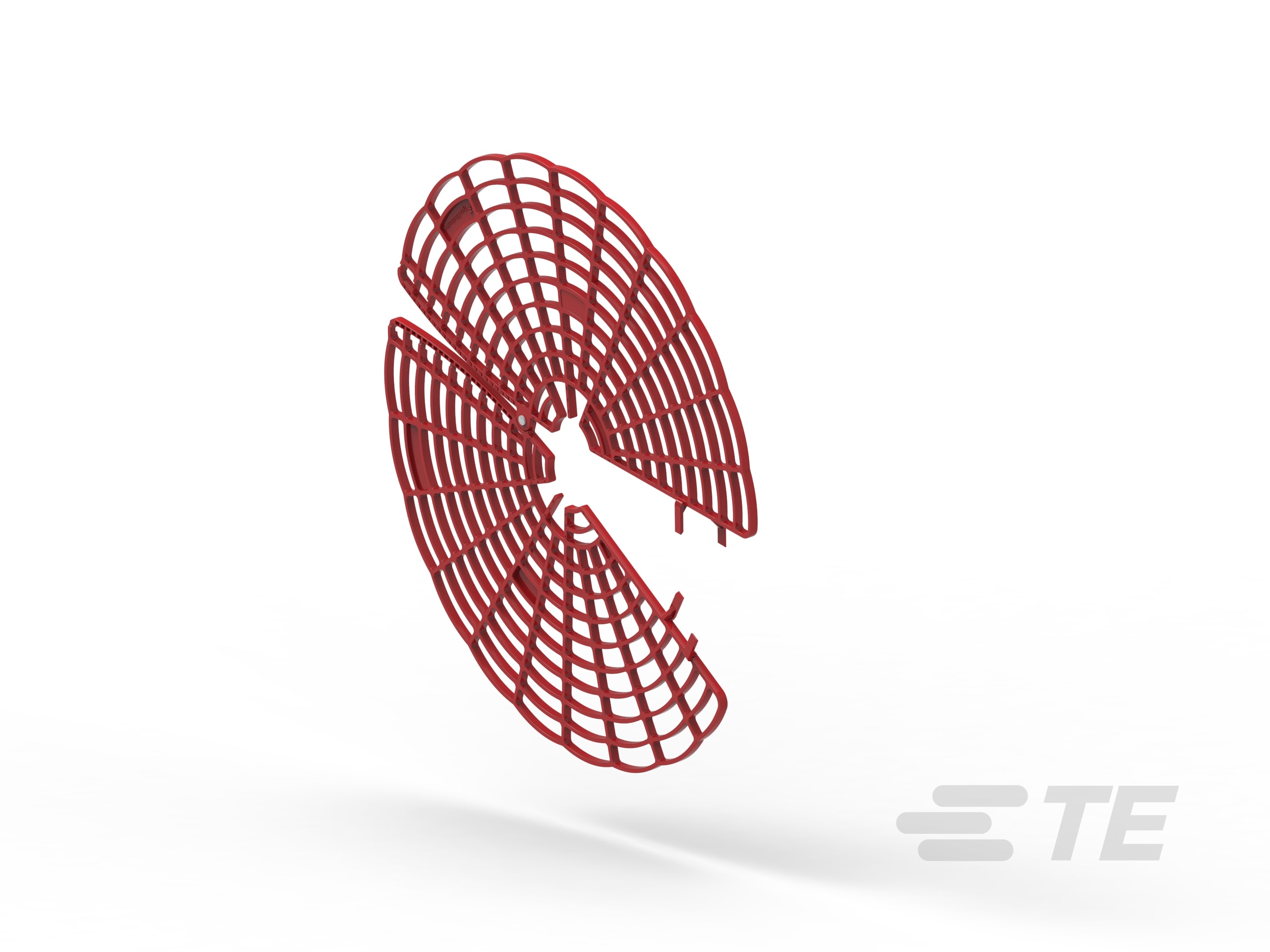

Our Raychem BISG Bus Insulators Animal Guard prevents squirrels, raccoons, opossums, cats, and other animals to climb in substations. These guards have been designed to provide the same great protection with added features. Its “invisible” design allows easier visibility of switchblades and other equipment components through the guard. This new design allows for easy field modifications and can be reduced by trimming along the grill ribs for tight phase-to-phase insulator applications.
Key Features
- Easy to install on bus and switch insulators
- Excellent tracking resistance
- UV-resistant polymeric
- Ensures long-term performance even in the most extreme environmental conditions
- Energized installation capable
- Range taking 25-125mm (1.0”-5.0”) core diameter
Bus Insulator Animal Guards
Reducing Animal-Related Outages
TE Connectivity's Raychem BISG isolation guard prevents animal-caused outages in electrical substation equipment. BISG discs have been successfully eliminating outages from squirrels, raccoons, opossums, cats and other animals in substations for years.
Our Raychem Insulation and Protection Solutions
Frequently Asked Questions
Question: Is TE's Raychem BISG Bus Insulator Animal Guard part of the installation training schedule from TE?
Answer: Yes, our trainers will show you how to install our Raychem Bus Insulator Animal Guard with hot-sticks on vertical and horizontal mounted insulators. This session is part of our Wildlife and Asset Protection Solutions installation training program. Learn more on TE.com/trainingcenter.
Question: What are the Bus Insulator Animal Guards made from?
Answer: Our Raychem Bus Insulator Animal Guards are made from a polymer that is resistant to high voltage and UV light and features non-tracking properties, all of which lend to long-term performance even in harsh environments.
Question: On what size of insulators do the Bus Insulator Animal Guards fit?
Answer: Our Raychem Bus Insulator Animal Guards fit insulation core diameters ranging from 2.5” (62 mm) through 5.0” (125 mm).
Please review product documents or contact us for the latest agency approval information.
Product Availability
-
Product Availability Europe, Middle East & Africa, Americas, Australia, New Zealand & Pacific Islands, Asia, China
Product Type Features
-
Installation Technology Cold Applied Energised Installation, Cold Applied De-energised
-
LV/MV Insulating Cover Product Type Isolation Guard
Operation/Application
-
Compatible Equipment Switches, Support Insulators
-
Power Component Application Type Substation Animal Barrier
Dimensions
-
Insulator Core Diameter Range (mm) 38 – 115, 25.4 – 114.3, 63.5 – 127
-
Insulator Core Diameter Range (in) 1.5 – 4.5, 1 – 4.5, 2.5 – 5
Other
-
EU RoHS Compliance Compliant
-
EU ELV Compliance Compliant
Configuration Features
-
Visual Inspection Yes
Body Features
-
Primary Product Color Red, Gray
-
Primary Product Material Crosslinked Polyethylene
-
Insulator Material Polymer, Porcelain, Glass
Industry Standards
-
Compatible With Agency/Standards Products RUS
Reference Number
-
TE Internal Number CAT-BISG
