Resistor Power BDS2A100

CGS BDS

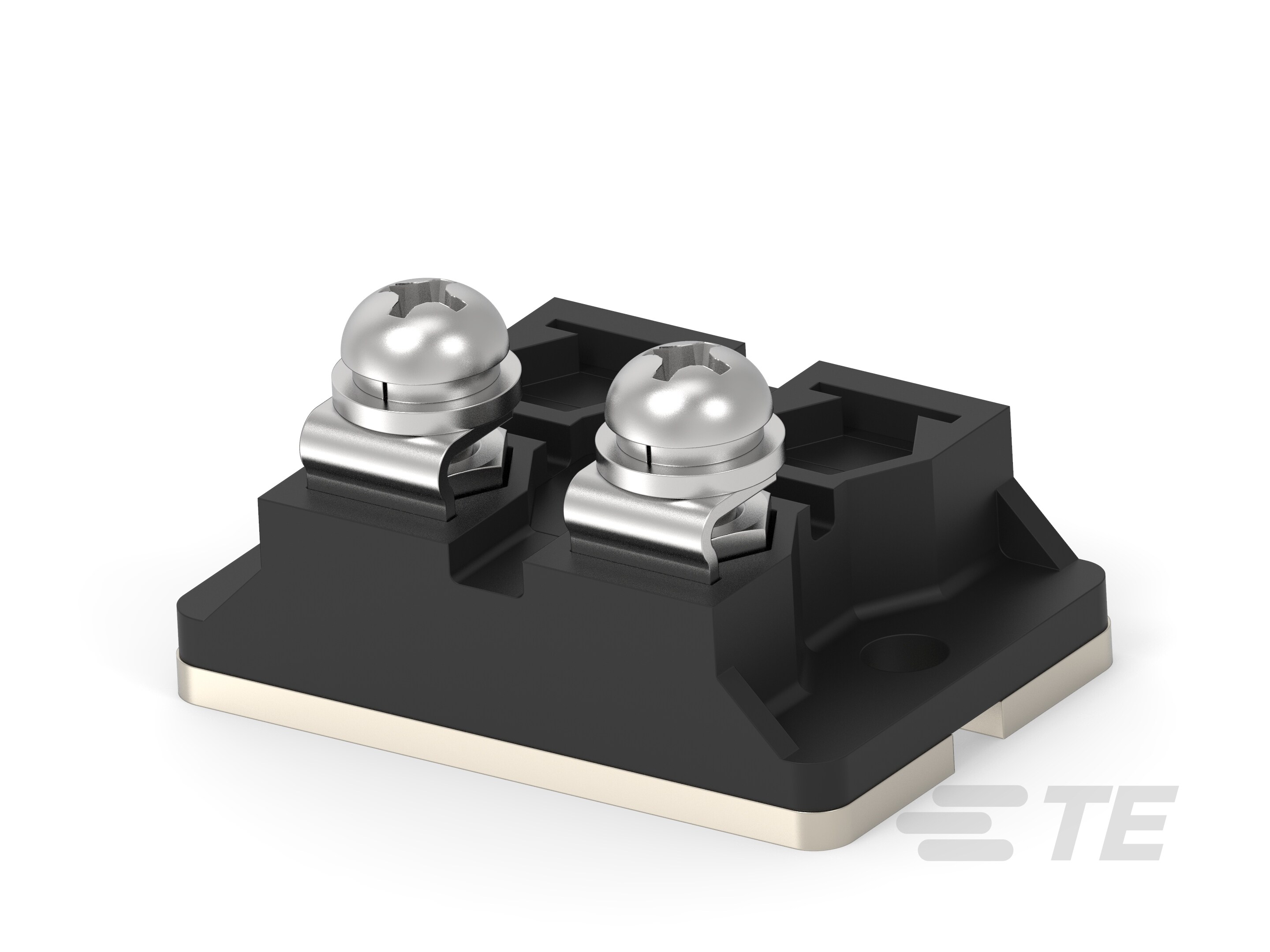

Resistor Power Thick Film 100W 2 Terminal Standard

More Less

Product Features

Resistor Type : Power Resistor
Resistance Class : 1kΩ – 1MΩ, Up to 1kΩ, 1MΩ – 1GΩ
Resistance Value (Ω): 220, 10K, 3.3, 50, 200K, 47, 2.2, 100, 2.6K, 68, 2.2K, 330, 10, 4.7, 6.8K, 22, 1K, 1M, 150, 15, 6.8, 33, 270, 4.7K, 100K, 250, 470, 680
Power Rating (W): 100
Element Type : Thick Film

Available from

Product	TE Part #	Documents	Resistance Class	Resistance Value	Passive Component Tolerance	Packaging Method	EU ELV Compliance
BDS 2 A 100 200K 5%	3-1614782-5	Product Drawing	1kΩ – 1MΩ	200K Ω	10 %	Loose Piece - Box	Compliant with Exemptions
BDS 2 A 100 33R 5%	2-1614782-9	Product Drawing 3D PDF	Up to 1kΩ	33 Ω	5 %	Loose Piece - Tray	Compliant
BDS 2 A 100 680R 10%	1-1614782-9	Product Drawing 3D PDF	Up to 1kΩ	680 Ω	10 %	Loose Piece - Tray	Compliant with Exemptions
BDS 2 A 100 6K8 10%	2-1614782-1	Product Drawing 3D PDF	1kΩ – 1MΩ	6.8K Ω	10 %	Loose Piece - Tray	Compliant with Exemptions
BDS 2 A 100 100R 5%	2-1614782-7	Product Drawing 3D PDF	Up to 1kΩ	100 Ω	5 %	Loose Piece - Tray	Compliant
BDS 2 A 100 4R7 10%	1-1614782-7	Product Drawing 3D PDF	Up to 1kΩ	4.7 Ω	10 %	Loose Piece - Tray	Compliant with Exemptions
BDS 2 A 100 2K2 10%	1-1614782-0	Product Drawing 3D PDF	1kΩ – 1MΩ	2.2K Ω	10 %	Loose Piece - Tray	Compliant
BDS 2 A 100 250R 5%	3-1614782-1	Product Drawing 3D PDF	Up to 1kΩ	250 Ω	5 %	Loose Piece - Tray	Compliant with Exemptions
BDS 2 A 100 270R 5%	2-1614782-8	Product Drawing 3D PDF	Up to 1kΩ	270 Ω	5 %	Loose Piece - Tray	Compliant
BDS 2 A 100 4K7 10%	1-1614782-6	Product Drawing 3D PDF	1kΩ – 1MΩ	4.7K Ω	10 %	Loose Piece - Tray	Compliant with Exemptions
BDS 2 A 100 2R2 10% Buy on te.com	1-1614782-1	Product Drawing 3D PDF	Up to 1kΩ	2.2 Ω	10 %	Loose Piece - Tray	Compliant
BDS 2 A 100 10K 10%	1614782-2	Product Drawing 3D PDF	1kΩ – 1MΩ	10K Ω	10 %	Loose Piece - Tray	Compliant
BDS 2 A 100 100K 5%	3-1614782-3	Product Drawing 3D PDF	1kΩ – 1MΩ	100K Ω	5 %	Loose Piece - Tray	Compliant with Exemptions
BDS 2 A 100 2K6 5%	3-1614782-4	Product Drawing	1kΩ – 1MΩ	2.6K Ω	5 %	Loose Piece - Tray	Compliant with Exemptions
BDS 2 A 100 68R 10%	2-1614782-0	Product Drawing 3D PDF	Up to 1kΩ	68 Ω	10 %	Loose Piece - Tray	Compliant with Exemptions
BDS 2 A 100 33R 10% Buy on te.com	1-1614782-2	Product Drawing 3D PDF	Up to 1kΩ	33 Ω	10 %	Loose Piece - Tray	Compliant
BDS 2 A 100 3R3 10% Buy on te.com	1-1614782-3	Product Drawing 3D PDF	Up to 1kΩ	3.3 Ω	10 %	Loose Piece - Tray	Compliant
BDS 2 A 100 10R 10% Buy on te.com	1614782-3	Product Drawing 3D PDF	Up to 1kΩ	10 Ω	10 %	Loose Piece - Tray	Compliant
BDS 2 A 100 1K0 10%	1614782-6	Product Drawing 3D PDF	1kΩ – 1MΩ	1K Ω	10 %	Loose Piece - Tray	Compliant
BDS 2 A 100 150R 10%	1614782-4	Product Drawing 3D PDF	Up to 1kΩ	150 Ω	10 %	Loose Piece - Tray	Compliant
BDS 2 A 100 220R 10% Buy on te.com	1614782-8	Product Drawing 3D PDF	Up to 1kΩ	220 Ω	10 %	Loose Piece - Tray	Compliant
BDS 2 A 100 50R 5%	2-1614782-6	Product Drawing 3D PDF	Up to 1kΩ	50 Ω	5 %	Loose Piece - Tray	Compliant with Exemptions
BDS 2 A 100 100R 10%	1614782-1	Product Drawing 3D PDF	Up to 1kΩ	100 Ω	10 %	Loose Piece - Tray	Compliant
BDS 2 A 100 15R 10%	1614782-5	Product Drawing 3D PDF	Up to 1kΩ	15 Ω	10 %	Loose Piece - Tray	Compliant
BDS 2 A 100 22R 10% Buy on te.com	1614782-9	Product Drawing 3D PDF	Up to 1kΩ	22 Ω	10 %	Loose Piece - Tray	Compliant
BDS 2 A 100 6R8 10% Buy on te.com	2-1614782-2	Product Drawing 3D PDF	Up to 1kΩ	6.8 Ω	10 %	Loose Piece - Tray	Compliant with Exemptions
BDS 2 A 100 330R 10%	2-1614782-3	Product Drawing 3D PDF	Up to 1kΩ	330 Ω	10 %	Loose Piece - Tray	Compliant with Exemptions
BDS 2 A 100 47R 10% Buy on te.com	1-1614782-5	Product Drawing 3D PDF	Up to 1kΩ	47 Ω	10 %	Loose Piece - Tray	Compliant
BDS 2 A 100 470R 10%	1-1614782-4	Product Drawing 3D PDF	Up to 1kΩ	470 Ω	10 %	Loose Piece - Tray	Compliant
BDS 2 A 100 1M0 5%	3-1614782-2	Product Drawing 3D PDF	1MΩ – 1GΩ	1M Ω	5 %	Loose Piece - Tray	Compliant with Exemptions

Overview

Thick Film Power Resistor , Chassis Mount 100W 2 Terminal Standard Circuit Low Inductance <40nH

Features

Please review product documents or contact us for the latest agency approval information.

Usage Conditions

Operating Temperature Range (°C) -55 – 125
Temperature Coefficient (ppm/°C) ±150

Product Type Features

Resistor Type Power Resistor
Element Type Thick Film

Configuration Features

Number of Resistors 1

Electrical Characteristics

Resistance Class 1kΩ – 1MΩ, Up to 1kΩ, 1MΩ – 1GΩ
Resistance Value (Ω) 220, 10K, 3.3, 50, 200K, 47, 2.2, 100, 2.6K, 68, 2.2K, 330, 10, 4.7, 6.8K, 22, 1K, 1M, 150, 15, 6.8, 33, 270, 4.7K, 100K, 250, 470, 680
Power Rating (W) 100
Passive Component Tolerance (%) 10, 5

Termination Features

Number of Terminations 2
Chassis Mount Resistor Termination Type Screw Terminals

Mechanical Attachment

Panel Mount Feature Type Flange with Mounting Holes

Dimensions

Product Height 21 mm [ .827 in ]
Product Length 38 mm [ 1.496 in ]
Product Width 25.5 mm [ 1.004 in ]

Packaging Features

Packaging Method Loose Piece - Tray, Loose Piece - Box

Other

EU RoHS Compliance Compliant
EU ELV Compliance Compliant, Compliant with Exemptions

Reference Number

TE Internal Number CAT-C339-B349

Related Materials

Datasheets & Catalog Pages

Thick Film Power Resistors - Type BDS100 Series pdf English
