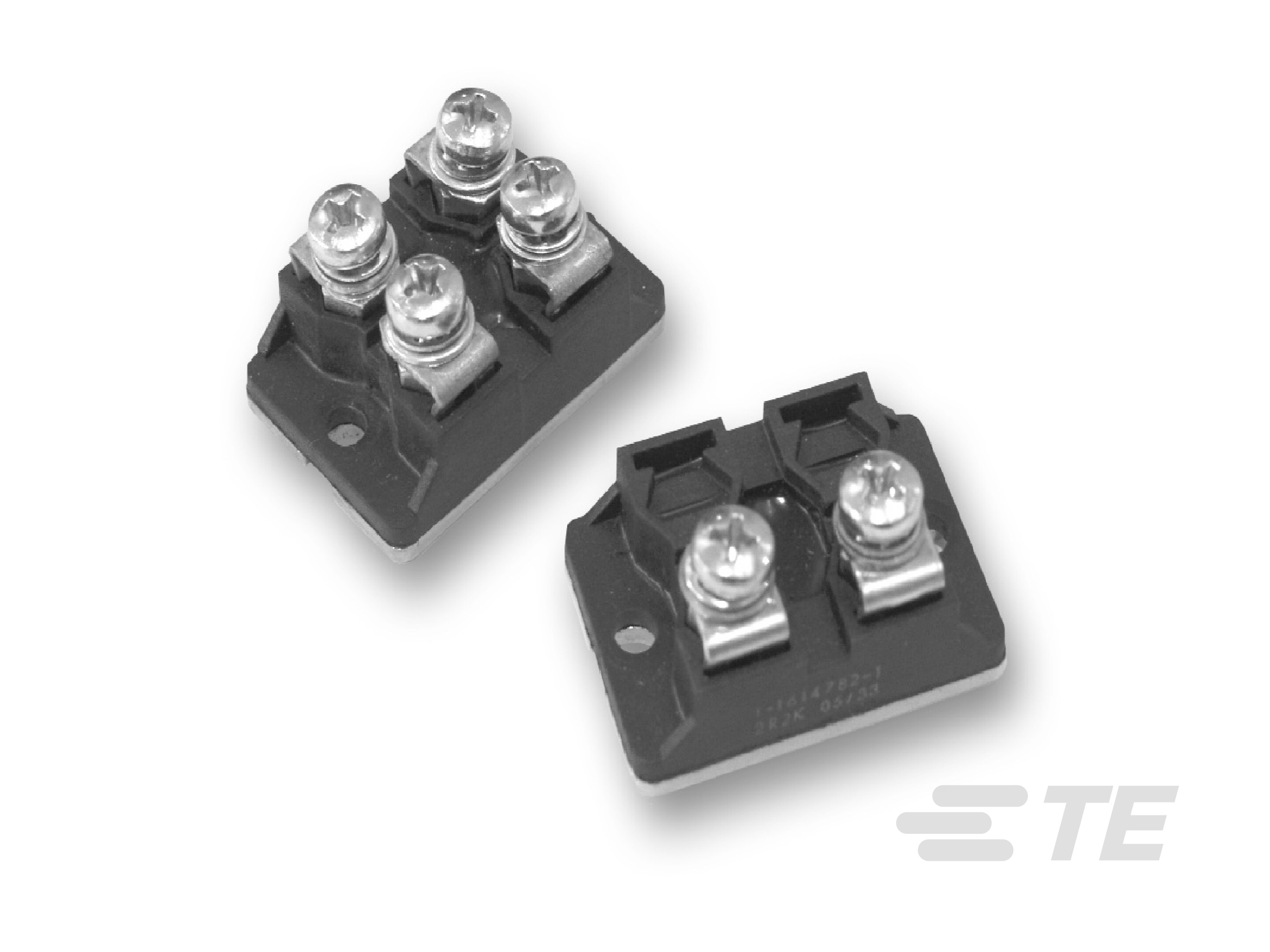

Resistor Power BDS4X100

Resistor Power BDS4X100-CAT-C339-B349C
  • CGS
|
  • CGS BDS
Thick Film Power Resistor, Chassis Mount 100W 4 Terminal Special Circuit Low Inductance <40nH
More Less

Product Features

  • Resistor Type : Power Resistor

  • Resistance Class : Up to 1kΩ

  • Resistance Value (Ω): .47, 1, 150

  • Power Rating (W): 100

  • Element Type : Thick Film

Available from

LADD Inc
Overview

Thick Film Power Resistor, Chassis Mount 100W 4 Terminal Special Circuit Low Inductance <40nH

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Resistor Type  Power Resistor

  • Element Type  Thick Film

Configuration Features

  • Number of Resistors  1, 3

Electrical Characteristics

  • Resistance Class  Up to 1kΩ

  • Resistance Value (Ω) .47, 1, 150

  • Power Rating (W) 100

  • Passive Component Tolerance (%) 5, 10

Termination Features

  • Number of Terminations  4

  • Chassis Mount Resistor Termination Type  Screw Terminals

Mechanical Attachment

  • Panel Mount Feature Type  Flange with Mounting Holes

Dimensions

  • Product Height  21 mm [ .827 in ]

  • Product Length  38 mm [ 1.496 in ]

  • Product Width  25.5 mm [ 1.004 in ]

Usage Conditions

  • Operating Temperature Range (°C) -55 – 125

  • Temperature Coefficient (ppm/°C) ±150

Packaging Features

  • Packaging Method  Loose Piece - Tray

Reference Number

  • TE Internal Number CAT-C339-B349C
