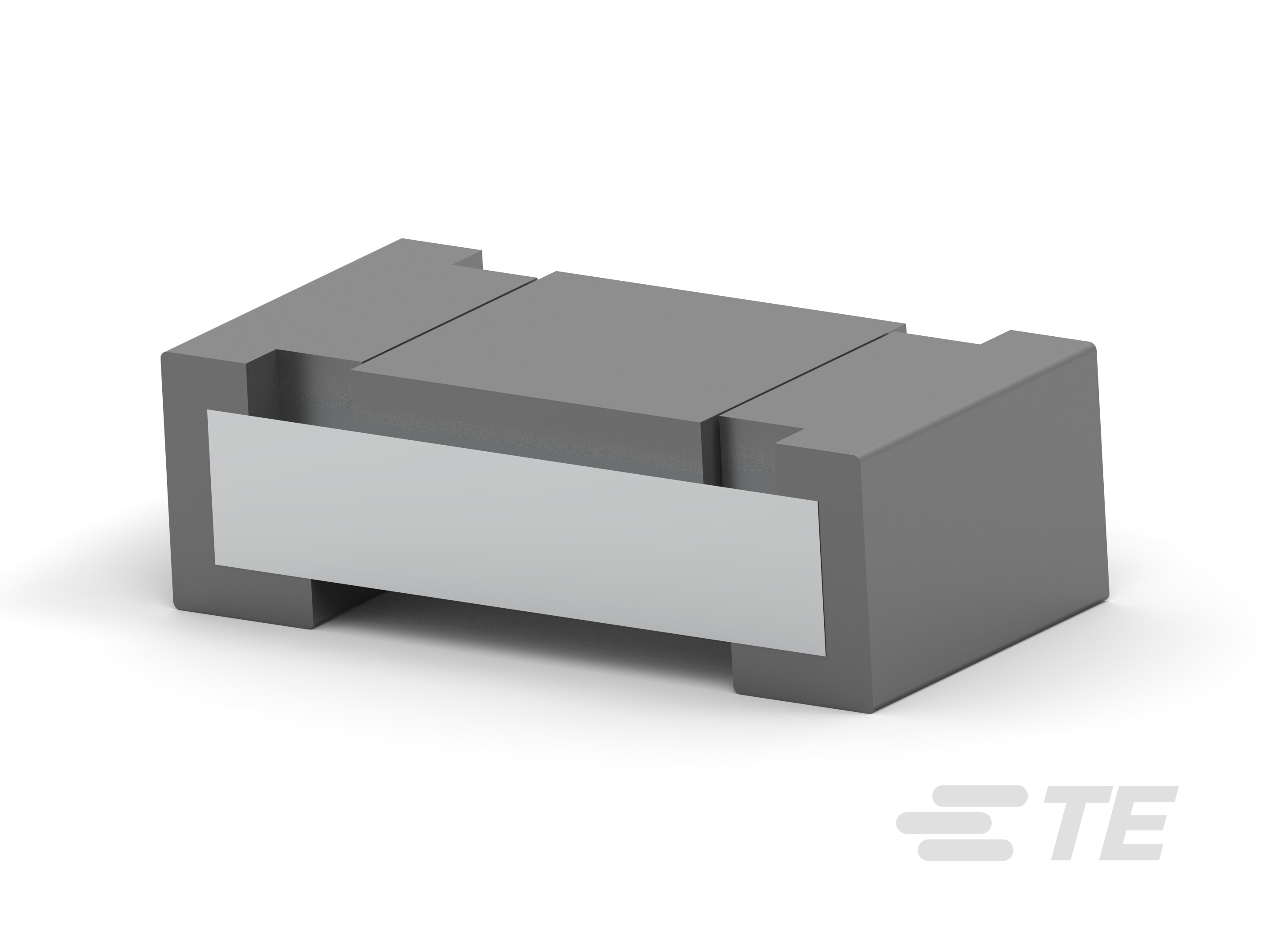

Thick Film Resistor: Current Sense

CGS RLP73

High-Power Current Sensing Thick Film Chip Resistors with 1% Tol. and a metal glaze resistive element for up to 2W power dissipation.

More Less

Product Features

Element Type: Thick Film
Resistance Class: Up to 1kΩ
Surface Mount Resistor Termination Type: Solder
Number of Terminations: 2
Number of Resistors: 1

Available from

Product	TE Part #	Documents	Resistor Type	Package Size Code	Power Rating	Resistance Value	Passive Component Tolerance	Temperature Coefficient	Product Height	Product Length	Product Width
RLP73K 3A R43 1% 1K RL Buy on te.com	4-2176057-0	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.43 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 2B R15 1% 1K RL Buy on te.com	2-2176055-9	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.15 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 2B R68 5% 5K RL Buy on te.com	4-2176056-5	3D PDF	Current Sensing Resistor	1206	.5 W	.68 Ω	5 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 1E 1R0 1% 1K RL Buy on te.com	3-2176049-2	Product Drawing 3D PDF	Low Ohmic Resistor	0402	.125 W	1 Ω	1 %	±200 ppm/°C	.32 mm	1 mm	.5 mm
RLP73K 1E R51 1% 1K RL Buy on te.com	2-2176049-5	Product Drawing 3D PDF	Low Ohmic Resistor	0402	.125 W	.51 Ω	1 %	±200 ppm/°C	.32 mm	1 mm	.5 mm
RLP73K 1E R56 1% 1K RL Buy on te.com	2-2176049-6	Product Drawing 3D PDF	Low Ohmic Resistor	0402	.125 W	.56 Ω	1 %	±200 ppm/°C	.32 mm	1 mm	.5 mm
RLP73K 1E R62 1% 1K RL Buy on te.com	2-2176049-7	Product Drawing 3D PDF	Low Ohmic Resistor	0402	.125 W	.62 Ω	1 %	±200 ppm/°C	.32 mm	1 mm	.5 mm
RLP73K 1E R68 1% 1K RL Buy on te.com	2-2176049-8	Product Drawing 3D PDF	Low Ohmic Resistor	0402	.125 W	.68 Ω	1 %	±200 ppm/°C	.32 mm	1 mm	.5 mm
RLP73K 1E R75 1% 1K RL Buy on te.com	2-2176049-9	Product Drawing 3D PDF	Low Ohmic Resistor	0402	.125 W	.75 Ω	1 %	±200 ppm/°C	.32 mm	1 mm	.5 mm
RLP73K 1E R91 1% 1K RL Buy on te.com	3-2176049-1	Product Drawing 3D PDF	Low Ohmic Resistor	0402	.125 W	.91 Ω	1 %	±200 ppm/°C	.32 mm	1 mm	.5 mm
RLP73K 1J 1R0 1% 1K RL Buy on te.com	3-2176051-2	Product Drawing 3D PDF	Low Ohmic Resistor	0603	.125 W	1 Ω	1 %	±200 ppm/°C	.45 mm	1.6 mm	.8 mm
RLP73K 1J R51 1% 1K RL Buy on te.com	2-2176051-5	Product Drawing 3D PDF	Low Ohmic Resistor	0603	.125 W	.51 Ω	1 %	±200 ppm/°C	.45 mm	1.6 mm	.8 mm
RLP73K 1J R68 1% 1K RL Buy on te.com	2-2176051-8	Product Drawing 3D PDF	Low Ohmic Resistor	0603	.125 W	.68 Ω	1 %	±200 ppm/°C	.45 mm	1.6 mm	.8 mm
RLP73K 1J R75 1% 1K RL Buy on te.com	2-2176051-9	Product Drawing 3D PDF	Low Ohmic Resistor	0603	.125 W	.75 Ω	1 %	±200 ppm/°C	.45 mm	1.6 mm	.8 mm
RLP73K 1J R82 1% 1K RL Buy on te.com	3-2176051-0	Product Drawing 3D PDF	Low Ohmic Resistor	0603	.125 W	.82 Ω	1 %	±200 ppm/°C	.45 mm	1.6 mm	.8 mm
RLP73K 1J R91 1% 1K RL Buy on te.com	3-2176051-1	Product Drawing 3D PDF	Low Ohmic Resistor	0603	.125 W	.91 Ω	1 %	±200 ppm/°C	.45 mm	1.6 mm	.8 mm
RLP73K 2A 1R0 1% 1K RL Buy on te.com	3-2176053-2	Product Drawing 3D PDF	Low Ohmic Resistor	0805	.25 W	1 Ω	1 %	±200 ppm/°C	.55 mm	2 mm	1.25 mm
RLP73K 2A R56 1% 1K RL Buy on te.com	2-2176053-6	Product Drawing 3D PDF	Low Ohmic Resistor	0805	.25 W	.56 Ω	1 %	±200 ppm/°C	.55 mm	2 mm	1.25 mm
RLP73K 2A R62 1% 1K RL Buy on te.com	2-2176053-7	Product Drawing 3D PDF	Low Ohmic Resistor	0805	.25 W	.62 Ω	1 %	±200 ppm/°C	.55 mm	2 mm	1.25 mm
RLP73K 2A R68 1% 1K RL Buy on te.com	2-2176053-8	Product Drawing 3D PDF	Low Ohmic Resistor	0805	.25 W	.68 Ω	1 %	±200 ppm/°C	.55 mm	2 mm	1.25 mm
RLP73K 2A R75 1% 1K RL Buy on te.com	2-2176053-9	Product Drawing 3D PDF	Low Ohmic Resistor	0805	.25 W	.75 Ω	1 %	±200 ppm/°C	.55 mm	2 mm	1.25 mm
RLP73K 2A R82 1% 1K RL Buy on te.com	3-2176053-0	Product Drawing 3D PDF	Low Ohmic Resistor	0805	.25 W	.82 Ω	1 %	±200 ppm/°C	.55 mm	2 mm	1.25 mm
RLP73K 2B 1R0 1% 1K RL Buy on te.com	4-2176055-9	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	1 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 2B R10 1% 1K RL Buy on te.com	2-2176055-5	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.1 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 2B R11 1% 1K RL Buy on te.com	2-2176055-6	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.11 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 2B R12 1% 1K RL Buy on te.com	2-2176055-7	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.12 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 2B R13 1% 1K RL Buy on te.com	2-2176055-8	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.13 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 2B R16 1% 1K RL Buy on te.com	3-2176055-0	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.16 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 2B R18 1% 1K RL Buy on te.com	3-2176055-1	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.18 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 2B R22 1% 1K RL Buy on te.com	3-2176055-3	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.22 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 2B R24 1% 1K RL Buy on te.com	3-2176055-4	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.24 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 2B R33 1% 1K RL Buy on te.com	3-2176055-7	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.33 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 2B R36 1% 1K RL Buy on te.com	3-2176055-8	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.36 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 2B R43 1% 1K RL Buy on te.com	4-2176055-0	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.43 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 2B R47 1% 1K RL Buy on te.com	4-2176055-1	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.47 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 2B R56 1% 1K RL Buy on te.com	4-2176055-3	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.56 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 2B R62 1% 1K RL Buy on te.com	4-2176055-4	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.62 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 2B R75 1% 1K RL Buy on te.com	4-2176055-6	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.75 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 2B R82 1% 1K RL Buy on te.com	4-2176055-7	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.82 Ω	1 %	±200 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73K 3A 1R0 1% 1K RL Buy on te.com	4-2176057-9	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	1 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R10 1% 1K RL Buy on te.com	2-2176057-5	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.1 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R11 1% 1K RL Buy on te.com	2-2176057-6	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.11 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R12 1% 1K RL Buy on te.com	2-2176057-7	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.12 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R13 1% 1K RL Buy on te.com	2-2176057-8	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.13 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R15 1% 1K RL Buy on te.com	2-2176057-9	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.15 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R15 5% 2K RL Buy on te.com	2-2176058-9	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.15 Ω	5 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R16 1% 1K RL Buy on te.com	3-2176057-0	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.16 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R18 1% 1K RL Buy on te.com	3-2176057-1	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.18 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R20 1% 1K RL Buy on te.com	3-2176057-2	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.2 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R22 1% 1K RL Buy on te.com	3-2176057-3	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.22 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R22 5% 2K RL Buy on te.com	3-2176058-3	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.22 Ω	5 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R24 1% 1K RL Buy on te.com	3-2176057-4	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.24 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R27 1% 1K RL Buy on te.com	3-2176057-5	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.27 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R30 1% 1K RL Buy on te.com	3-2176057-6	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.3 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R33 1% 1K RL Buy on te.com	3-2176057-7	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.33 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R33 5% 2K RL Buy on te.com	3-2176058-7	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.33 Ω	5 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R36 1% 1K RL Buy on te.com	3-2176057-8	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.36 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R39 1% 1K RL Buy on te.com	3-2176057-9	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.39 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R47 1% 1K RL Buy on te.com	4-2176057-1	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.47 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R51 1% 1K RL Buy on te.com	4-2176057-2	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.51 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R56 1% 1K RL Buy on te.com	4-2176057-3	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.56 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R62 1% 1K RL Buy on te.com	4-2176057-4	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.62 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R68 1% 1K RL Buy on te.com	4-2176057-5	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.68 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73K 3A R75 1% 1K RL Buy on te.com	4-2176057-6	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.75 Ω	1 %	±200 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73M 1E R051 1% 1K RL Buy on te.com	2176049-1	Product Drawing 3D PDF	Low Ohmic Resistor	0402	.125 W	.051 Ω	1 %	±400 ppm/°C	.32 mm	1 mm	.5 mm
RLP73M 1E R056 1% 1K RL Buy on te.com	2176049-2	Product Drawing 3D PDF	Low Ohmic Resistor	0402	.125 W	.056 Ω	1 %	±400 ppm/°C	.32 mm	1 mm	.5 mm
RLP73M 1E R075 1% 1K RL Buy on te.com	2176049-5	Product Drawing 3D PDF	Low Ohmic Resistor	0402	.125 W	.075 Ω	1 %	±400 ppm/°C	.32 mm	1 mm	.5 mm
RLP73M 1J R056 1% 1K RL Buy on te.com	2176051-2	Product Drawing 3D PDF	Low Ohmic Resistor	0603	.125 W	.056 Ω	1 %	±400 ppm/°C	.45 mm	1.6 mm	.8 mm
RLP73M 1J R068 1% 1K RL Buy on te.com	2176051-4	Product Drawing 3D PDF	Low Ohmic Resistor	0603	.125 W	.068 Ω	1 %	±400 ppm/°C	.45 mm	1.6 mm	.8 mm
RLP73M 1J R068 5% 5K RL Buy on te.com	2176052-4	Product Drawing 3D PDF	Low Ohmic Resistor	0603	.125 W	.068 Ω	5 %	±400 ppm/°C	.45 mm	1.6 mm	.8 mm
RLP73M 1J R075 5% 5K RL Buy on te.com	2176052-5	Product Drawing 3D PDF	Low Ohmic Resistor	0603	.125 W	.075 Ω	5 %	±400 ppm/°C	.45 mm	1.6 mm	.8 mm
RLP73M 1J R082 1% 1K RL Buy on te.com	2176051-6	Product Drawing 3D PDF	Low Ohmic Resistor	0603	.125 W	.082 Ω	1 %	±400 ppm/°C	.45 mm	1.6 mm	.8 mm
RLP73M 2A R051 1% 1K RL Buy on te.com	2176053-1	Product Drawing 3D PDF	Low Ohmic Resistor	0805	.25 W	.051 Ω	1 %	±400 ppm/°C	.55 mm	2 mm	1.25 mm
RLP73M 2A R056 1% 1K RL Buy on te.com	2176053-2	Product Drawing 3D PDF	Low Ohmic Resistor	0805	.25 W	.056 Ω	1 %	±400 ppm/°C	.55 mm	2 mm	1.25 mm
RLP73M 2A R062 1% 1K RL Buy on te.com	2176053-3	Product Drawing 3D PDF	Low Ohmic Resistor	0805	.25 W	.062 Ω	1 %	±400 ppm/°C	.55 mm	2 mm	1.25 mm
RLP73M 2A R068 1% 1K RL Buy on te.com	2176053-4	Product Drawing 3D PDF	Low Ohmic Resistor	0805	.25 W	.068 Ω	1 %	±400 ppm/°C	.55 mm	2 mm	1.25 mm
RLP73M 2A R082 1% 1K RL Buy on te.com	2176053-6	Product Drawing 3D PDF	Low Ohmic Resistor	0805	.25 W	.082 Ω	1 %	±400 ppm/°C	.55 mm	2 mm	1.25 mm
RLP73M 2A R091 1% 1K RL Buy on te.com	2176053-7	Product Drawing 3D PDF	Low Ohmic Resistor	0805	.25 W	.091 Ω	1 %	±400 ppm/°C	.55 mm	2 mm	1.25 mm
RLP73M 2B R022 1% 1K RL Buy on te.com	2176055-9	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.022 Ω	1 %	±400 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73M 2B R024 1% 1K RL Buy on te.com	1-2176055-0	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.024 Ω	1 %	±400 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73M 2B R027 1% 1K RL Buy on te.com	1-2176055-1	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.027 Ω	1 %	±400 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73M 2B R030 1% 1K RL Buy on te.com	1-2176055-2	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.03 Ω	1 %	±400 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73M 2B R036 1% 1K RL Buy on te.com	1-2176055-4	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.036 Ω	1 %	±400 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73M 2B R039 1% 1K RL Buy on te.com	1-2176055-5	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.039 Ω	1 %	±400 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73M 2B R043 1% 1K RL Buy on te.com	1-2176055-6	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.043 Ω	1 %	±400 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73M 2B R047 1% 1K RL Buy on te.com	1-2176055-7	Product Drawing 3D PDF	Current Sensing Resistor	1206	.5 W	.047 Ω	1 %	±400 ppm/°C	.55 mm	3.1 mm	1.55 mm
RLP73M 3A R022 1% 1K RL Buy on te.com	2176057-9	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.022 Ω	1 %	±400 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73M 3A R024 1% 1K RL Buy on te.com	1-2176057-0	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.024 Ω	1 %	±400 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73M 3A R027 1% 1K RL Buy on te.com	1-2176057-1	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.027 Ω	1 %	±400 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73M 3A R030 1% 1K RL Buy on te.com	1-2176057-2	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.03 Ω	1 %	±400 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73M 3A R033 1% 1K RL Buy on te.com	1-2176057-3	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.033 Ω	1 %	±400 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73M 3A R036 1% 1K RL Buy on te.com	1-2176057-4	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.036 Ω	1 %	±400 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73M 3A R039 1% 1K RL Buy on te.com	1-2176057-5	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.039 Ω	1 %	±400 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73M 3A R043 1% 1K RL Buy on te.com	1-2176057-6	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.043 Ω	1 %	±400 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73M 3A R047 1% 1K RL Buy on te.com	1-2176057-7	Product Drawing 3D PDF	Current Sensing Resistor	2512	2 W	.047 Ω	1 %	±400 ppm/°C	.74 mm	6.35 mm	3.15 mm
RLP73N 1E R10 1% 1K RL Buy on te.com	2176049-8	Product Drawing 3D PDF	Low Ohmic Resistor	0402	.125 W	.1 Ω	1 %	±300 ppm/°C	.32 mm	1 mm	.5 mm
RLP73N 1E R11 1% 1K RL Buy on te.com	2176049-9	Product Drawing 3D PDF	Low Ohmic Resistor	0402	.125 W	.11 Ω	1 %	±300 ppm/°C	.32 mm	1 mm	.5 mm
RLP73N 1E R11 5% 5K RL Buy on te.com	2176050-9	Product Drawing 3D PDF	Low Ohmic Resistor	0402	.125 W	.11 Ω	5 %	±300 ppm/°C	.32 mm	1 mm	.5 mm
RLP73N 1E R16 1% 1K RL Buy on te.com	1-2176049-3	Product Drawing 3D PDF	Low Ohmic Resistor	0402	.125 W	.16 Ω	1 %	±300 ppm/°C	.32 mm	1 mm	.5 mm
RLP73N 1E R18 1% 1K RL Buy on te.com	1-2176049-4	Product Drawing 3D PDF	Low Ohmic Resistor	0402	.125 W	.18 Ω	1 %	±300 ppm/°C	.32 mm	1 mm	.5 mm

Overview

RL73P Series of High-Power Thick Film Chip Resistors with a metal glaze resistive element and a nickel barrier layer suitable for current sensing positions and several applications such as Communications, and automotive.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Resistor Type Current Sensing Resistor, Low Ohmic Resistor
Element Type Thick Film
Package Size Code 0402, 0603, 0805, 1206, 2512

Configuration Features

Number of Resistors 1

Electrical Characteristics

Power Rating (W) .125, .25, .5, 2
Resistance Value (Ω) .01, .011, .012, .013, .015, .016, .018, .02, .022, .024, .027, .03, .033, .036, .039, .043, .047, .051, .056, .062, .068, .075, .082, .091, .1, .11, .12, .13, .15, .16, .18, .2, .22, .24, .27, .3, .33, .36, .39, .43, .47, .51, .56, .62, .68, .75, .82, .91, 1
Resistance Class Up to 1kΩ
Passive Component Tolerance (%) 1, 5

Termination Features

Surface Mount Resistor Termination Type Solder
Number of Terminations 2

Dimensions

Product Height (mm) .32, .45, .55, .74
Product Height (in) .013, .018, .022, .029
Product Length (mm) 1, 1.6, 2, 3.1, 6.35
Product Length (in) .039, .063, .079, .122, .25
Product Width (mm) .5, .8, 1.25, 1.55, 3.15
Product Width (in) .02, .031, .049, .061, .124

Usage Conditions

Operating Temperature Range (°C) -55 – 155
Temperature Coefficient (ppm/°C) ±200, ±300, ±400, ±600

Packaging Features

Packaging Method Taped & Reeled

Reference Number

TE Internal Number CAT-C339-R529A

Related Materials

No documentation available.
