M12 Field Installable Unshielded

M12 Connector

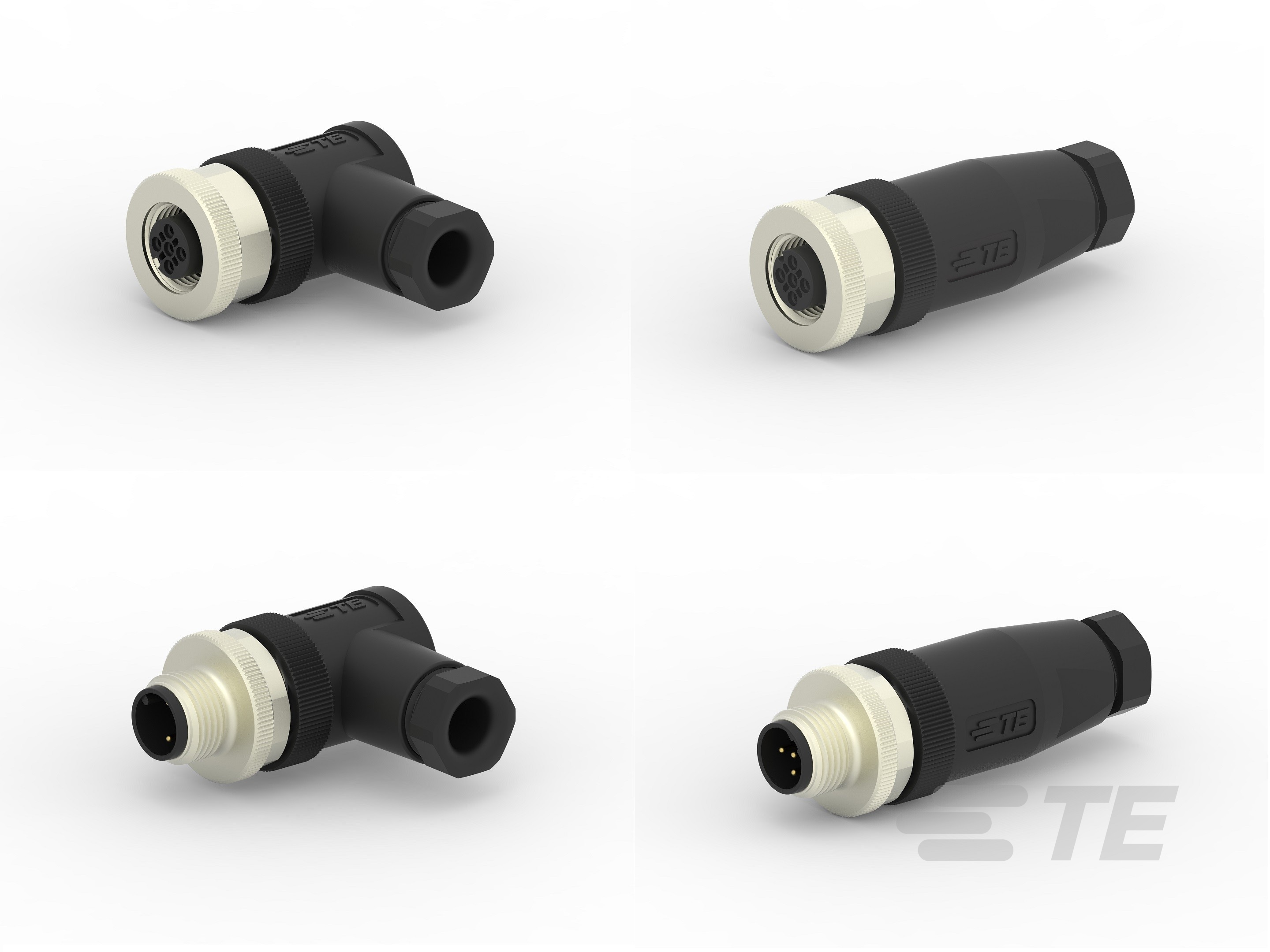

M12 Metric Circular Field Installable unshielded cable connector with screw termination.

More Less

Digital Datasheet|

Product Features

Connector System : Cable-to-Cable
Number of Positions : 5, 4, 3, 8, 2
Sealable : Yes
Connector & Contact Terminates To : Wire & Cable
Contact Current Rating (Max) (A): 2, 4

Available from

Product	TE Part #	Documents	Number of Positions	Contact Current Rating (Max)	Polarization Code	Number of Signal Positions	Wire Size	Wire Size	Circular Connector Type	Circular Connector Contact Type	EU ELV Compliance
M12,FEMALE,STRAIGHT,A CODE,2P,PG7,GOLD	T4110001021-000	Product Drawing 3D PDF	2	4 A	A	2	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,STRAIGHT,B CODE,3P,PG9,GOLD	T4110402031-000	Product Drawing 3D PDF	3	4 A	B	3	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant
M12,MALE,STRAIGHT,A CODE,8P,PG9,GOLD Buy on te.com	T4111002081-000	Product Drawing 3D PDF	8	2 A	A	8	20 – 24 AWG	.5 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,STRAIGHT,B CODE,2P,PG7,GOLD Buy on te.com	T4111401021-000	Product Drawing 3D PDF	2	4 A	B	2	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,STRAIGHT,D CODE,2P,PG9,GOLD Buy on te.com	T4111502021-000	Product Drawing 3D PDF	2	4 A	D	2	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,STRAIGHT,D CODE,4P,PG7,GOLD	T4110501041-000	Product Drawing 3D PDF	4	4 A	D	4	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,STRAIGHT,A CODE,4P,PG9,GOLD Buy on te.com	T4111002041-000	Product Drawing 3D PDF	4	4 A	A	4	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,RA,D CODE,3P,PG7,GOLD	T4113501031-000	Product Drawing 3D PDF	3	4 A	D	3	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,RA,D CODE,5P,PG7,GOLD Buy on te.com	T4112501051-000	Product Drawing 3D PDF	5	4 A	D	5	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,STRAIGHT,B CODE,4P,PG9,GOLD Buy on te.com	T4110402041-000	Product Drawing 3D PDF	4	4 A	B	4	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,STRAIGHT,D CODE,2P,PG9,GOLD	T4110502021-000	Product Drawing 3D PDF	2	4 A	D	2	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant
M12,MALE,STRAIGHT,A CODE,3P,PG9,GOLD Buy on te.com	T4111002031-000	Product Drawing 3D PDF	3	4 A	A	3	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,STRAIGHT,D CODE,3P,PG9,GOLD Buy on te.com	T4111502031-000	Product Drawing 3D PDF	3	4 A	D	3	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,STRAIGHT,D CODE,4P,PG9,GOLD Buy on te.com	T4110502041-000	Product Drawing 3D PDF	4	4 A	D	4	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,STRAIGHT,D CODE,5P,PG9,GOLD Buy on te.com	T4111502051-000	Product Drawing 3D PDF	5	4 A	D	5	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,STRAIGHT,A CODE,5P,PG9,GOLD Buy on te.com	T4110002051-000	Product Drawing 3D PDF	5	4 A	A	5	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,STRAIGHT,B CODE,2P,PG7,GOLD	T4110401021-000	Product Drawing 3D PDF	2	4 A	B	2	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,STRAIGHT,D CODE,2P,PG7,GOLD	T4111501021-000	Product Drawing 3D PDF	2	4 A	D	2	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,STRAIGHT,A CODE,2P,PG9,GOLD	T4111002021-000	Product Drawing 3D PDF	2	4 A	A	2	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,RA,A CODE,3P,PG7,GOLD Buy on te.com	T4113001031-000	Product Drawing 3D PDF	3	4 A	A	3	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,RA,D CODE,3P,PG9,GOLD	T4112502031-000	Product Drawing 3D PDF	3	4 A	D	3	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,RA,A CODE,5P,PG7,GOLD Buy on te.com	T4113001051-000	Product Drawing 3D PDF	5	4 A	A	5	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,STRAIGHT,A CODE,5P,PG7,GOLD Buy on te.com	T4111001051-000	Product Drawing 3D PDF	5	4 A	A	5	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,STRAIGHT,B CODE,2P,PG9,GOLD Buy on te.com	T4111402021-000	Product Drawing 3D PDF	2	4 A	B	2	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,STRAIGHT,B CODE,5P,PG9,GOLD Buy on te.com	T4111402051-000	Product Drawing 3D PDF	5	4 A	B	5	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,STRAIGHT,B CODE,2P,PG9,GOLD Buy on te.com	T4110402021-000	Product Drawing 3D PDF	2	4 A	B	2	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,STRAIGHT,D CODE,5P,PG9,GOLD Buy on te.com	T4110502051-000	Product Drawing 3D PDF	5	4 A	D	5	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,STRAIGHT,A CODE,8P,PG7,GOLD Buy on te.com	T4110001081-000	Product Drawing 3D PDF	8	2 A	A	8	20 – 24 AWG	.5 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,STRAIGHT,A CODE,2P,PG9,GOLD Buy on te.com	T4110002021-000	Product Drawing 3D PDF	2	4 A	A	2	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,STRAIGHT,A CODE,8P,PG7,GOLD	T4111001081-000	Product Drawing 3D PDF	8	2 A	A	8	20 – 24 AWG	.5 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,RA,A CODE,8P,PG9,GOLD Buy on te.com	T4112002081-000	Product Drawing 3D PDF	8	2 A	A	8	20 – 24 AWG	.5 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,RA,D CODE,2P,PG9,GOLD Buy on te.com	T4113502021-000	Product Drawing 3D PDF	2	4 A	D	2	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,STRAIGHT,B CODE,5P,PG7,GOLD Buy on te.com	T4110401051-000	Product Drawing 3D PDF	5	4 A	B	5	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,RA,A CODE,5P,PG9,GOLD Buy on te.com	T4112002051-000	Product Drawing 3D PDF	5	4 A	A	5	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,RA,B CODE,3P,PG9,GOLD	T4112402031-000	Product Drawing 3D PDF	3	4 A	B	3	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,STRAIGHT,D CODE,2P,PG7,GOLD Buy on te.com	T4110501021-000	Product Drawing 3D PDF	2	4 A	D	2	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,RA,A CODE,8P,PG9,GOLD Buy on te.com	T4113002081-000	Product Drawing 3D PDF	8	2 A	A	8	20 – 24 AWG	.5 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,RA,B CODE,2P,PG7,GOLD	T4112401021-000	Product Drawing 3D PDF	2	4 A	B	2	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,RA,B CODE,3P,PG7,GOLD	T4112401031-000	Product Drawing 3D PDF	3	4 A	B	3	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,RA,D CODE,2P,PG9,GOLD	T4112502021-000	Product Drawing 3D PDF	2	4 A	D	2	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,STRAIGHT,B CODE,5P,PG9,GOLD Buy on te.com	T4110402051-000	Product Drawing 3D PDF	5	4 A	B	5	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,STRAIGHT,B CODE,4P,PG7,GOLD Buy on te.com	T4111401041-000	Product Drawing 3D PDF	4	4 A	B	4	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,RA,B CODE,5P,PG7,GOLD	T4113401051-000	Product Drawing 3D PDF	5	4 A	B	5	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,STRAIGHT,D CODE,5P,PG7,GOLD Buy on te.com	T4111501051-000	Product Drawing 3D PDF	5	4 A	D	5	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,RA,D CODE,4P,PG9,GOLD Buy on te.com	T4112502041-000	Product Drawing 3D PDF	4	4 A	D	4	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,RA,D CODE,2P,PG7,GOLD Buy on te.com	T4113501021-000	Product Drawing 3D PDF	2	4 A	D	2	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,STRAIGHT,B CODE,4P,PG7,GOLD Buy on te.com	T4110401041-000	Product Drawing 3D PDF	4	4 A	B	4	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,STRAIGHT,A CODE,2P,PG7,GOLD Buy on te.com	T4111001021-000	Product Drawing 3D PDF	2	4 A	A	2	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,RA,D CODE,4P,PG9,GOLD Buy on te.com	T4113502041-000	Product Drawing 3D PDF	4	4 A	D	4	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,STRAIGHT,B CODE,5P,PG7,GOLD	T4111401051-000	Product Drawing 3D PDF	5	4 A	B	5	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,RA,A CODE,2P,PG7,GOLD Buy on te.com	T4113001021-000	Product Drawing 3D PDF	2	4 A	A	2	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,RA,B CODE,5P,PG9,GOLD Buy on te.com	T4113402051-000	Product Drawing 3D PDF	5	4 A	B	5	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,RA,D CODE,3P,PG9,GOLD Buy on te.com	T4113502031-000	Product Drawing 3D PDF	3	4 A	D	3	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,STRAIGHT,A CODE,3P,PG9,GOLD Buy on te.com	T4110002031-000	Product Drawing 3D PDF	3	4 A	A	3	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,STRAIGHT,D CODE,3P,PG7,GOLD	T4110501031-000	Product Drawing 3D PDF	3	4 A	D	3	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,STRAIGHT,D CODE,5P,PG7,GOLD Buy on te.com	T4110501051-000	Product Drawing 3D PDF	5	4 A	D	5	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,RA,A CODE,8P,PG7,GOLD Buy on te.com	T4112001081-000	Product Drawing 3D PDF	8	2 A	A	8	20 – 24 AWG	.5 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,RA,A CODE,3P,PG9,GOLD Buy on te.com	T4112002031-000	Product Drawing 3D PDF	3	4 A	A	3	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,RA,D CODE,3P,PG7,GOLD	T4112501031-000	Product Drawing 3D PDF	3	4 A	D	3	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,RA,D CODE,4P,PG7,GOLD Buy on te.com	T4112501041-000	Product Drawing 3D PDF	4	4 A	D	4	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,RA,A CODE,4P,PG7,GOLD Buy on te.com	T4113001041-000	Product Drawing 3D PDF	4	4 A	A	4	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,STRAIGHT,B CODE,3P,PG7,GOLD Buy on te.com	T4111401031-000	Product Drawing 3D PDF	3	4 A	B	3	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,RA,B CODE,3P,PG9,GOLD Buy on te.com	T4113402031-000	Product Drawing 3D PDF	3	4 A	B	3	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,RA,D CODE,4P,PG7,GOLD Buy on te.com	T4113501041-000	Product Drawing 3D PDF	4	4 A	D	4	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,STRAIGHT,A CODE,5P,PG7,GOLD Buy on te.com	T4110001051-000	Product Drawing 3D PDF	5	4 A	A	5	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,RA,A CODE,2P,PG7,GOLD Buy on te.com	T4112001021-000	Product Drawing 3D PDF	2	4 A	A	2	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,RA,A CODE,3P,PG7,GOLD	T4112001031-000	Product Drawing 3D PDF	3	4 A	A	3	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,RA,A CODE,5P,PG9,GOLD Buy on te.com	T4113002051-000	Product Drawing 3D PDF	5	4 A	A	5	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,RA,B CODE,4P,PG7,GOLD	T4112401041-000	Product Drawing 3D PDF	4	4 A	B	4	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,RA,B CODE,3P,PG7,GOLD	T4113401031-000	Product Drawing 3D PDF	3	4 A	B	3	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,RA,D CODE,5P,PG7,GOLD Buy on te.com	T4113501051-000	Product Drawing 3D PDF	5	4 A	D	5	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,STRAIGHT,A CODE,4P,PG9,GOLD Buy on te.com	T4110002041-000	Product Drawing 3D PDF	4	4 A	A	4	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,RA,B CODE,4P,PG9,GOLD	T4112402041-000	Product Drawing 3D PDF	4	4 A	B	4	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,RA,A CODE,3P,PG9,GOLD Buy on te.com	T4113002031-000	Product Drawing 3D PDF	3	4 A	A	3	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,RA,B CODE,2P,PG9,GOLD Buy on te.com	T4113402021-000	Product Drawing 3D PDF	2	4 A	B	2	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,RA,B CODE,4P,PG7,GOLD Buy on te.com	T4113401041-000	Product Drawing 3D PDF	4	4 A	B	4	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,STRAIGHT,D CODE,3P,PG9,GOLD Buy on te.com	T4110502031-000	Product Drawing 3D PDF	3	4 A	D	3	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,STRAIGHT,B CODE,4P,PG9,GOLD Buy on te.com	T4111402041-000	Product Drawing 3D PDF	4	4 A	B	4	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,STRAIGHT,B CODE,3P,PG9,GOLD Buy on te.com	T4111402031-000	Product Drawing 3D PDF	3	4 A	B	3	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,RA,B CODE,4P,PG9,GOLD Buy on te.com	T4113402041-000	Product Drawing 3D PDF	4	4 A	B	4	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,STRAIGHT,A CODE,3P,PG7,GOLD Buy on te.com	T4110001031-000	Product Drawing 3D PDF	3	4 A	A	3	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,STRAIGHT,D CODE,3P,PG7,GOLD Buy on te.com	T4111501031-000	Product Drawing 3D PDF	3	4 A	D	3	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,RA,B CODE,2P,PG7,GOLD Buy on te.com	T4113401021-000	Product Drawing 3D PDF	2	4 A	B	2	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,STRAIGHT,D CODE,4P,PG7,GOLD Buy on te.com	T4111501041-000	Product Drawing 3D PDF	4	4 A	D	4	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,RA,D CODE,5P,PG9,GOLD Buy on te.com	T4112502051-000	Product Drawing 3D PDF	5	4 A	D	5	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,RA,A CODE,2P,PG9,GOLD Buy on te.com	T4113002021-000	Product Drawing 3D PDF	2	4 A	A	2	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,STRAIGHT,B CODE,3P,PG7,GOLD Buy on te.com	T4110401031-000	Product Drawing 3D PDF	3	4 A	B	3	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,RA,A CODE,5P,PG7,GOLD Buy on te.com	T4112001051-000	Product Drawing 3D PDF	5	4 A	A	5	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,RA,D CODE,5P,PG9,GOLD	T4113502051-000	Product Drawing 3D PDF	5	4 A	D	5	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,STRAIGHT,A CODE,3P,PG7,GOLD	T4111001031-000	Product Drawing 3D PDF	3	4 A	A	3	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,RA,A CODE,2P,PG9,GOLD Buy on te.com	T4112002021-000	Product Drawing 3D PDF	2	4 A	A	2	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,RA,A CODE,4P,PG9,GOLD	T4113002041-000	Product Drawing 3D PDF	4	4 A	A	4	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,RA,A CODE,4P,PG9,GOLD Buy on te.com	T4112002041-000	Product Drawing 3D PDF	4	4 A	A	4	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,RA,B CODE,2P,PG9,GOLD	T4112402021-000	Product Drawing 3D PDF	2	4 A	B	2	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,RA,D CODE,2P,PG7,GOLD	T4112501021-000	Product Drawing 3D PDF	2	4 A	D	2	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,STRAIGHT,A CODE,4P,PG7,GOLD Buy on te.com	T4110001041-000	Product Drawing 3D PDF	4	4 A	A	4	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,FEMALE,STRAIGHT,A CODE,8P,PG9,GOLD Buy on te.com	T4110002081-000	Product Drawing 3D PDF	8	2 A	A	8	20 – 24 AWG	.5 – .25 mm²	Receptacle	Socket	Compliant with Exemptions
M12,MALE,STRAIGHT,A CODE,5P,PG9,GOLD Buy on te.com	T4111002051-000	Product Drawing 3D PDF	5	4 A	A	5	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,MALE,STRAIGHT,D CODE,4P,PG9,GOLD Buy on te.com	T4111502041-000	Product Drawing 3D PDF	4	4 A	D	4	18 – 24 AWG	.75 – .25 mm²	Plug	Pin	Compliant with Exemptions
M12,FEMALE,RA,A CODE,4P,PG7,GOLD Buy on te.com	T4112001041-000	Product Drawing 3D PDF	4	4 A	A	4	18 – 24 AWG	.75 – .25 mm²	Receptacle	Socket	Compliant with Exemptions

Features

Please review product documents or contact us for the latest agency approval information.

Configuration Features

Factory Installed Backshell No
Keying & Polarized Position Locations A, D
Number of Positions 5, 4, 3, 8, 2
Number of Power Positions 0
Number of Signal Positions 5, 4, 3, 2, 8
Contacts Preloaded Yes

Product Type Features

Assembly Requirement Factory Assembled
Assembly Type Electrical Connector
Connector Product Type Connector Assembly
Circular Connector Shell Type All Plastic
Connector System Cable-to-Cable
Sealable Yes
Connector & Contact Terminates To Wire & Cable
Circular Connector Type Receptacle, Plug
Shell Type Plastic

Electrical Characteristics

Operating Voltage (VDC) 250, 60, 30
Operating Voltage (VAC) 60, 30, 250

Body Features

O-Ring Material Silicone
Environmental Protection Type Elastomer Sealed
Primary Product Color Black
Feedthrough Type No, Yes
Peripheral Seal Material Silicone
Environmental Protection IP67
Shell Plating Material Unplated
Shell Base Material Plastic
Circular Connector Insulation Material Type Polyamide 66 GF25
Hermetically Sealed Yes

Operation/Application

Durability Rating (Cycles) 100
Circuit Application Signal
Shielded No

Usage Conditions

IP Dust Sealing Level 6
IP Water Sealing Level IP67
Operating Temperature Range -40 – 85 °C [ -40 – 185 °F ]

Mechanical Attachment

Mating Retention Type Threaded Coupling
Mating Alignment With
Connector Mounting Type Cable Mount (Free-Hanging)
Polarization Code B, A, D
Mating Alignment Type Keyed

Other

Field Serviceable Yes
Position Locations Omitted 0
EU RoHS Compliance Compliant with Exemptions
EU ELV Compliance Compliant, Compliant with Exemptions

Industry Standards

UL Flammability Rating UL 94HB

Termination Features

Termination Method to Wire & Cable Screw Terminal

Packaging Features

Packaging Quantity 1

Contact Features

Contact Current Rating (Max) (A) 2, 4
Reverse Gender Yes
Circular Connector Contact Type Pin, Socket

Housing Features

Circular Connector Shell Size 20

Dimensions

Wire Size (mm²) .5 – .25, .75 – .25
Wire Size (AWG) 18 – 24, 20 – 24

Reference Number

TE Internal Number CAT-C73765-M1E
