CoolSplice Quick Connect Splice

CoolSplice Quick Connect Splice-CAT-C779-Q402
  • CoolSplice
|
  • CoolSplice Connectors
CoolSplice Connectors are IPx8 rated in-line splices suitable for outdoor applications. Wire termination is done independently by inserting a wire into the end of the connector and pushing down the color coded button with a standard pair of pliers.
More Less

Product Features

  • Splice Type : Butt Splice

  • Wire Size (AWG): 22 – 20, 18, 16 – 18, 12 – 14, 14 – 16

  • Wire Size (mm²): .75 – .82, .75, 2.5 – 1.5, 4 – 2.5, .34 – .52, 1.5 – .75

  • Sealable : No, Yes

  • Splice Capacity : 2, 4

Available from

LADD Inc
Overview

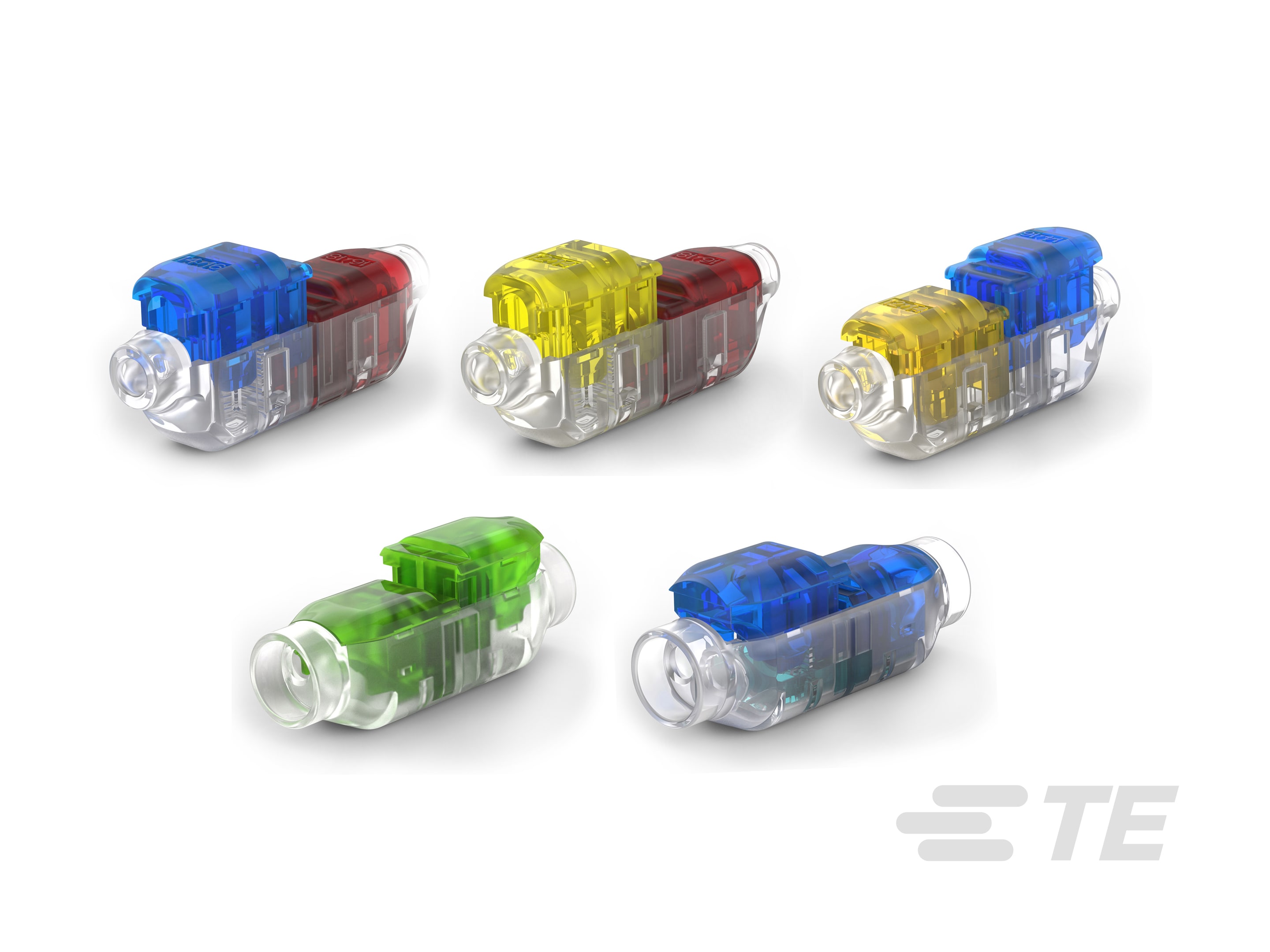

CoolSplice connectors elegantly combine reliability with ease of termination. No need for special tooling; a common pair of pliers is used to pushbutton terminate insulated wires into an insulation displacement crimp contact. Suitable for splicing 22 AWG to 12 AWG (0.34 mm2 - 4.0 mm2) solid and stranded wire, the CoolSplice connectors enable an industry proven reliable connection. Wires are terminated independently for ease of use, and this feature allows for factory pre-termination of one wire and field termination of the second during installation.

All CoolSplice connectors offer a gelfilled sealed version of the standard product extending use of CoolSplice into harsh environment applications requiring ingress protection from the elements. A thoughtful design includes a clear body material for visual inspection of the termination and to distinguish between our standard and sealed product.



Download the relevant product flyer and connect with us for more information and samples.

CoolSplice connectors Standard series

  • Flyer: CoolSplice connector Standard series

    The CoolSplice connectors are easy to terminate, and suitable for splicing 22 AWG to 18 AWG (0.34 mm2 - 0.75 mm2) solid and stranded wire. Through a push button and Insulation Displacement Technology (IDC), a common pair of pliers is used to terminate insulated wires making special tooling unnecessary and installation easy and fast. The CoolSplice connectors provide a reliable connection visually confirmed through the clear sidewall.

  • Product Drawing: CoolSplice connector Standard series

CoolSplice connectors Large Wire series

Applications

  • Roadway, Street and Area Lighting
  • Signs and Building Façade Lighting
  • Indoor Lighting Fixtures
  • Wiring Harness Field Repairs
  • Audio speaker connections
  • Lighting in furniture
  • Commercial refrigeration lighting
  • Display and cabinet lighting
  • Bridge and Tunnel Lighting
  • Security and alarm systems
  • Domotics (home automation)
  • Wide range of other applications

Key Benefits

  • Easy factory or field installation using independent push button termination for left and right side of the connector
  • Save installation time and eliminate the need to pre-strip wires with insulation displacement technology (IDC)
  • Save installation time through a simple push button termination
  • Enable a substantially waterproof solution with an IPX5, IPX7 and IPX8 (2 hours, 1m under water) rated splice
  • Terminates 22 AWG to 12 AWG (0.34 mm2 - 4.0 mm2) solid and stranded wire
  1. CoolSplice Connectors (English)

TE Connectivity’s CoolSplice Connectors are IPx8 rated in-line splices suitable for outdoor applications. Wire termination is done independently by inserting a wire into the end of the connector and pushing down the color coded button with a standard pair of pliers. The connector is side-by-side stackable, enabling multi-position configurations.

CoolSplice
Features

Please review product documents or contact us for the latest agency approval information.

Electrical Characteristics

  • Operating Voltage (VDC) 400

  • Operating Voltage (V) 600

  • Operating Voltage (VAC) 600

  • Current Rating (A) 15, 20, 5

Body Features

  • Button Color  Yellow, Red, Green, Blue

  • Splice Features  End Feed

  • Primary Product Color  Clear

Industry Standards

  • UL Flammability Rating  UL 94V-0, UL 94V-2

  • Compatible With Agency/Standards Products  IEC, UL

  • Compatible With Approved Standards Products  UL 2459, IEC 60988-2-3, UL 1977, UL 486C

  • Government Qualified Splice  No

Product Type Features

  • Splice Type  Butt Splice

  • Sealable  No, Yes

  • Compatible With Discrete Wire Type  Solid, Stranded

  • Wire Insulation Support Retention Type  Insulation Support

Configuration Features

  • Splice Capacity  2, 4

  • Compatible With Wire & Cable Type  Discrete Wire

Contact Features

  • Contact Base Material  Phosphor Bronze

Mechanical Attachment

  • Wire Insulation Support  With

Dimensions

  • Wire Size (AWG) 22 – 20, 18, 16 – 18, 12 – 14, 14 – 16

  • Wire Size (mm²) .75 – .82, .75, 2.5 – 1.5, 4 – 2.5, .34 – .52, 1.5 – .75

  • Compatible Insulation Diameter Range (mm) 1.75 – 2.85, 3.5, 2.85, 4, 4.5

  • Compatible Insulation Diameter Range (in) .138, .177, .157, .112, .069 – .112

  • Barrel Inside Diameter  4.5 mm [ .175 in ]

  • Product Length (mm) 36.4, 48

  • Product Length (in) 1.89, 1.433

Usage Conditions

  • Insulation Option  Fully Insulated

  • Operating Temperature Range  -40 – 105 °C [ -40 – 221 °F ]

Operation/Application

  • Compatible With Wire Base Material  Copper

Packaging Features

  • Packaging Method  Box

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-C779-Q402
