View products below to see detailed pricing

Cold Shrink Terminations

RAYCHEM

Our Raychem CST Cold Shrink Termination is designed for polymeric cables up to 42 kV following CENELEC HD 629.1, and up to 35 kV accordingly to IEEE 404. The CST is made of liquid silicone with high tracking and split resistance, which makes it suitable for use in indoor and outdoor applications CSTI/O.

More Less

Product Features

Product Availability : Europe, Middle East & Africa, Asia, Americas, Australia, New Zealand & Pacific Islands, China
Installation Instruction : English, German
Installation Technology : Cold Applied, Cold Shrink, Stress Cone
Voltage Class (kV): ≤ 15, ≤ 24, ≤ 8, ≤ 35, ≤ 36, ≤ 28, ≤ 17.5
Cable Shield Style : Tape, JCN, Wire, Copper Tape, Copper Wire

Available from

Product	TE Part #	Documents	Product Availability	Installation Instruction	Installation Technology	Voltage Class	Cable Shield Style	Number of Cores	Compatible Conductor Range	Compatible Insulation Diameter Range	Armoring Material	Number of Sheds	Shed Inside Diameter	Sheath Outside Diameter	Termination Length	Length (Installed)	Compatible Conductor Diameter Range	Power Component Options	EU RoHS Compliance	EU ELV Compliance
CSTO-282G	EH8276-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	Tape	1	1 – 3/0 AWG/kcmil	16.5 – 27. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTI-154G	EK7014-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	Tape	1	600 – 1250 AWG/kcmil	32.5 – 52. mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	-	-
CSTO-284J-AL8	EM8908-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	JCN	1	750 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	-	-
CSTI-354G	EN0506-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	Tape	1	750 – 2000 AWG/kcmil	43.2 – 64. mm	-	8	-	73 – 100 mm	600 mm	600 mm	-	-	-	-
CSTO-353JP-CL7	EP1582-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	JCN	1	500 AWG/kcmil	32.4 – 48. mm	-	8	-	135 – 165 mm	600 mm	600 mm	-	-	-	-
CSTI-10-1840-T	2259766-3	Product Drawing	China	-	Stress Cone	≤ 17.5 kV	Tape	3	-	16 – 28 mm	Steel Tape	3	48 mm	95 mm	304 mm	1000 mm	-	-	Compliant	Compliant
CSTO-152J-CP0	EJ0441-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	#2 AWG/kcmil	16.5 – 27. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	-
CSTI-353G	EN0230-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	Tape	1	250 – 1000 AWG/kcmil	32.4 – 48. mm	-	8	-	73 – 100 mm	600 mm	600 mm	-	-	-	-
CSTI-5152-ML-7-17	EF1625-011	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	Cold Applied, Cold Shrink	≤ 24 kV	Wire	1	250 – 500 AWG/kcmil	21.59 – 36.83 mm	-	3	49 – 75 mm	58 mm	-	-	-	Mechanical Connectors Included, Mechanical Lug Included (Shield), Mechanical Lug Included (M16, Conductor)	Compliant with Exemptions	Compliant with Exemptions
CSTI-283J	EK7023-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	JCN	1	2/0 – 350 AWG/kcmil	24.5 – 34.5 mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	-	-
CSTO-152G-SL0	EP7244-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	Tape	1	#2 – 4/0 AWG/kcmil	16.5 – 27. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	-	-
CSTI-5132-ML-4-13	EF1623-011	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Cold Applied, Cold Shrink	≤ 24 kV	Wire	1	1000 – 1250 AWG/kcmil	37.84 – 55.88 mm	-	3	49 – 75 mm	50 mm	-	-	-	Mechanical Lug Included (M12, Conductor), Mechanical Connectors Included, Mechanical Lug Included (Shield)	Compliant with Exemptions	Compliant with Exemptions
CSTO-3131-GB01	CZ4070-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	-	-	1	-	-	-	-	-	-	-	-	-	-	Compliant	Compliant
CSTO-154J-CL9	EJ3222-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	1000 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTI-352J	EN0455-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	JCN	1	1/0 – 350 AWG/kcmil	24.3 – 36. mm	-	8	-	73 – 100 mm	600 mm	600 mm	-	-	-	-
CSTO-352G	EN0507-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	Tape	1	1/0 – 350 AWG/kcmil	32.4 – 42.8 mm	-	8	-	135 – 165 mm	600 mm	600 mm	-	-	-	-
CSTO-354J-SL3	EN3684-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	JCN	1	600 – 1000 AWG/kcmil	43.2 – 64. mm	-	8	-	135 – 165 mm	600 mm	600 mm	-	-	-	-
CSTO-153J-AL6	EP8972-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	350 AWG/kcmil	24.5 – 34.5 mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	-	-
CSTI-284J-CL8	ER2229-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	JCN	1	750 AWG/kcmil	32.5 – 52. mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	-	-
CSTI-3-353G-CL8	ES3427-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 35 kV	Tape	3	750 AWG/kcmil	32.4 – 48. mm	-	8	-	73 – 100 mm	600 mm	600 mm	-	-	Compliant	Compliant
CSTO-154J-AL9	EP7073-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	1000 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	-	-
CSTO-154J	EH8275-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	600 – 1250 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTO-282J-CP2	EJ0450-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	JCN	1	1/0 AWG/kcmil	16.5 – 27. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTO-153G-CL7	EJ0801-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	Tape	1	500 AWG/kcmil	24.5 – 34.5 mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTI-354J	EN0505-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	JCN	1	750 – 2000 AWG/kcmil	43.2 – 64. mm	-	8	-	73 – 100 mm	600 mm	600 mm	-	-	Compliant	-
CSTO-10-5015-T	2259767-2	Product Drawing	China	-	Stress Cone	≤ 17.5 kV	Tape	3	-	23 – 35 mm	Steel Tape	4	74 mm	72 mm	296 mm	1000 mm	-	-	Compliant	Compliant
CSTO-152G	EH8455-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	Tape	1	#2 – 250 AWG/kcmil	16.5 – 27. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTO-3142-ML-6-17	EP5634-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	-	Wire	1	-	-	-	-	-	-	-	-	-	-	Compliant with Exemptions	Compliant with Exemptions
CSTO-282G-CL1	EJ0807-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	Tape	1	#1 AWG/kcmil	16.5 – 27. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTO-152G-CP3	EP1766-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	Tape	1	2/0 AWG/kcmil	16.5 – 27. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTO-154J-AL8	ER0662-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	750 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	-	-
CSTO-83G	EN5845-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 8 kV	Tape	1	1000 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTOL-154J-SL4	ES3720-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	Wire	1	1250 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant with Exemptions	Compliant with Exemptions
CSTI-10-5015-T	2259766-2	Product Drawing	China	-	Stress Cone	≤ 17.5 kV	Tape	3	#2 – 4/0 AWG/kcmil	16.5 – 27. mm	Steel Tape	3	42 mm	72 mm	296 mm	1000 mm	-	-	Compliant	Compliant
CSTO-153G	EH8456-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	Tape	1	350 – 500 AWG/kcmil	24.5 – 34.5 mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTO-352J-SL1	EN1264-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	JCN	1	#2 – 350 AWG/kcmil	24.3 – 36. mm	-	8	-	135 – 165 mm	600 mm	600 mm	-	-	-	-
CSTO-154G	EH8457-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	Tape	1	600 – 1250 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	-
CSTO-154G-CL8	EJ0802-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	Tape	1	750 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTO-283J-AL5	EM8905-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	JCN	1	4/0 AWG/kcmil	24.5 – 34.5 mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	-	-
CSTO-353J-SL2	EN1265-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	JCN	1	350 – 750 AWG/kcmil	32.4 – 48. mm	-	8	-	135 – 165 mm	600 mm	600 mm	-	-	-	-
CSTO-353J-SL3	EN1266-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	JCN	1	600 – 1000 AWG/kcmil	32.4 – 48. mm	-	8	-	135 – 165 mm	600 mm	600 mm	-	-	-	-
CSTO-153J-CL7	ES2064-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	500 AWG/kcmil	24.5 – 34.5 mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTO-152J	EH8273-000		Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	#2 – 250 AWG/kcmil	16.5 – 27. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTO-283G-CL5	EJ0811-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	Tape	1	4/0 AWG/kcmil	24.5 – 34.5 mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTO-284G-CL9	EJ0815-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	Tape	1	1000 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTI-6132-ML-4-13	EK7722-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	Wire	1	-	13.46 – 20.32 mm	-	7	73 – 100 mm	46 mm	-	-	-	Mechanical Lug Included (M12, Conductor), Mechanical Connectors Included, Mechanical Lug Included (Shield)	-	-
CSTI-353J	EN0504-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	JCN	1	250 – 1000 AWG/kcmil	32.4 – 48. mm	-	8	-	73 – 100 mm	600 mm	600 mm	-	-	-	-
CSTI-5142-ML-6-13	EN2659-000	Product Drawing	Europe, Middle East & Africa	English, German	Cold Shrink	≤ 24 kV	Copper Wire	1	500 – 1250 AWG/kcmil	26.92 – 43.18 mm	-	3	-	25.8 – 49 mm	372.6 mm	400 mm	13.9 – 24.6 mm	Mechanical Lug Included (M12, Conductor), Mechanical Lug Included (Shield)	-	-
CSTI-152J-CP1	ER0187-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	#1 AWG/kcmil	16.5 – 27. mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	-	-
CSTI-3131-GB01	CZ4069-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	-	-	1	-	18 – 26 mm	-	-	-	-	-	-	-	-	Compliant	Compliant
CSTO-5122-ML-1-13	EF1626-011	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Cold Applied, Cold Shrink	≤ 24 kV	Wire	1	-	42.6 – 49.2 mm	-	4	80 – 105 mm	34 mm	-	-	-	Mechanical Lug Included (M12, Conductor), Mechanical Connectors Included, Mechanical Lug Included (Shield)	Compliant with Exemptions	Compliant with Exemptions
CSTO-284G-CL7	EJ0813-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	Tape	1	500 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTIL-154J	EK7124-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	Wire	1	600 – 1250 AWG/kcmil	32.5 – 52. mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	-	-
CSTI-83G	EN5957-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 8 kV	Tape	1	500 – 750 AWG/kcmil	24.5 – 34.5 mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	-	-
CSTI-282G	EK7018-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	Tape	1	1 – 3/0 AWG/kcmil	16.5 – 27. mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	-	-
CSTO-153J-CP5	EL9273-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	4/0 AWG/kcmil	24.5 – 34.5 mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	-	-
CSTO-284J-AL9	EM8907-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	JCN	1	1000 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	-	-
CSTO-351J	ER6339-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	JCN	1	#1 – 1/0 AWG/kcmil	18.2 – 28. mm	-	8	-	135 – 165 mm	600 mm	600 mm	-	-	-	-
CSTI-284J-AL9-B8	ES1405-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	JCN	1	1000 AWG/kcmil	32.5 – 52. mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	-	-
CSTO-282J	EH7831-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	JCN	1	1 – 3/0 AWG/kcmil	16.5 – 27. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTO-284J	EH7833-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	JCN	1	500 – 1250 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTI-153J	EK7016-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	350 – 500 AWG/kcmil	24.5 – 34.5 mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	-	-
CSTO-6122-ML-1-13	EK7725-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	Wire	1	-	42.6 – 49.2 mm	-	8	135 – 165 mm	42 mm	-	-	-	Mechanical Lug Included (M12, Conductor), Mechanical Connectors Included, Mechanical Lug Included (Shield)	-	-
CSTO-6132-ML-2-13	EK9348-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	Wire	1	-	49.2 – 58.8 mm	-	8	135 – 165 mm	46 mm	-	-	-	Mechanical Lug Included (M12, Conductor), Mechanical Connectors Included, Mechanical Lug Included (Shield)	-	-
CSTO-153J-SL1	EK9872-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	#2 – 350 AWG/kcmil	24.5 – 34.5 mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	-	-
CSTO-353G	EN0508-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	Tape	1	250 – 1000 AWG/kcmil	32.4 – 48. mm	-	8	-	135 – 165 mm	600 mm	600 mm	-	-	-	-
CSTI-152G-CL0	ES2995-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	Tape	1	#2 AWG/kcmil	16.5 – 27. mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTI-152J	EK7015-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	2 – 250 AWG/kcmil	16.5 – 27. mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	-	-
CSTOL-284J	EK7228-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	-	1	500 – 1250 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	-	-
CSTO-153G-SL1	EL5248-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	Tape	1	#2 – 350 AWG/kcmil	24.5 – 34.5 mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	-	-
CSTO-152J-SL0	ER0111-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	#2 – 4/0 AWG/kcmil	16.5 – 27. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	-	-
CSTO-3121-GB01	CZ4068-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	-	-	1	-	-	-	-	-	-	-	-	-	-	Compliant	Compliant
CSTO-353J	EN0228-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	JCN	1	250 – 1000 AWG/kcmil	32.4 – 48. mm	-	8	-	135 – 165 mm	600 mm	600 mm	-	-	-	-
CSTO-152J-AL6	ER0663-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	350 AWG/kcmil	16.5 – 27. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	-	-
CSTI-152G-CL5	ES2996-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	Tape	1	4/0 AWG/kcmil	16.5 – 27. mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTI-12-7018-SC-T	2259523-2	Product Drawing	Americas	English	Cold Applied, Cold Shrink	-	-	1	4/0 – 500 AWG/kcmil	24.5 – 34.5 mm	-	-	-	-	-	-	-	-	Compliant	Compliant
CSTI-6162-ML-8-21	EK7724-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	Wire	1	2 – 250 AWG/kcmil	16.25 – 27.68 mm	-	7	73 – 100 mm	75 mm	-	-	-	Mechanical Connectors Included, Mechanical Lug Included (Shield)	-	-
CSTI-154J-CL8	EM9583-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	750 AWG/kcmil	32.5 – 52. mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTO-352J-CP5	ES3307-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	JCN	1	4/0 AWG/kcmil	24.3 – 36. mm	-	8	-	135 – 165 mm	600 mm	600 mm	-	-	Compliant	Compliant
CSTO-284G	EH8278-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	Tape	1	500 – 1250 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTI-152G	EK4346-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	Tape	1	#2 – 250 AWG/kcmil	16.5 – 27. mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	-	-
CSTI-284G	EK7021-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	Tape	1	500 – 1250 AWG/kcmil	32.5 – 52. mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	-	-
CSTOL-154J-CL8	EM8284-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	-	1	750 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTO-152J-CP3	EJ0444-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	2/0 AWG/kcmil	16.5 – 27. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTI-6142-ML-6-17	EK7005-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	Wire	1	4/0 – 500 AWG/kcmil	21.59 – 36.83 mm	-	7	73 – 100 mm	56 mm	-	-	-	Mechanical Connectors Included, Mechanical Lug Included (Shield), Mechanical Lug Included (M16, Conductor)	-	-
CSTOL-284G	EK7029-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 28 kV	-	1	500 – 1250 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	Compliant	Compliant
CSTOL-154G-SL2	EP2479-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	-	1	350 – 750 AWG/kcmil	32.5 – 52. mm	-	4	-	80 – 105 mm	380 mm	380 mm	-	-	-	-
CSTIL-154G-SL2	EP2480-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	Copper Tape	1	350 – 750 AWG/kcmil	32.5 – 52. mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	-	-
CSTOS-152J	ER6393-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	Wire	1	#2 – 250 AWG/kcmil	16.5 – 27. mm	-	2	-	49 – 75 mm	254 mm	254 mm	-	-	Compliant	-
CSTI-10-5015-SC-T	2197666-2	Product Drawing	China	-	Stress Cone	≤ 17.5 kV	Tape	1	4/0 – 500 AWG/kcmil	24.5 – 34.5 mm	-	3	42 mm	39 mm	296 mm	1000 mm	-	-	Compliant	Compliant
CSTI-3141-GB01	CZ4071-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	-	-	1	1 – 500 AWG/kcmil	21.59 – 36.83 mm	-	-	-	-	-	-	-	-	Compliant	Compliant
CSTI-5122-ML-1-13	EF1622-011	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	Cold Applied, Cold Shrink	≤ 24 kV	Wire	1	500 – 1250 AWG/kcmil	37.84 – 55.88 mm	-	3	49 – 75 mm	34 mm	-	-	-	Mechanical Lug Included (M12, Conductor), Mechanical Connectors Included, Mechanical Lug Included (Shield)	Compliant with Exemptions	Compliant with Exemptions
CSTIL-154G	EK7026-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	Copper Tape	1	600 – 1250 AWG/kcmil	32.5 – 52. mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	Compliant	-
CSTO-6152-ML-7-13	EK7727-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	Wire	1	-	-	-	8	135 – 165 mm	63 mm	-	-	-	Mechanical Lug Included (M12, Conductor), Mechanical Connectors Included, Mechanical Lug Included (Shield)	-	-
CSTO-352J	EN0453-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	JCN	1	1/0 – 350 AWG/kcmil	32.4 – 42.8 mm	-	8	-	135 – 165 mm	600 mm	600 mm	-	-	-	-
CSTI-82G	EN5956-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 8 kV	Tape	1	2/0 – 350 AWG/kcmil	16.5 – 27. mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	-	-
CSTO-354J-SL4	EN1256-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	JCN	1	1250 AWG/kcmil	43.2 – 64. mm	-	8	-	135 – 165 mm	600 mm	600 mm	-	-	-	-
CSTO-352JP-CP2	EP1618-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 36 kV	JCN	1	1/0 AWG/kcmil	24.3 – 36. mm	-	8	-	135 – 165 mm	600 mm	600 mm	-	-	-	-
CSTO-10-2535-T	2259767-1	Product Drawing	China	-	Stress Cone	≤ 17.5 kV	Tape	3	1/0 – 250 AWG/kcmil	21.59 – 36.83 mm	Steel Tape	4	70 mm	54 mm	289 mm	1000 mm	-	-	Compliant	Compliant
CSTI-154J	EK7017-000	Product Drawing	Americas	English	Cold Applied, Cold Shrink	≤ 15 kV	JCN	1	600 – 1250 AWG/kcmil	32.5 – 52. mm	-	4	-	49 – 75 mm	380 mm	380 mm	-	-	-	-

Overview

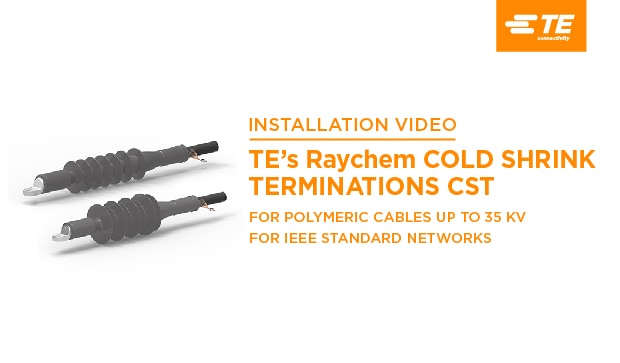

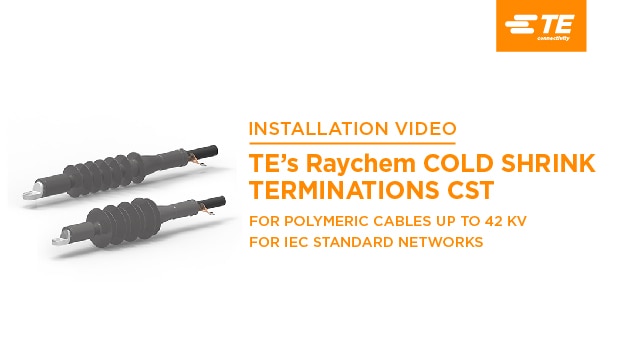

Our Raychem CST Cold Shrink Terminations are available for indoor (CSTI) and outdoor (CSTO) applications.

Our Raychem CST Cold Shrink Terminations are made from high performance, liquid silicone rubber material which is specially formulated for high tracking and split resistance.

The extra-long stress cone aids in correct positioning, and the integrated void-filling mastic eliminates the need for silicone grease. Sealing mastic for the lug end is built into the expanded termination, eliminating the need for additional sealing tapes. These terminations offer a reliable, fast and easy-to-install system to help ensure trouble-free service and to maintain high network reliability. The key components are pre-expanded on one holdout system, allowing neat installation in compact environments on the prepared cable.

Our range-taking, shear bolt mechanical lugs support reliable installation and service, and can be supplied with the kit.

The Cold Shrink Termination components have full traceability to raw materials and are in compliance with the following international standards: IEEE-48, IEC 61238-1, GB 9327, GB 12706.4, CENELEC HD 629.1 (includes IEC, BS, VDE and other international specifications).

Key Features

Easy to install spiral holdout
Chemical-resistant and fungus-resistant
High weathering, UV and ozone resistance
Hydrophobic silicone material to repel water

Non-flammable
Extra-long, integrated geometric stress control and void-filling mastic to reduce termination positioning errors
Excellent electrical properties, including good tracking resistance and high dielectric strength

Cold Shrink Terminations

Improving Grid Connectivity

Underground Power Networks

Our Power Cable Terminations

Discover our Raychem Terminations for Power Cables

FAQ

Frequently Asked Questions

Question: What are the primary applications of TE’s Raychem Cold Shrink Terminations?

Answer: Our Raychem Cold Shrink Terminations provide an essential connection between medium voltage cables to transformers, air-insulated substations, overhead lines or busbars. They are suitable for indoor (CSTI) and outdoor (CSTO) applications. The outdoor version of our cold shrink termination comes with sheds for increased creepage distance.

Question: Does TE offer installation training for the Cold Shrink Terminations?

Answer: Yes, our Cold Shrink Terminations are part of our training program. Visit TE.com/trainingcenter to learn more.

Question: What type of cable conductor are the Cold Shrink Terminations suitable for use with?

Answer: Our Cold Shrink Terminations are designed for use with polymeric cables up to 35 kV.

Question: What are the Cold Shrink Terminations made of?

Answer: The body of the Cold Shrink Termination is made of a liquid silicone rubber specially formulated for excellent tracking and split resistance. The silicone material also offers an optimal mechanical expansion ratio, allowing a wide application range for the termination. The termination body is delivered in a pre-expanded condition on a spiral holdout system allowing installation in compact environments on prepared cable.

Question: Are the Cold Shrink Terminations sold in kits?

Answer: Yes, our Cold Shrink Terminations are sold in kits. The kit can include the termination body, the range taking lugs, bracket and grounding. The optional cable lug included in the kits can be a shear bolt lug, shear bolt pin terminal, compression lug, or compression pin terminal.

Question: Which voltage range do the Cold Shrink Terminations cover?

Answer: Our Terminations are qualified up to 42 kV following CENELEC HD 629.1, and up to 35 kV accordingly to IEEE 404.

Question: Do the Cold Shrink Terminations have integrated sealing mastic?

Answer: Yes, the sealing mastic for the lug end is an integral part of the expanded termination, which eliminates the need for additional sealing tapes.

Question: Do the Cold Shrink Terminations have integrated geometrical stress control?

Answer: Yes, in addition to the sealing mastic our Cold Shrink Terminations also have an electrical stress control deflector fully integrated within the silicone termination bodies. This conductive stress cone with an exactly defined geometrical design over the screen cut area provides excellent electrical stress control.

Features

Please review product documents or contact us for the latest agency approval information.

Industry Standards

Pollution Level (IEC 60815) II, III
Compatible With Approved Standards Products IEEE 48, IEC 60502-4, HD CENELEC 629.1, GB/T 12706.4, CENELEC HD 629.1

Product Type Features

Shelf Life 3 Years
Installation Technology Cold Applied, Cold Shrink, Stress Cone
Cable Shield Style Tape, JCN, Wire, Copper Tape, Copper Wire
Termination Length (mm) 304, 254, 309, 380, 372.6, 296, 600, 289
Power Component Options Mechanical Lug Included (M16, Conductor), Mechanical Lug Included (Shield), Mechanical Lug Included (M12, Conductor), Mechanical Connectors Included

Packaging Features

Packaging Quantity 3, 1

Operation/Application

Power Component Application Type Indoor, Outdoor

Usage Conditions

Operating Temperature Range (°C) -40 – 40

Product Availability

Product Availability Europe, Middle East & Africa, Asia, Americas, Australia, New Zealand & Pacific Islands, China

Other

Installation Instruction English, German
EU RoHS Compliance Compliant, Compliant with Exemptions
EU ELV Compliance Compliant with Exemptions, Compliant

Electrical Characteristics

Voltage Class (kV) ≤ 15, ≤ 24, ≤ 8, ≤ 35, ≤ 36, ≤ 28, ≤ 17.5

Configuration Features

Number of Cores 1, 3

Dimensions

Compatible Conductor Range (AWG/kcmil) 250 – 1000, 250 – 500, 2 – 250, 3/0, 750, 500 – 1250,
Compatible Cable Cross-Section Range (mm²) 25 – 95, 25 – 630, 500 – 630, 800 – 1000, 120 – 400, 50 – 1000
Compatible Insulation Diameter Range (mm) 13.46 – 20.32, 16 – 28, 32.4 – 48., 32.4 – 42.8, 24.5 – 28.4, 26.92 – 43.18, 16 – 23, 37.84 – 55.88, 42.6 – 49.2, 16.25 – 27.68, 24.5 – 34.5, 32.5 – 52., 21.59 – 36.83, 49.2 – 58.8, 22 – 37, 43.2 – 64., 23 – 35, 16.5 – 27., 18.2 – 28., 27.8 – 33.5, 18 – 26, 24.3 – 36.
Compatible Insulation Diameter Range (in) .65 – 1.06, .97 – 1.35, .62 – .9, .708 – 1.023, .95 – 1.41, 1.27 – 1.89, .72 – 1.1, 1.937 – 2.314, 1.06 – 1.7, 1.094 – 1.318, .64 – 1.09, 1.677 – 1.937, .53 – .8, .964 – 1.118, .85 – 1.45, .9 – 1.37, 1.275 – 1.685, 1.28 – 2.04, 1.7 – 2.52, 1.49 – 2.2
Shed Inside Diameter (mm) 135 – 165, 42, 80, 74, 48, 86, 80 – 105, 73 – 100, 38, 70, 54, 49 – 75
Shed Inside Diameter (in) 3.385, 3.149, 5.315 – 6.496, 1.889, 1.496, 2.913, 2.874 – 3.937, 1.929 – 2.952, 3.149 – 4.134, 1.653, 2.755, 2.125
Sheath Outside Diameter (mm) 49 – 75, 49, 46, 63, 73 – 100, 102, 56.5, 54, 135 – 165, 25.8 – 49, 50, 75, 56, 80 – 105, 95, 72, 58, 42, 39, 34
Sheath Outside Diameter (in) 1.535, 2.952, 1.811, 2.87 – 3.93, 1.338, 2.125, 1.968, 1.929, 2.834, 3.15 – 4.13, 3.74, 2.283, 4.015, 2.204, 1.92 – 3.11, 1.653, 2.224, 1.92 – 2.95, 2.48, 5.31 – 6.5
Length (Installed) (mm) 600, 1000, 254, 380, 400
Length (Installed) (in) 23.622, 39.37, 10, 14.96
Compatible Conductor Diameter Range (mm) 13.9 – 24.6

Body Features

Insulation Material XLPE/EPR
Number of Sheds 7, 8, 4, 2, 3

Housing Features

Armoring Material Steel Tape

Reference Number

TE Internal Number CAT-CST

Related Materials

Cold Shrink Terminations

Product Features

Product Availability : Europe, Middle East & Africa, Asia, Americas, Australia, New Zealand & Pacific Islands, China

Installation Instruction : English, German

Installation Technology : Cold Applied, Cold Shrink, Stress Cone

Voltage Class (kV): ≤ 15, ≤ 24, ≤ 8, ≤ 35, ≤ 36, ≤ 28, ≤ 17.5

Cable Shield Style : Tape, JCN, Wire, Copper Tape, Copper Wire

Key Features

Cold Shrink Terminations

Improving Grid Connectivity

Our Power Cable Terminations

Frequently Asked Questions

Industry Standards

Pollution Level (IEC 60815) II, III

Compatible With Approved Standards Products IEEE 48, IEC 60502-4, HD CENELEC 629.1, GB/T 12706.4, CENELEC HD 629.1

Product Type Features

Shelf Life 3 Years

Installation Technology Cold Applied, Cold Shrink, Stress Cone

Cable Shield Style Tape, JCN, Wire, Copper Tape, Copper Wire

Termination Length (mm) 304, 254, 309, 380, 372.6, 296, 600, 289

Power Component Options Mechanical Lug Included (M16, Conductor), Mechanical Lug Included (Shield), Mechanical Lug Included (M12, Conductor), Mechanical Connectors Included

Packaging Features

Packaging Quantity 3, 1

Operation/Application

Power Component Application Type Indoor, Outdoor

Usage Conditions

Operating Temperature Range (°C) -40 – 40

Product Availability

Product Availability Europe, Middle East & Africa, Asia, Americas, Australia, New Zealand & Pacific Islands, China

Other

Installation Instruction English, German

EU RoHS Compliance Compliant, Compliant with Exemptions

EU ELV Compliance Compliant with Exemptions, Compliant

Electrical Characteristics

Voltage Class (kV) ≤ 15, ≤ 24, ≤ 8, ≤ 35, ≤ 36, ≤ 28, ≤ 17.5

Configuration Features

Number of Cores 1, 3

Dimensions

Compatible Conductor Range (AWG/kcmil) 250 – 1000, 250 – 500, 2 – 250, 3/0, 750, 500 – 1250,

Compatible Cable Cross-Section Range (mm²) 25 – 95, 25 – 630, 500 – 630, 800 – 1000, 120 – 400, 50 – 1000

Shed Inside Diameter (mm) 135 – 165, 42, 80, 74, 48, 86, 80 – 105, 73 – 100, 38, 70, 54, 49 – 75

Shed Inside Diameter (in) 3.385, 3.149, 5.315 – 6.496, 1.889, 1.496, 2.913, 2.874 – 3.937, 1.929 – 2.952, 3.149 – 4.134, 1.653, 2.755, 2.125

Sheath Outside Diameter (mm) 49 – 75, 49, 46, 63, 73 – 100, 102, 56.5, 54, 135 – 165, 25.8 – 49, 50, 75, 56, 80 – 105, 95, 72, 58, 42, 39, 34

Sheath Outside Diameter (in) 1.535, 2.952, 1.811, 2.87 – 3.93, 1.338, 2.125, 1.968, 1.929, 2.834, 3.15 – 4.13, 3.74, 2.283, 4.015, 2.204, 1.92 – 3.11, 1.653, 2.224, 1.92 – 2.95, 2.48, 5.31 – 6.5

Length (Installed) (mm) 600, 1000, 254, 380, 400

Length (Installed) (in) 23.622, 39.37, 10, 14.96

Compatible Conductor Diameter Range (mm) 13.9 – 24.6

Body Features

Insulation Material XLPE/EPR

Number of Sheds 7, 8, 4, 2, 3

Housing Features

Armoring Material Steel Tape

Reference Number

TE Internal Number CAT-CST

Datasheets & Catalog Pages
