Inside Enclosure: Component To Outside Enclosure, Wire-to-Wire

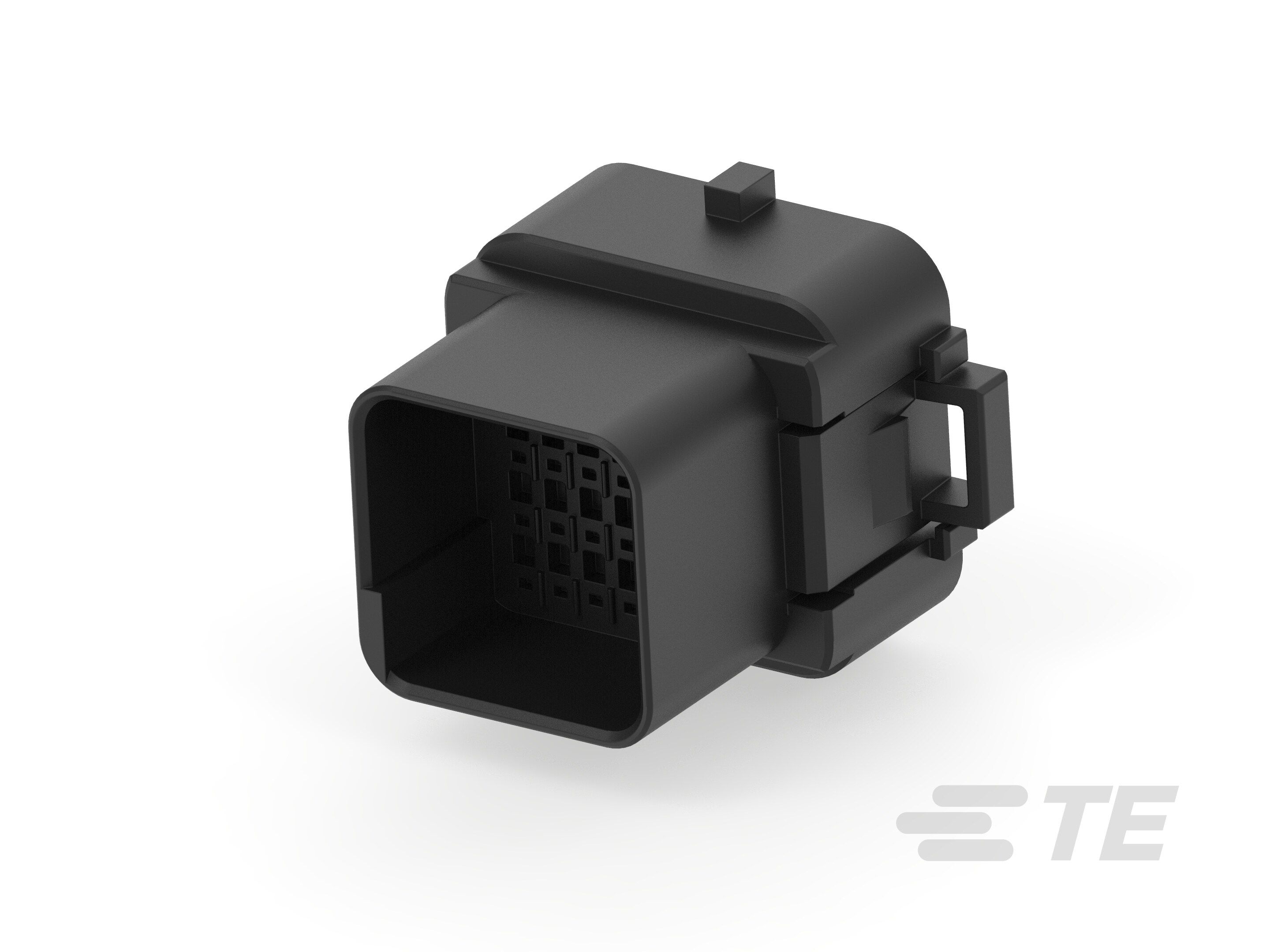

DYNAMIC ME INSIDE HSG-CAT-D9934-M9195A
The Dynamic multi-enclosure inside housing is used for wire-to-wire applications. When used with the Dynamic multi-enclosure outside case and dynamic 1000 and 3000 contacts it provides high density signal transferring.
More Less

Product Features

  • Connector Product Type : Housing

  • Connector & Housing Type : Housing for Male Terminals, Housing for Female Terminals, Receptacle

  • Connector System : Wire-to-Wire, Wire-to-Board

  • Number of Positions : 32, 24, 15

  • Centerline (Pitch) (mm): 3.3, 2

  • Centerline (Pitch) (in): .129, .079

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Product Type  Housing

  • Connector & Housing Type  Housing for Male Terminals, Housing for Female Terminals, Receptacle

  • Connector System  Wire-to-Wire, Wire-to-Board

  • Sealable  No

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Number of Positions  32, 24, 15

  • Number of Rows  4

Body Features

  • Primary Product Color  Black

Termination Features

  • Termination Method to Wire & Cable  Crimp

Mechanical Attachment

  • Mating Retention  With

  • Connector Mounting Type  Cable Mount (Free-Hanging)

Housing Features

  • Centerline (Pitch) (mm) 3.3, 2

  • Centerline (Pitch) (in) .129, .079

Dimensions

  • Row-to-Row Spacing (mm) 3.3, 3.5

  • Row-to-Row Spacing (in) .129, .137

Usage Conditions

  • Operating Temperature Range (°C) -55 – 105, -30 – 105

  • Operating Temperature Range (°F) -67 – 221, -22 – 221

Operation/Application

  • Circuit Application  Signal

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-D9934-M9195A
