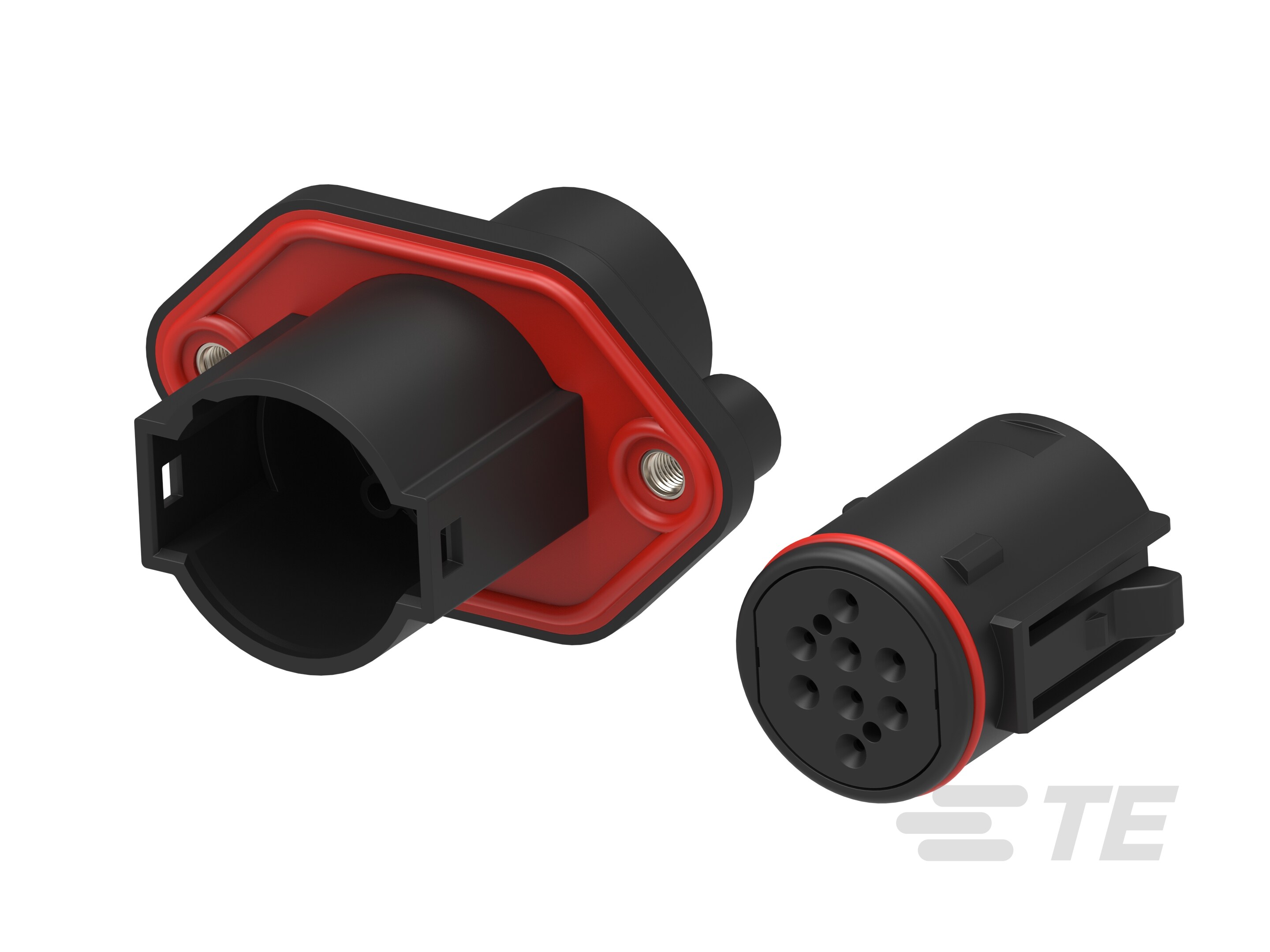

Easy-Lock Plastic Signal Connector
Quick locking plastic signal connectors supporting up to 5A current, available in 18-24 AWG. Used for reliable connections in Industrial Machinery, Battery Energy Storage Systems (BESS) and Warehouse Automation Equipment.
Product Features
-
Number of Positions : 8
-
Connector System : Wire-to-Panel
-
Sealable : Yes
-
Contact Current Rating (Max) (A): 5
-
Circuit Application : Signal
Overview
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Connector System Wire-to-Panel
-
Sealable Yes
-
Circular Connector Type Plug, Receptacle
-
Shell Type Plastic
Configuration Features
-
Number of Positions 8
-
Number of Signal Positions 8
-
Contacts Preloaded No
Electrical Characteristics
-
Operating Voltage (VDC) 63
-
Operating Voltage (VAC) 63
Body Features
-
O-Ring Material Silicone Rubber
-
Circular Connector Insulation Material Type PBT GF
-
Hermetically Sealed Yes
Contact Features
-
Contact Current Rating (Max) (A) 5
-
Circular Connector Contact Type Pin, Socket
Mechanical Attachment
-
Connector Mounting Type Panel Mount
-
Polarization Code A, B, C
-
Mating Alignment Type Keyed
-
Mating Retention With
Dimensions
-
Wire Size (mm²) .82 – .2
-
Wire Size (AWG) 18 – 24
Usage Conditions
-
Operating Temperature Range -40 – 85 °C [ -40 – 185 °F ]
Operation/Application
-
Circuit Application Signal
-
Shielded No
Reference Number
-
TE Internal Number CAT-G83-EPSC
